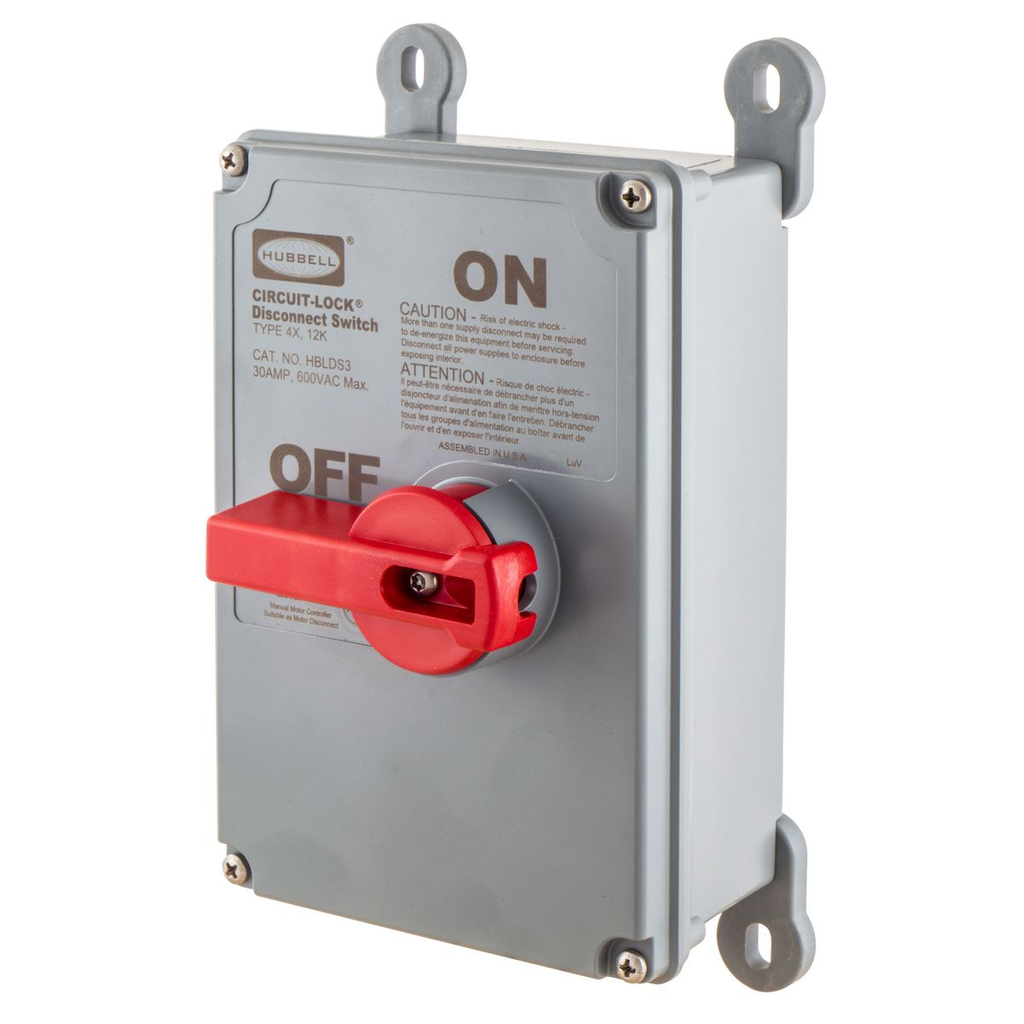

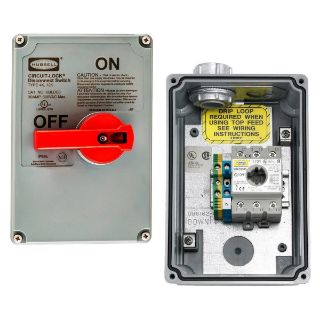

Hubbell Wiring Device-Kellems HBLDS3 HWD Non-Fusible Disconnect Switch 600 VAC 30 A

Product Description

The Wiring Device-Kellems HBLDS3 is a non-fusible enclosed disconnect switch rated for six hundred volts alternating current and thirty amperes. This disconnect switch is designed for heavy-duty industrial applications. It features a lever-operated actuator and a composite enclosure ideal for safety and reliability.

• UL Listed and CSA Certified for safety.
• NEMA 4X/IP67 protection against dust and water.
• Foot-mounted installation for easy access and operation.

Product Highlights

The HBLDS3 disconnect switch is an essential safety device for controlling electrical circuits. It helps in ensuring safe disconnection during maintenance and troubleshooting.

Product Information

Standard Information

• Voltage Rating: 600 VAC
• Current Rating: 30 A

Technical Specifications

• Number of Poles: 3
• Horsepower Rating: 15 hp
• Contact Configuration: 2-Position
• Mounting Type: Foot
• Temperature Rating: -40 to 67 degrees Celsius
• Dimensions: 8.5 inches H x 6 inches W x 4.12 inches D
• Enclosure Type: Composite
• Installation Type: Screw Terminal
