Hubbell Wiring Device-Kellems HBL9367 HWD 1-Phase Grounding Heavy Duty Standard Single Screw Mount Straight Blade Receptacle 250 VAC 50 A 6-50R

Product Description

The Hubbell Wiring Device-Kellems HBL9367 is a heavy-duty receptacle designed for demanding applications. This receptacle features a one-phase grounding design and stands up to heavy use in various settings. The HBL9367 is certified for both commercial and industrial use and meets stringent performance standards.

• Rated for 250 VAC and 50 A
• 2 poles and 3 wires with a NEMA 6-50R rating
• Durable thermoplastic construction for longevity

Product Highlights

The HBL9367 receptacle is ideal for indoor and dry location applications. It withstands extreme temperatures ranging from -40 to 75 degrees Celsius. The device ensures a secure connection with back and side wiring options.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device-Kellems

Technical Specifications

• Voltage Rating: 250 VAC
• Amperage Rating: 50 A
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: 6-50R
• Temperature Rating: -40 to 75 degrees C

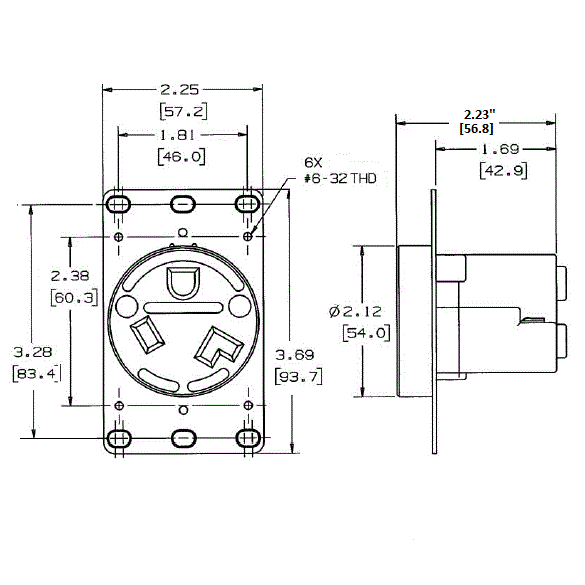

• Dimensions: 3.28 in H x 2.25 in W x 2.23 in D
• Material: Thermoplastic/Composite
