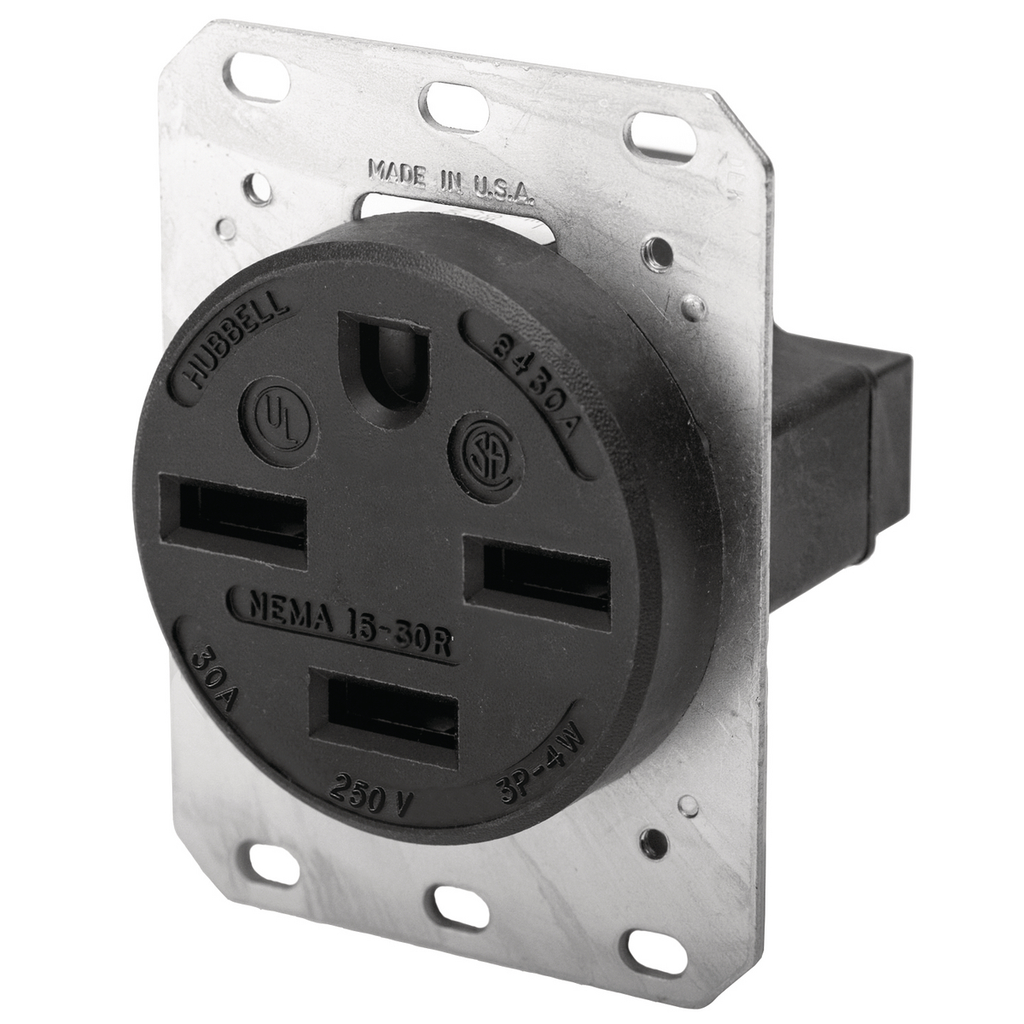

Hubbell Wiring Device-Kellems HBL8430A 30 Amp 250 Volt 3-Pole 4-Wire NEMA 15-30R Black Single Straight Blade Receptacle

Product Description

The Hubbell Wiring Device-Kellems HBL8430A is a heavy-duty receptacle rated for 30 amps at 250 volts. This model features a 3-pole, 4-wire design compliant with NEMA 15-30R standards. It is made of thermoplastic materials and is suitable for a variety of heavy-duty applications.

• Heavy-duty, industrial-grade design.
• Back and side wired screw terminals for easy installation.
• Dielectric strength withstands 2000 volts minimum.

Product Highlights

This Hubbell receptacle is ideal for environments requiring robust electrical connections. It is designed to manage three-phase loads effectively while ensuring reliable grounding.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBL8430A

Technical Specifications

• Voltage Rating: 250 VAC
• Current Rating: 30 A
• Number of Poles: 3 Pole
• Number of Wires: 4-Wire
• Amperage Rating: 30 Amp
• Material: Thermoplastic
• Environmental Conditions: Indoor Dry Unless Protected by Additional Means
• Operating Temperature: -40 degrees C and maximum continuous 75 degrees C
• Wire Size: 12-6 AWG
• NEMA Rating: 15-30R
• Weight: 0.65 lb
