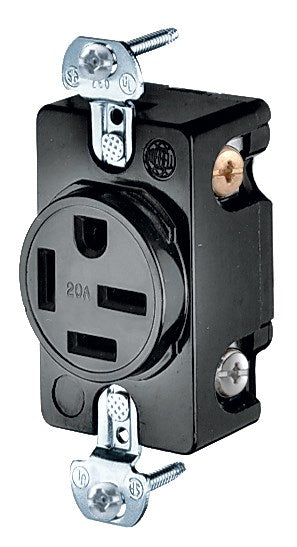

Hubbell Wiring Device-Kellems HBL8420 HWD 3-Phase Heavy Duty Non-Grounding Single Standard Screw Mount Straight Blade Receptacle

Product Description

The Hubbell Wiring Device-Kellems HBL8420 is a three-phase heavy duty non-grounding single standard screw mount straight blade receptacle. It operates at 250 VAC and has a rating of 20 A, designed for industrial applications.

• Suitable for dry location and indoor applications.
• Withstands 2,000 VAC minimum dielectric voltage.
• Constructed from nylon with a steel mounting strap.

Product Highlights

This receptacle features a deep body design with back and side wire/screw terminal. It is constructed to handle a temperature range from -40 to 75 degrees Celsius. Its NEMA rating is 15-20R, making it ideal for various heavy-duty operations.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Type: 3-Phase Heavy Duty Non-Grounding Single Standard

Technical Specifications

• Voltage Rating: 250 VAC
• Amperage Rating: 20 A
• Number of Poles: 4
• Number of Wires: 4
• Horsepower: 3 hp
• Enclosure: IP20
• Dimensions: 2.38 x 1.5 x 1.24 inches
• Material: Composite/Thermoplastic
