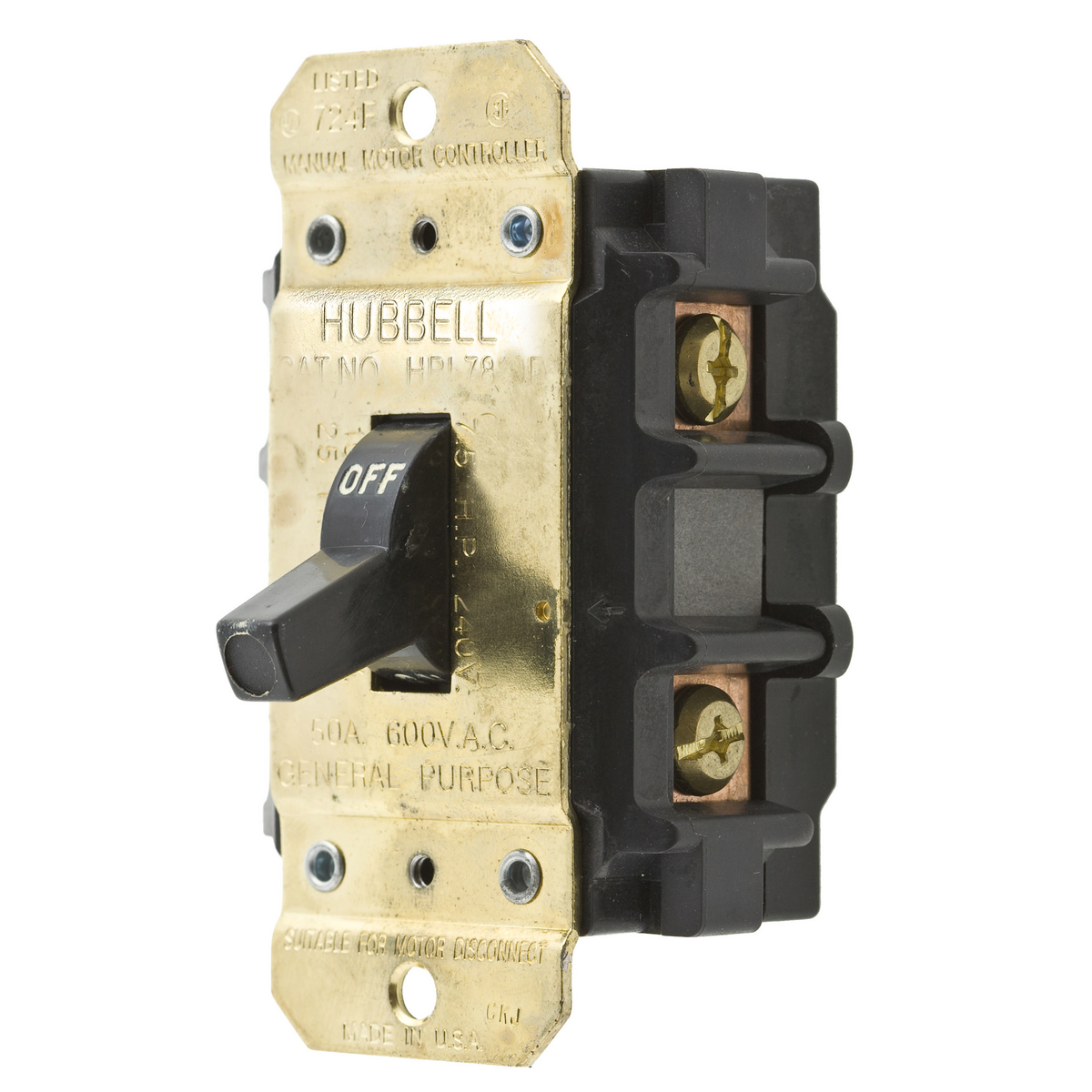

Hubbell Wiring Device-Kellems HBL7852D Hubbell HBL7852D Disconnect 50A 600V 2P DISC SW

Product Description

Hubbell Wiring Device-Kellems HBL7852D is a two-pole manual motor controller designed for disconnecting electrical circuits. It supports a voltage rating of six hundred volts AC and a current rating of fifty amps. This industrial-grade device is suitable for various applications, including motor control and disconnecting from power sources.

• Designed for industrial use and manual control.
• Offers a strong on/off action with a quick-make, slow-break operation.
• Constructed with a thermoset body for superior dielectric strength.

Product Highlights

This controller is ideal for motor starting without overload protection and ensures safety in operating electrical systems.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device

Technical Specifications

• MPN: HBL7852D
• Current Rating: 50 Amp
• Voltage Rating: 600 Volt AC
• Wattage: 30000 Watt
• Material: Stainless Steel
• Number of Poles: 2 Pole
• Phase: Single Phase
• Width: 2.500 inches
• Height: 2.418 inches
• Length: 3.978 inches
• Weight: 0.5 lb
• Operating Temperature: -40 to 75 degrees C
• Rated Horsepower: 15 hp at 600 Volt AC
