HUBBELL WIRING HBL7485 ELECTRIC CABLES

Hubbell Wiring Device-Kellems HBL7485 HWD Twist-Lock 1-Phase Male Midget Non-Grounding Straight Cord Mount Locking Plug 125/250 VAC

SKU: HBL7485
Availability: Out Of Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$14.99
$14.99
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Hubbell Wiring Device-Kellems HBL7485 is a twist-lock locking plug suitable for both commercial and industrial applications. This 1-Phase Male Midget Non-Grounding Straight Cord Mount Locking Plug is designed for voltages up to 125/250 VAC and a maximum current rating of 15 A.

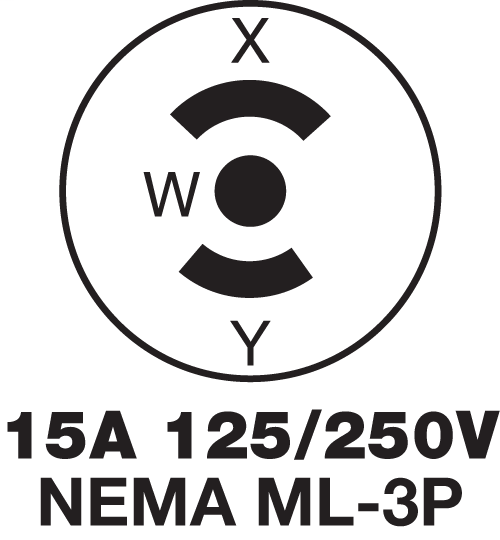

  • ML-3P NEMA rating
  • IP20 enclosure for protection

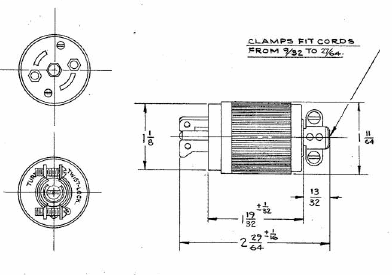

  • Suitable for cords with diameters from 0.281 to 0.421 inches

Product Highlights

This product provides reliability with its durable construction and is designed for easy installation and usage in tight spaces. It meets all required standards and provides a safe connection.

Product Information

Standard Information

  • Brand: Hubbell Wiring Device-Kellems
  • MPN: HBL7485

Technical Specifications

  • Voltage Rating: 125/250 VAC
  • Amperage Rating: 15 A
  • Number of Poles: 3
  • Number of Wires: 3
  • Cord Diameter: 0.281 to 0.421 inches
  • Temperature Rating: -40 to 75 degrees C
  • Material: Composite
  • Enclosure: IP20
  • Approvals: RoHS Compliant, UL 498, CSA C22.2 No. 42
HUBBELL WIRING HBL7485 ELECTRIC CABLES

Vendor: HUBBELL WIRING

Hubbell Wiring Device-Kellems HBL7485 HWD Twist-Lock 1-Phase Male Midget Non-Grounding Straight Cord Mount Locking Plug 125/250 VAC

$14.99

Vendor: HUBBELL WIRING

Hubbell Wiring Device-Kellems HBL7485 HWD Twist-Lock 1-Phase Male Midget Non-Grounding Straight Cord Mount Locking Plug 125/250 VAC

$14.99
