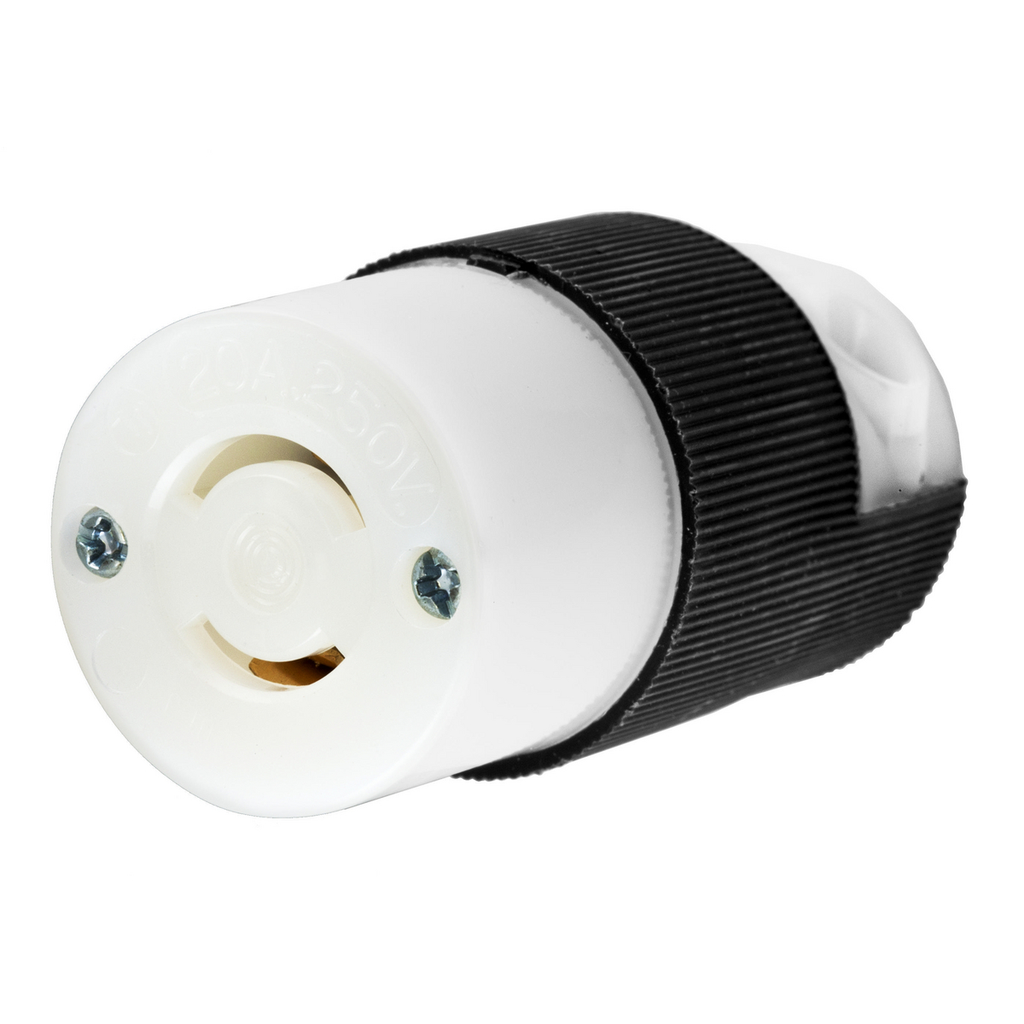

Hubbell Wiring Device-Kellems HBL7101C HWD Locking Connector Body 20 Amp 250 Volt 2-Pole

Product Description

The Hubbell Wiring Device-Kellems HBL7101C is a female heavy duty insulated non-grounding standard locking connector. It operates at 250 VAC and 20 A, suitable for various industrial applications.

• IP20 enclosure rating for protection against solid objects
• Durable composite material construction
• Pressure screw terminal connection for reliable performance

Product Highlights

This locking connector is designed for heavy duty industrial applications, delivering dependable service through its robust construction and secure locking mechanisms.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Catalog Number: HBL7101C

Technical Specifications

• Voltage Rating: 250 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 2
• Temperature Rating: -40 to 75 degrees C

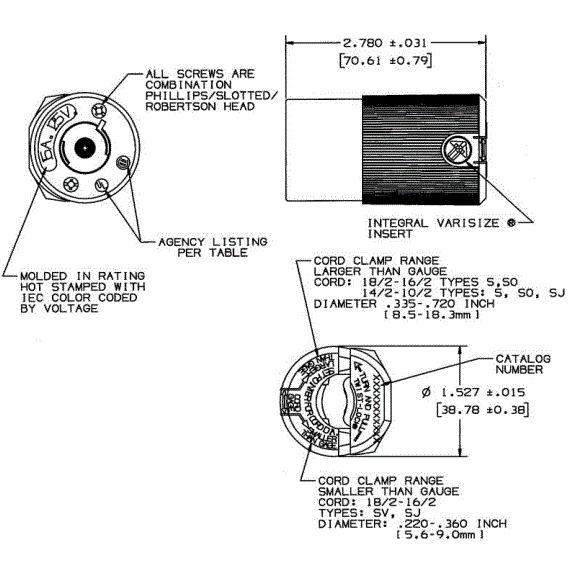

• Dimensions: 1.53 inches L x 1.53 inches W x 2.78 inches H
• Cord Diameter: 0.23 to 0.72 inches
• NEMA Rating: L2-20R
