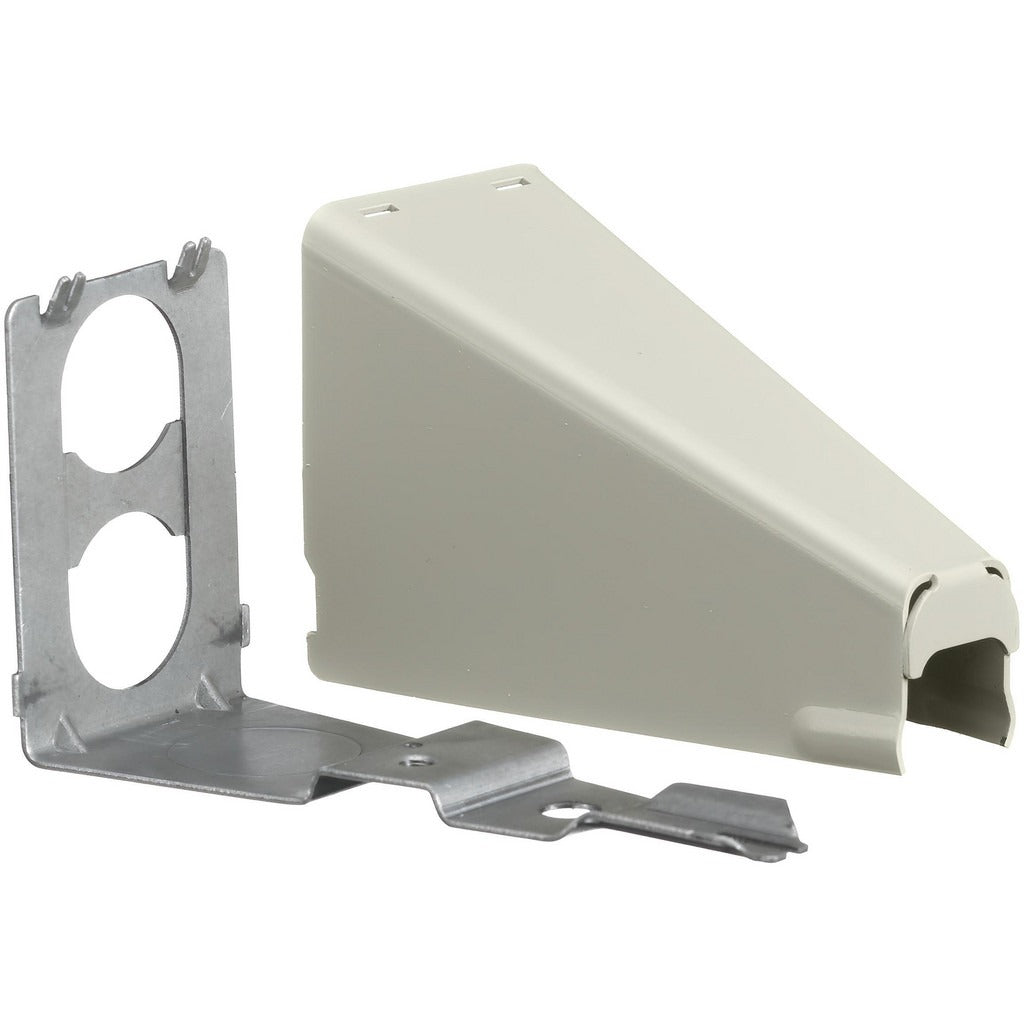

Hubbell Wiring Device-kellems HBL5786IVA Offset Connector

Product Description

The HUBBELL WIRING DEVICE-KELLEMS HBL5786IVA is an adjustable offset connector designed for use with surface-mounted raceway systems. This fitting allows electricians to transition wiring runs between misaligned or offset raceway sections, maintaining a clean, continuous pathway for conductors. The connector measures 3.89 inches in length, 2 inches in width, and 1.84 inches in height, making it a compact solution for tight installation scenarios. It is a field-installed accessory typically specified in commercial, institutional, and light industrial environments where surface raceway wiring methods are used in lieu of conduit.

This offset connector is compatible with the HBL500 Series, HBL700 Series, and HBL750 Series raceway systems from Hubbell Wiring Device-Kellems. It is used where two raceway runs meet at different planes or elevations and a direct coupling is not possible. Typical applications include offices, classrooms, healthcare facilities, and retail spaces where surface raceway installations require flexible routing to accommodate walls, columns, or structural offsets. Each unit is sold individually.

Key Features

• Adjustable offset design accommodates misaligned raceway runs without cutting or bending
• Compatible with HBL500, HBL700, and HBL750 Series raceway systems
• Compact footprint: 3.89 inches long, 2 inches wide, 1.84 inches tall
• Sold as a single unit with a minimum order quantity of one
• Designed for surface raceway wiring method installations in commercial and institutional settings

Compatibility

Compatible with HBL500 Series Raceways, HBL700 Series Raceways, and HBL750 Series Raceways from Hubbell Wiring Device-Kellems.

Installation Notes

Installation is performed by a licensed electrician following applicable NEC requirements for surface raceway wiring methods. De-energize all circuits in the raceway run before fitting or adjusting any raceway accessories. Ensure the offset connector is fully seated and secured to both raceway sections before pulling conductors. Do not exceed the raceway fill capacity as specified by the raceway system manufacturer.
