Hubbell Wiring Device-Kellems HBL5744SWA HPW HBL5744SWA R Way, 1G Box, Deep

Product Description

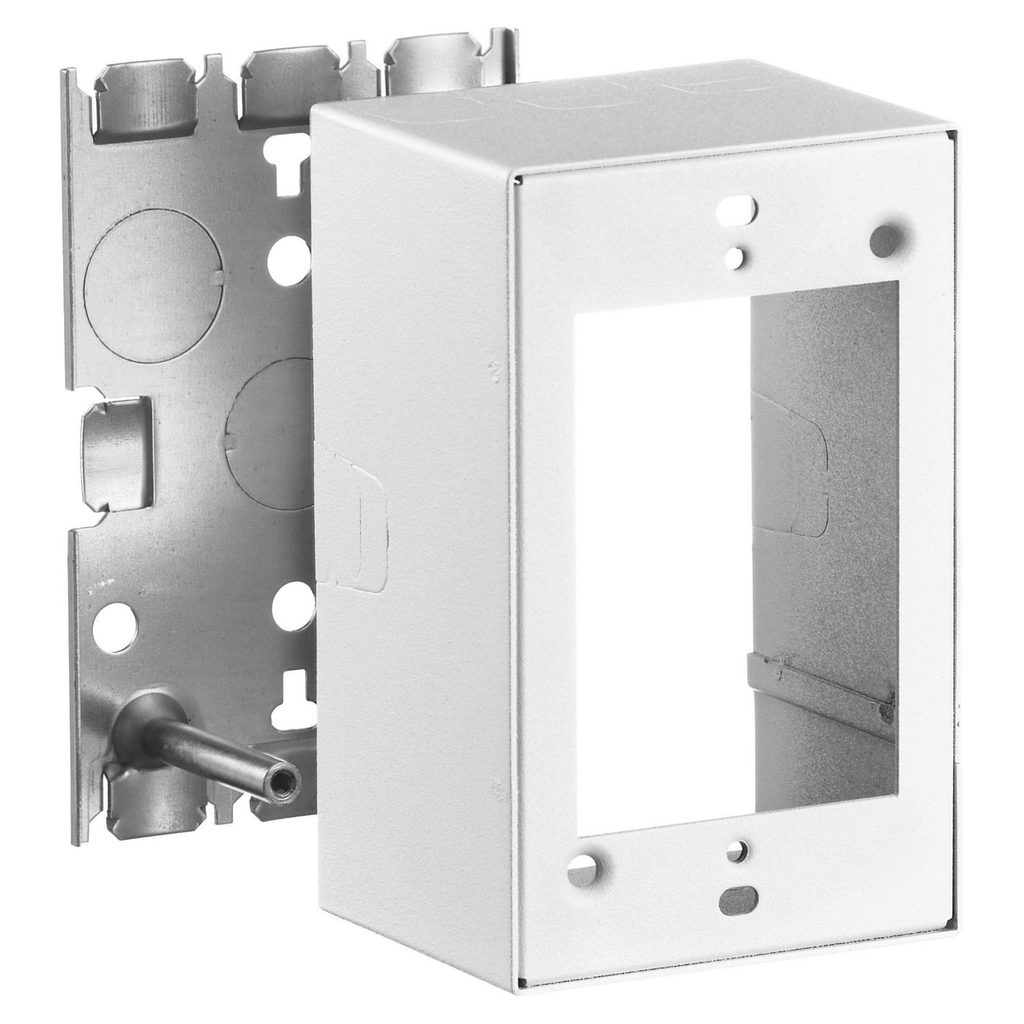

The Hubbell Wiring Device-Kellems HBL5744SWA is a deep one-gang raceway box designed for use with HBL500, HBL700, and HBL750 series metal raceways. It is constructed from stainless steel for durability and long-term performance.

• Deep design allows for adequate space for wiring
• Compatible with HBL500/700/750 series metal raceways
• Surface and vertical mounting options available

Product Highlights

This product serves effectively in various electrical installations where space management is required.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Product ID: 1756792

Technical Specifications

• Type: Deep
• Color: White
• Depth: 57 mm
• Width: 71.63 mm
• Height: 2.2 inches
• Length: 115.32 mm
• Material: Stainless Steel
• Standard: CSA, UL
• Enclosure: NEMA 1 Rating
• Cover Type: Steel
• Number of Gangs: 1 Gang
• Mounting Type: Surface, Vertical
• Applications: HBL500/700/750 Series Metal Raceway
• Country of Origin: China
