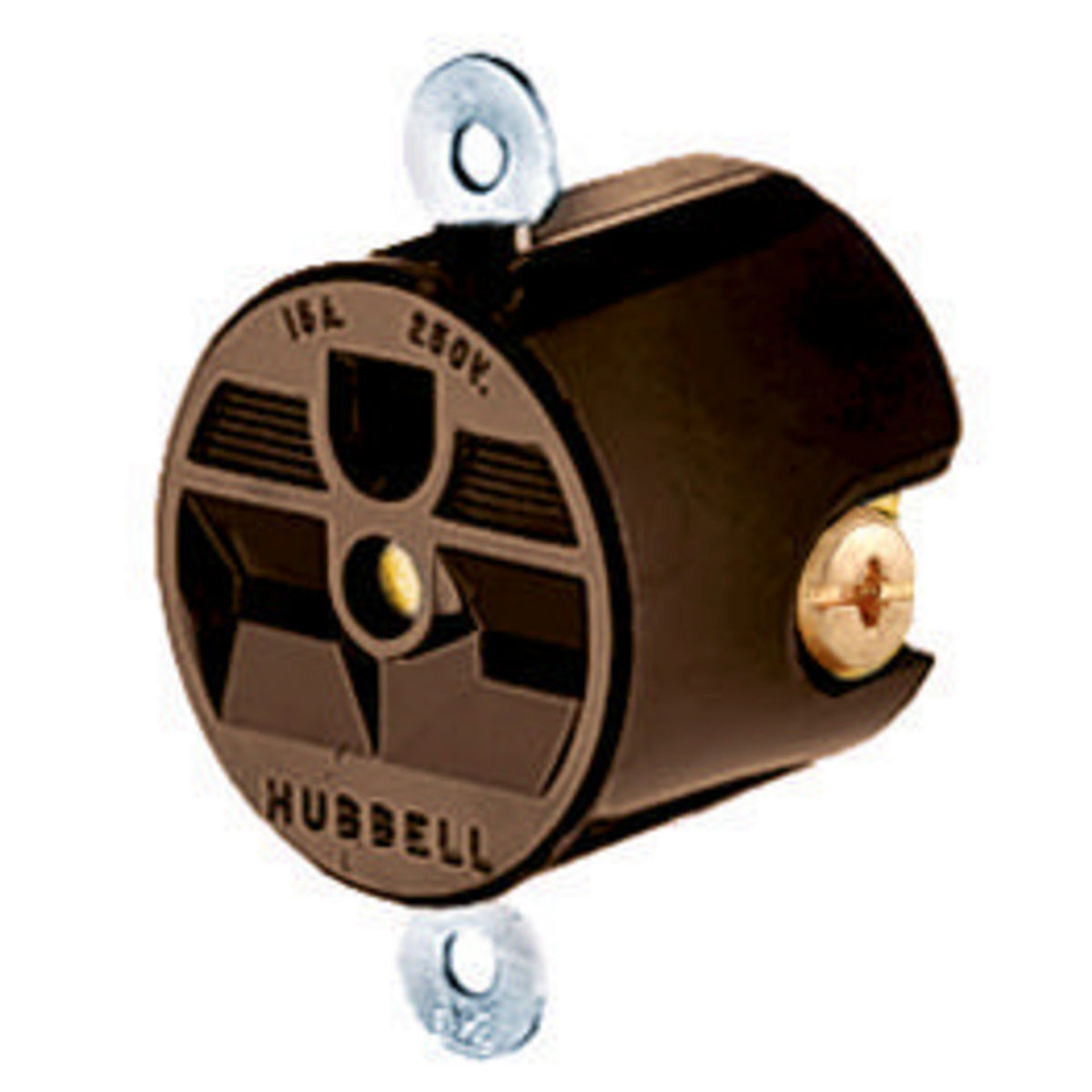

Hubbell Wiring Device - Kellems HBL5658 Straight Blade Devices Receptacles Panel Mount Single Specification Grade 2-Pole 3-Wire Grounding 15A 250V 6-15R

Product Description

The Hubbell Wiring Device - Kellems HBL5658 is a straight blade device receptacle designed for panel mounting. It features a specification grade construction suited for heavy-duty applications. This receptacle operates at fifteen amps and two hundred fifty volts with a six-15R NEMA rating.

• 15A and 250V rating
• Panel mount design for easy installation
• Heavy-duty thermoplastic composite material

Product Highlights

This receptacle is ideal for use in commercial and industrial settings, ensuring reliable connections for electrical devices.

Product Information

Standard Information

• Brand: Hubbell Wiring Device - Kellems
• Manufacturer: Hubbell Wiring Device-Kellems

Technical Specifications

• Catalog Number: HBL5658
• Amperage Rating: 15
• Voltage Rating: 250
• Material: Thermoplastic/Composite
• Connection: Side Wired Only
• NEMA Rating: 6
• Number of Poles: 2
• Number of Wires: 3-Wire
• Size: 1.75 in x 1.13 in x 1.47 in
• Special Features: Panel Mount
• Country of Origin: United States
