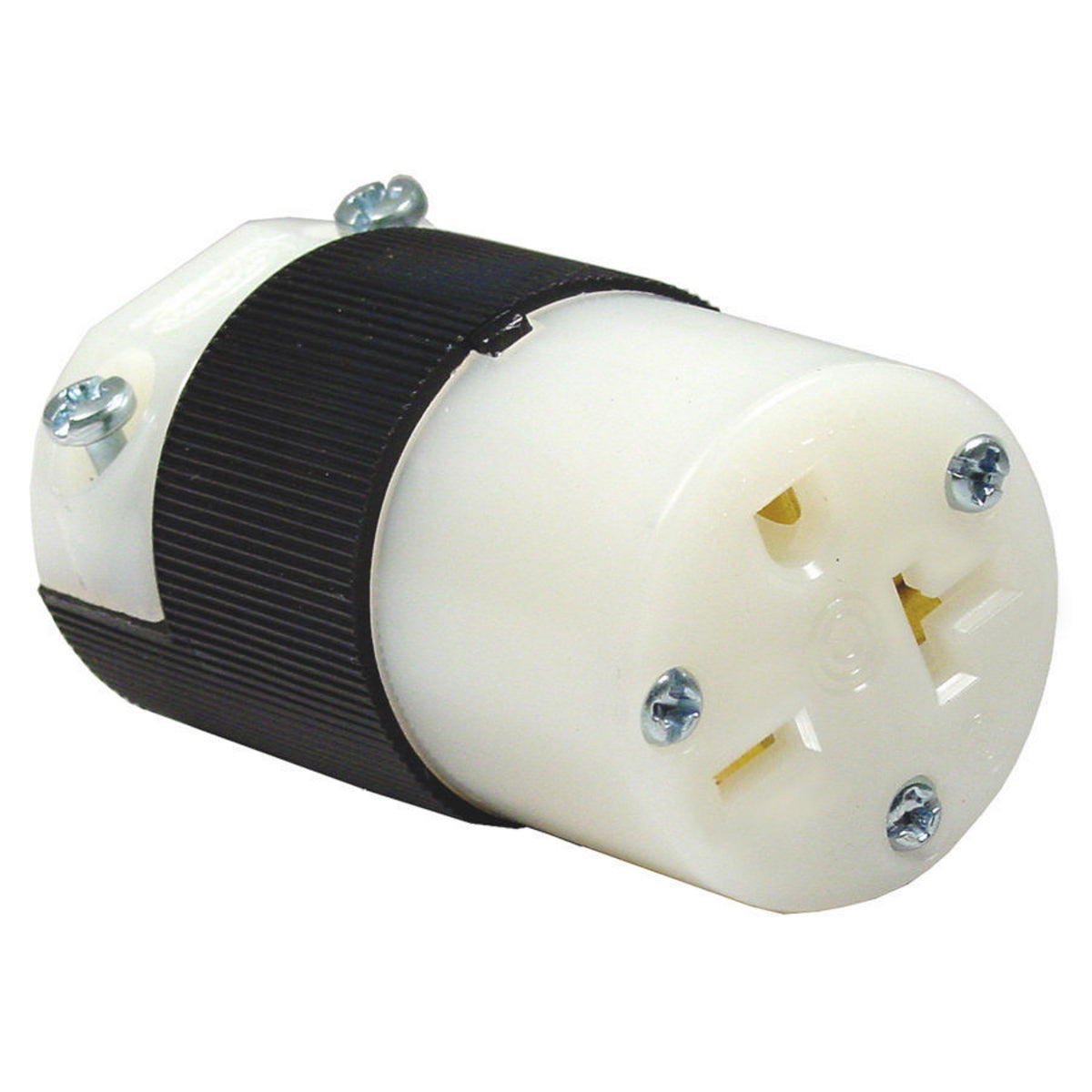

Hubbell Wiring Device-Kellems HBL5469C CONN-NEMA 6-20R 20A 250V REPLACEMENT MPN

Product Description

The Hubbell Wiring Device-Kellems HBL5469C is a twelve amp, two pole, three wire grounding connector body. It functions at a voltage of two hundred fifty volts. This component is designed for industrial and commercial applications, particularly suitable for heavy-duty tasks.

• Enclosed individual wiring terminals
• Offset cord grips for secure connections
• Quick lead assembly screws for easy installation

Product Highlights

This connector is ideal for industrial and commercial environments, ensuring robust electrical connections and compliance with relevant standards.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBL5469C

Technical Specifications

• Current Rating: 20 Amp
• Voltage Rating: 250 Volt
• Wattage: 5000 Watt
• Color: Black and White
• Material: Composite
• NEMA Rating: 6-20R
• Operating Temperature: -40 to 75 degrees Celsius

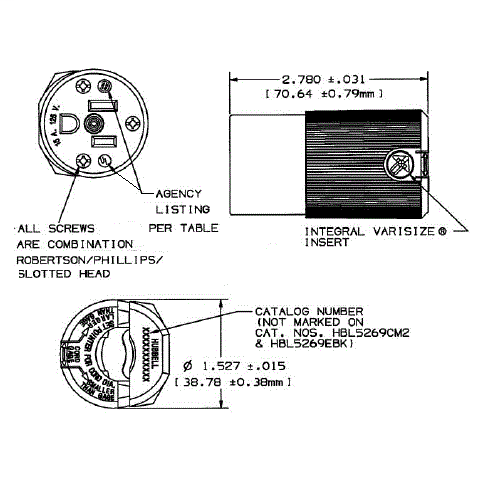

• Dimensions: 2.78 in x 1.53 in x 1.53 in
