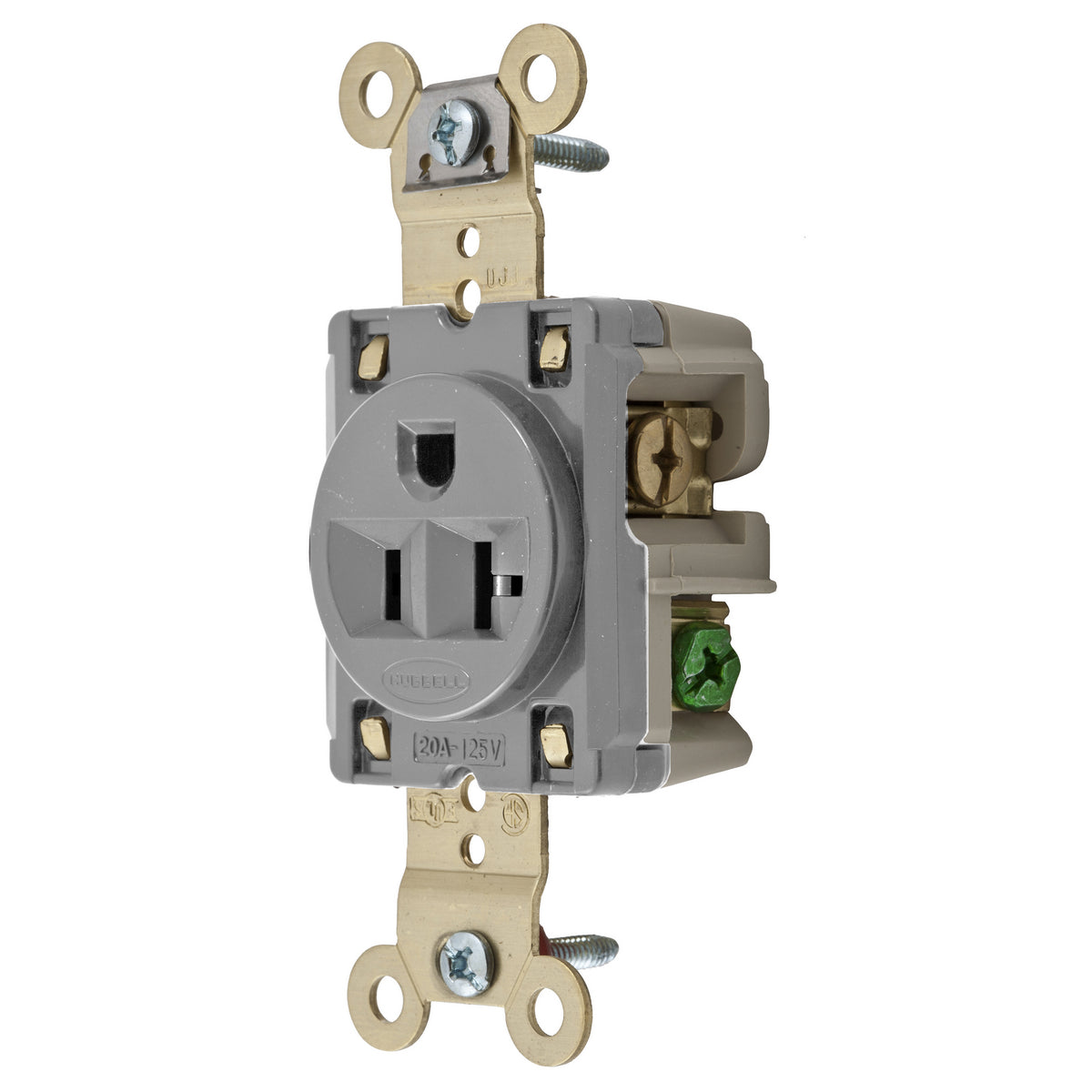

Hubbell Wiring Device-Kellems HBL5361GRY HWD 1-Phase Extra Heavy Duty Grounding Single Standard Straight Blade Receptacle 125 VAC 20 A 2 Poles 3 Wires NEMA 5-20R

Product Description

The Hubbell Wiring Device-Kellems HBL5361GRY is a 1-phase extra heavy duty grounding single standard straight blade receptacle. It operates at 125 VAC and carries a rating of 20 A. This receptacle features two poles and three wires, compliant with NEMA 5-20R standards, making it suitable for use in industrial environments.

• Designed for heavy duty applications
• Back and side wire connection options
• Temperature rating between -40 to 75 degrees Celsius

Product Highlights

Ideal for indoor dry environments, this receptacle ensures reliable power connectivity for various applications, including commercial and industrial usage.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBL5361GRY

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: 5-20R
• Horsepower: 1 hp
• Dimensions: 1.63 inches wide x 1.19 inches deep
• Material: Composite/Thermoplastic
• Grade: Industrial
• Country of Origin: US
