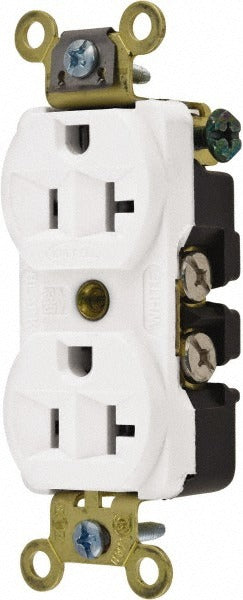

Hubbell Wiring Device-kellems HBL5352W Nema 5-20R Duplex Receptacle

Product Description

The HUBBELL WIRING DEVICE-KELLEMS HBL5352W is an industrial-grade straight blade duplex receptacle rated for 20 amps at 125 volts AC on a NEMA 5-20R configuration. Built with a nylon body, it delivers strong resistance to corrosion, heat, and impact — qualities that matter in demanding commercial and industrial environments. The self-grounding design simplifies installation by eliminating the need for a separate ground wire connection to the device strap. This receptacle is a two-pole, three-wire, single-phase unit intended for flush mount applications and is installed by licensed electricians in new construction, renovation, and facility maintenance work.

This receptacle is suited for industrial facilities, commercial buildings, and heavy-duty residential applications where a 20-amp, 125-volt outlet is required. The NEMA 5-20R configuration accepts both standard 15-amp and 20-amp straight blade plugs, making it a versatile choice for tool circuits, equipment drops, and general-purpose branch circuits that require higher ampacity than a standard 15-amp outlet provides. Its white finish and flush mount profile fit standard electrical boxes and wall plates.

Key Features

• NEMA 5-20R configuration — accepts 15-amp and 20-amp straight blade plugs
• Self-grounding design eliminates separate ground strap wiring step
• Industrial-grade nylon body rated corrosion-resistant, heat-resistant, and impact-resistant
• Back and side wiring method for flexible installation in standard boxes
• Flush mount profile fits standard single-gang and multi-gang electrical boxes
• Meets CSA, UL, Federal Specification, and NEMA WD-6 standards

Compatibility

Designed as an OEM-style replacement or new-installation duplex receptacle for standard flush-mount electrical boxes requiring a NEMA 5-20R, 20-amp, 125-volt outlet.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the branch circuit at the breaker panel and verify zero voltage with a meter before beginning any wiring work. The back and side wiring terminals allow connection to both push-in and screw-terminal wiring methods — consult local code for permitted methods. Do not exceed the 20-amp circuit rating of this device.
