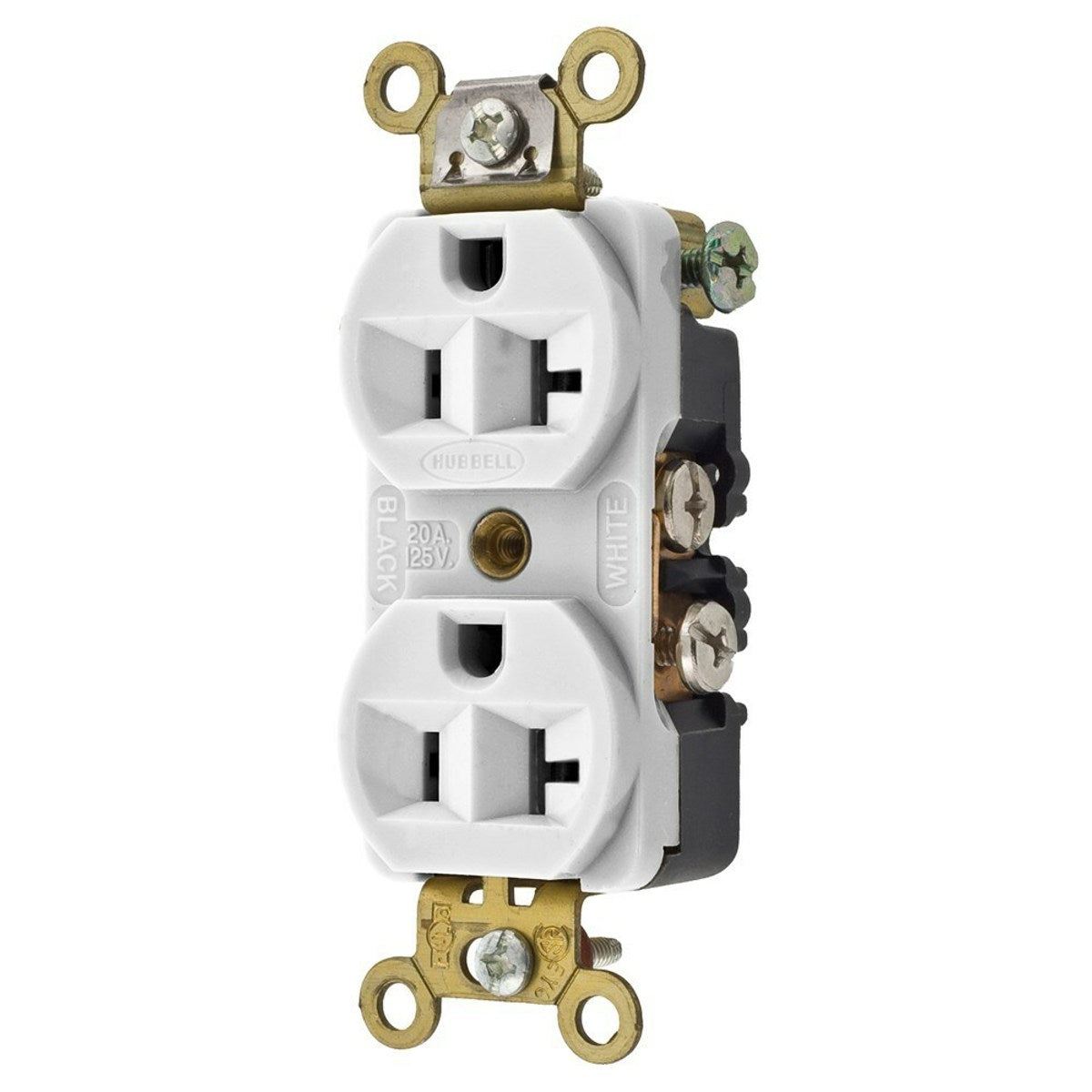

Hubbell Wiring Device - Kellems HBL5342W Straight Blade Devices 20A 125V 5-20R White Single Pack

Product Description

The Hubbell Wiring Device - Kellems HBL5342W is a straight blade duplex receptacle designed for commercial use. This device operates at twenty amperes and one hundred twenty-five volts. It features a two-pole, three-wire grounding system for enhanced safety.

• Amperage rating of twenty amps.
• Made in the USA and complies with relevant safety standards.
• Designed for extra heavy-duty applications with a compact build.

Product Highlights

This device is suitable for various applications where reliable power access is required. The receptacle is ideal for indoor environments, particularly when protected from moisture.

Product Information

Standard Information

• Brand: Hubbell Wiring Device - Kellems
• UPC: 783585434827

Technical Specifications

• Catalog Number: HBL5342W
• Manufacturer: Hubbell Wiring Device-Kellems
• Color: White
• Phase: 1
• Amperage Rating: 20
• Voltage Rating: 125
• Material: Thermoplastic/Composite
• NEMA Rating: 5
• Mounting: Screw
• Number of Poles: 2
• Number of Wires: 3-Wire
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Wire Size: #12 AWG to #10 AWG
• Special Features: Compact design and Self Grounding
• Application: Extra Heavy Duty Compact
• Size: 3.28 in x 1.33 in x 1.05 in
