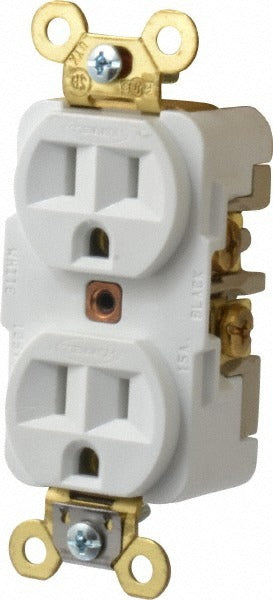

Hubbell Wiring Device-kellems HBL5262W Duplex Receptacle

Product Description

The HUBBELL WIRING DEVICE-KELLEMS HBL5262W is a straight blade duplex receptacle rated at 15 amps and 125 volts AC with a NEMA 5-15R configuration. Built to specification grade, it features a self-grounding design that eliminates the need for a separate grounding clip during installation. The nylon body provides corrosion resistance, heat resistance, and impact resistance, making it suited for demanding commercial and industrial wiring environments. Flush-mount construction fits standard single-gang boxes. Licensed electricians and wiremen install this receptacle as part of branch circuit wiring in new construction, retrofit, and renovation projects.

The HBL5262W is suited for residential, commercial, and light industrial applications where a reliable 15-amp, 125-volt outlet point is required. It accepts both back-wired and side-wired terminations, giving installers flexibility in high-density panel and junction box work. The single-phase, 2-pole, 3-wire design covers the vast majority of standard duplex outlet locations in North American electrical systems. The white finish integrates cleanly with standard wall plates.

Key Features

• Specification grade construction for long service life in commercial and industrial settings
• Self-grounding design speeds installation by eliminating a separate grounding clip
• Back and side wiring terminals accommodate varied installation methods
• Nylon body rated for corrosion, heat, and impact resistance
• Flush-mount profile fits standard single-gang electrical boxes
• White finish compatible with standard decorator and traditional wall plates

Compatibility

Designed as a specification-grade OEM-style duplex receptacle for standard single-gang flush-mount applications using NEMA 5-15R, 15-amp, 125-volt AC branch circuits in residential, commercial, and light industrial installations.

Installation Notes

Installation must be performed by a qualified electrician in accordance with NFPA 70 (NEC) requirements for the applicable circuit rating and occupancy type. De-energize the circuit at the breaker and verify absence of voltage with a meter before making any terminations. Secure all conductors to the appropriate terminals per the wiring method used and confirm the self-grounding feature makes solid contact with the mounting yoke before fastening the device in the box. Torque terminal screws to the device manufacturer specifications printed on the device body if visible.
