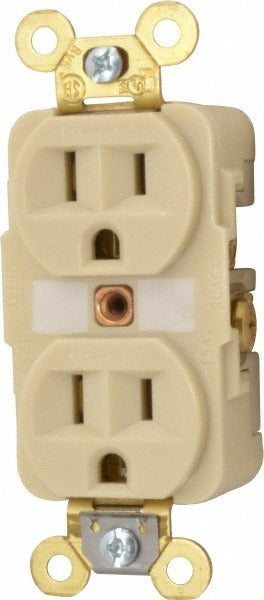

Hubbell Wiring Device-kellems HBL5262I Duplex Receptacle

Product Description

The HUBBELL WIRING DEVICE-KELLEMS HBL5262I is a specification-grade straight blade duplex receptacle rated at 15 amps and 125 volts AC, configured to NEMA 5-15R. Built with a nylon body, this receptacle features self-grounding construction that eliminates the need for a separate grounding jumper during installation. It accepts back and side wiring, supports flush-mount installation, and is finished in ivory. The specification grade rating means it is built to tighter tolerances and longer service life than standard residential devices, making it the right choice for commercial, institutional, and light industrial applications where reliability is required.

This receptacle is suited for flush-mount installation in standard electrical boxes wherever a NEMA 5-15R outlet is required. Typical applications include commercial offices, schools, healthcare facilities, and multi-unit residential buildings where specification-grade devices are called for by the project engineer or electrical inspector. The single-phase, 2-pole, 3-wire configuration covers the vast majority of 15-amp, 120-volt branch circuit outlet requirements.

Key Features

• Specification grade construction for extended service life in demanding environments
• Self-grounding design speeds installation and eliminates separate grounding pigtails
• Back and side wiring accepted for flexible rough-in options
• Nylon body rated corrosion-resistant, heat-resistant, and impact-resistant
• Flush-mount profile fits standard single-gang and multi-gang wallplates
• Ivory finish for compatibility with standard commercial device covers

Compatibility

Designed as an OEM-style specification-grade replacement or new-installation duplex receptacle for NEMA 5-15R flush-mount applications on standard 15-amp, 120-volt single-phase branch circuits.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the branch circuit at the panel and verify zero voltage with a meter before making any connections. Both back-stab and side-screw terminations are available — side-screw terminations are preferred for specification-grade work. Confirm the outlet box and cover plate are rated for the application before completing the installation.
