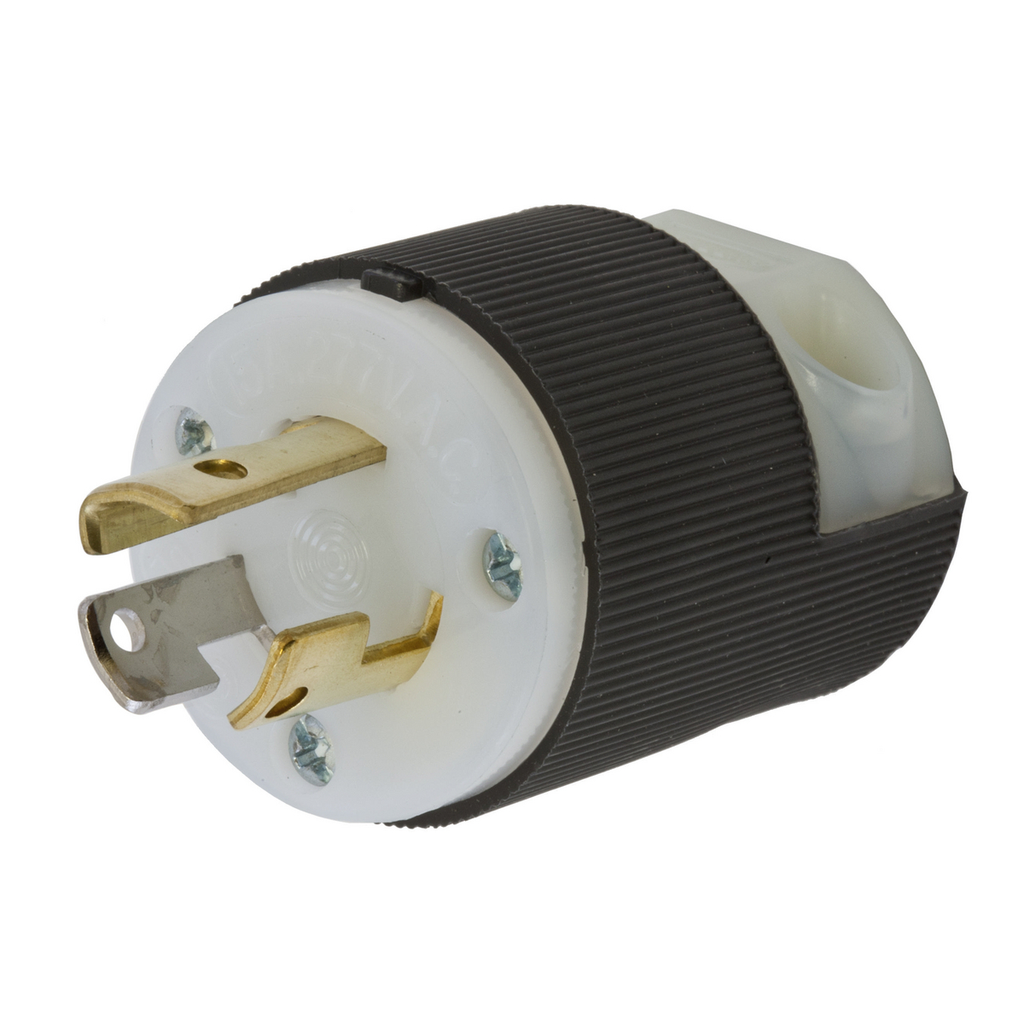

Hubbell Wiring Device-Kellems HBL4770C HBL4770-C 15A 277V AC Twist-Lock INSULGRIP Black Nylon Plug Straight

Product Description

The Hubbell Wiring Device-Kellems HBL4770C is a twist-lock plug designed for industrial applications. It operates at fifteen amperes and two hundred seventy-seven volts with a NEMA L7-15P configuration. This male Insulgrip plug features a sturdy black and white nylon construction.

• Individually molded face for optimal blade configuration
• Roomy wiring chamber for easy installation
• Ribbed nylon housing for secure grip, impact and chemical resistant

Product Highlights

This plug is suitable for extra heavy-duty industrial applications and features a pressure screw terminal connection.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device

Technical Specifications

• Catalog Number: HBL4770C
• Type: Insulgrip
• Number of Poles: 2 Pole
• Current Rating: 15 Amp
• Voltage Rating: 277 Volt
• Width: 1.9 inches
• Height: 1.97 inches
• Length: 1.53 inches
• Weight: 0.15 lb
• Material: Composite
• Operating Temperature: -40 degrees C
• Environmental Conditions: Indoor dry unless protected
• Wattage: 4155 Watt
• Applications: Extra heavy duty industrial application
