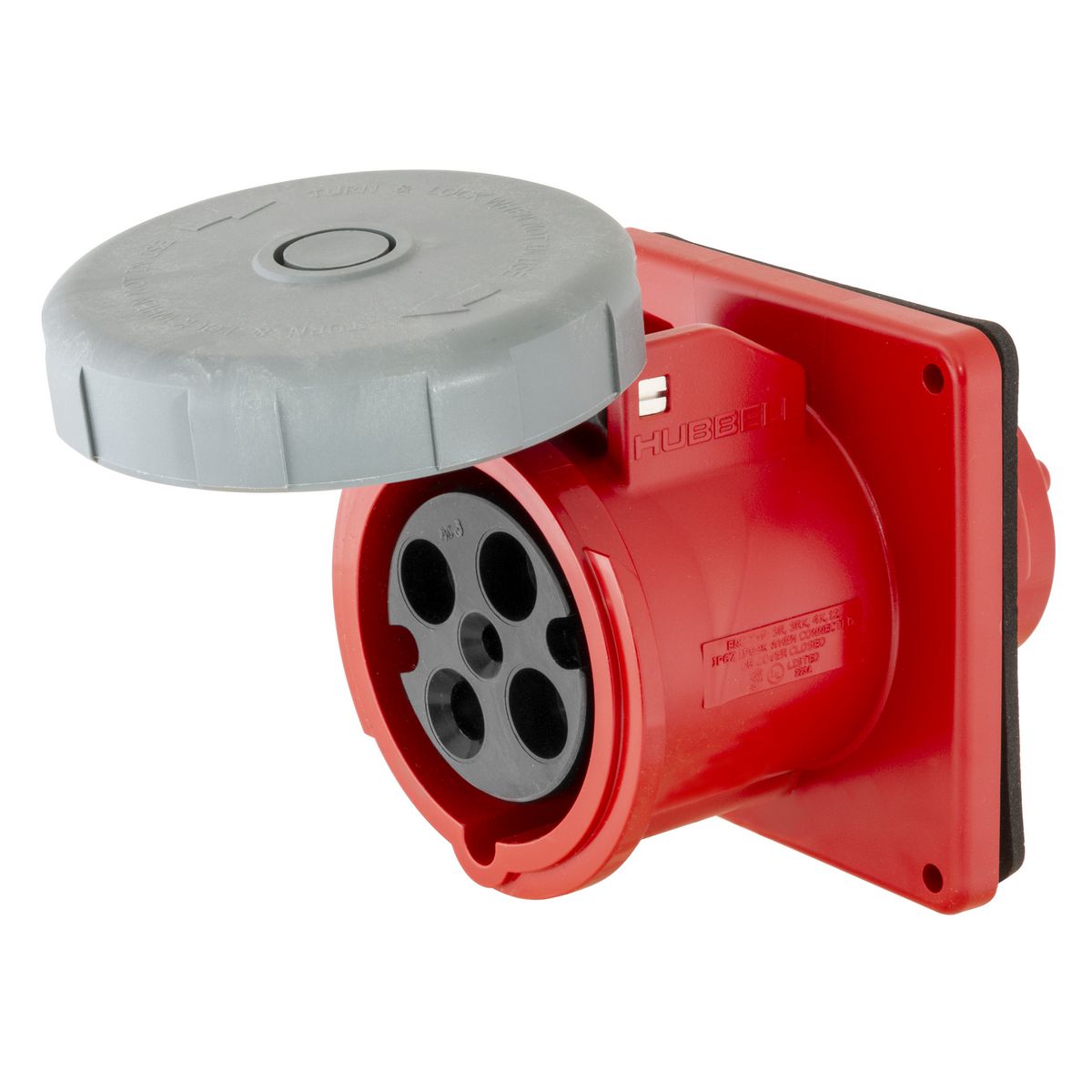

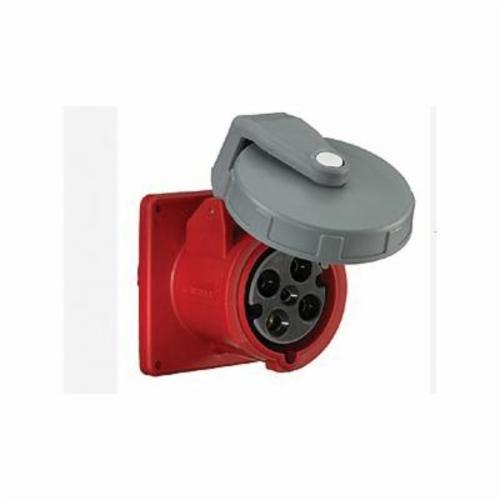

Hubbell Wiring Device-Kellems HBL460R7W HWD 60 Amp 3-Phase Watertight Pin & Sleeve Receptacle

Product Description

The Hubbell Wiring Device-Kellems HBL460R7W is a heavy-duty non-fusible single flanged standard watertight pin and sleeve receptacle designed for industrial applications. This receptacle is rated for four hundred eighty volts and can handle up to sixty amps. It features three poles and four wires, making it suitable for high ampacity watertight connection applications.

• Rated for 480 VAC, 60 A
• IP67 enclosure for enhanced water and dust resistance
• Designed for use with 8 to 2 AWG wire size

Product Highlights

This receptacle serves as an ideal solution for environments where reliable watertight connections are needed.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBL460R7W

Technical Specifications

• Voltage Rating: 480 VAC
• Amperage Rating: 60 A
• Number of Poles: 3
• Number of Wires: 4
• Material: Composite/Thermoplastic
• Enclosure: IP67
• Dimensions: 4.5 in H x 5.1 in W x 4.07 in D
• Temperature Rating: -40 to 75 degrees C
