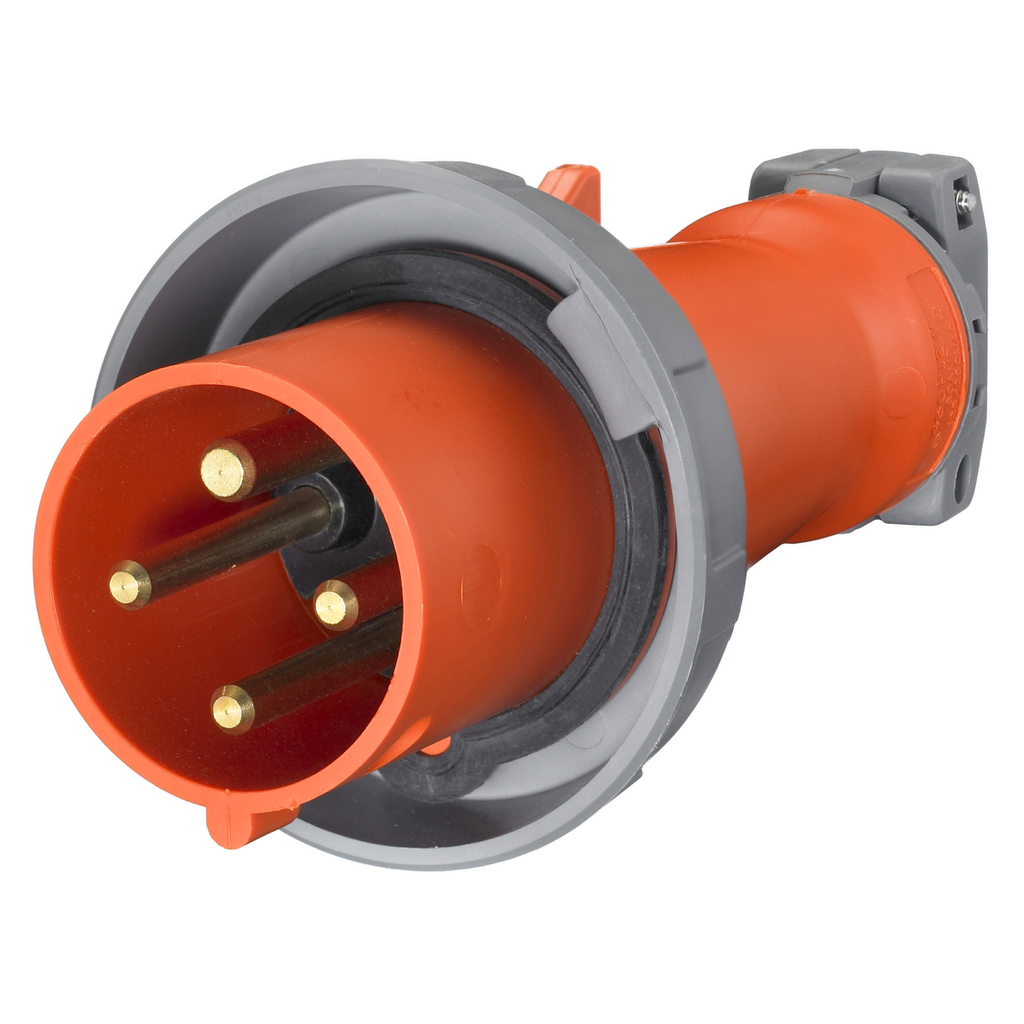

Hubbell Wiring Device-Kellems HBL460P12W Heavy Duty Male Non-Fusible Standard Watertight Pin and Sleeve Plug

Product Description

The Hubbell Wiring Device-Kellems HBL460P12W is a heavy-duty male non-fusible watertight plug designed for industrial applications. This plug operates at a voltage rating of 125/250 VAC with an amperage rating of 60 A. It features a robust construction that includes a composite material for durability and an IP67 enclosure rating for water and dust protection.

• Heavy-duty, non-fusible plug
• Suitable for high ampacity connection applications
• Watertight design with an IP67 protection rating

Product Highlights

This plug is ideal for outdoor and industrial environments where reliability is essential. It meets NEC requirements and offers secure electrical connection.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBL460P12W

Technical Specifications

• Voltage Rating: 125/250 VAC
• Amperage Rating: 60 A
• Horsepower: 7-1/2 hp
• Number of Poles: 3
• Number of Wires: 4
• Material: Composite
• Operating Temperature: -40 to 75 degrees C
• Dimensions: 4.49 in Dia x 10.15 in L
