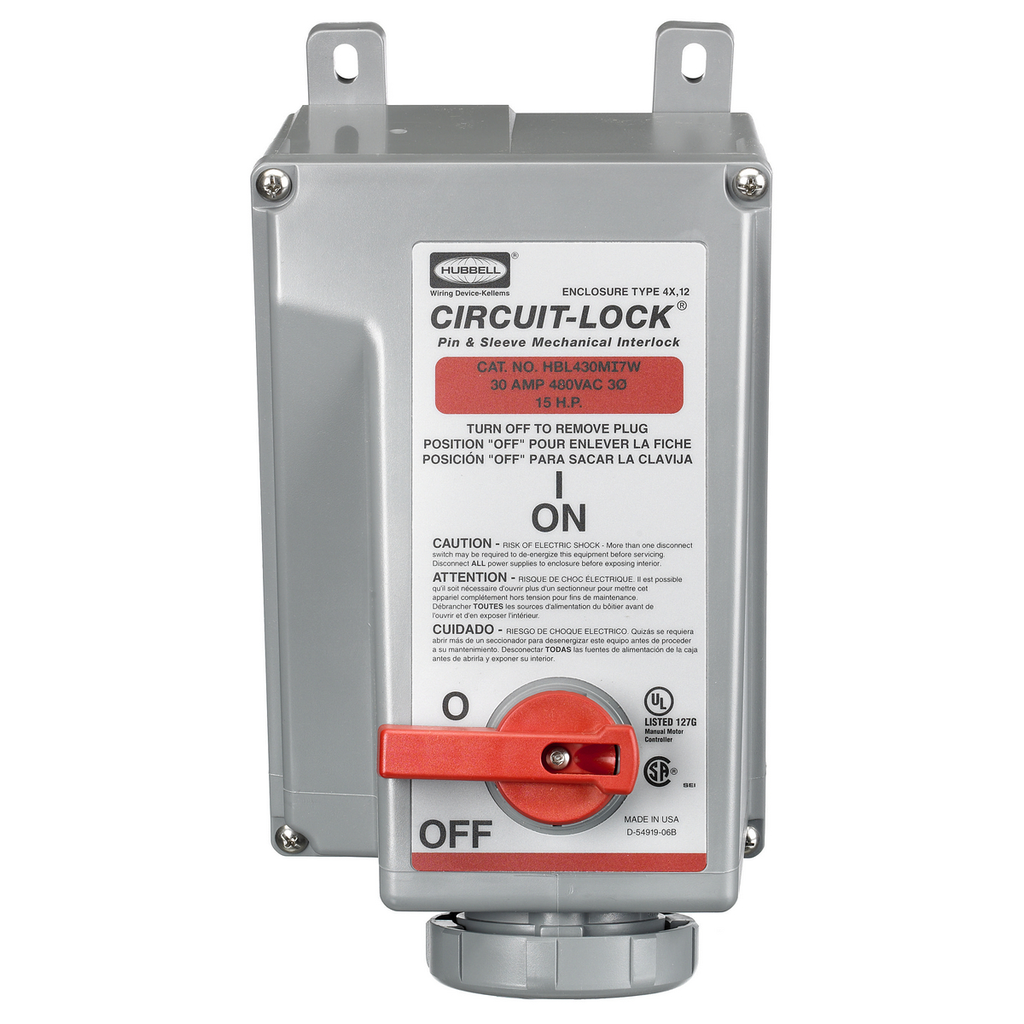

Hubbell Wiring Device-Kellems HBL430MI7W 30 Amp 480 Volt 3-Pole 4-Wire Watertight

Product Description

The Hubbell Wiring Device-Kellems HBL430MI7W is a mechanical interlock device designed for high ampacity watertight connections. This three-phase female grounding device is rated for 30 amps and operates at 480 volts. It features a watertight pressure screw terminal with a mechanical interlock for secure connections.

• Rated for 480 VAC
• 30 A amperage rating
• Enclosure rated NEMA 4X/12/IP67

Product Highlights

The HBL430MI7W is suitable for applications requiring durable and reliable electrical connections. Its thermoplastic construction ensures longevity in harsh environments.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Type: 3-Phase Female Grounding Non-NEMA Standard

Technical Specifications

• Power Rating: 14400 W
• Voltage Rating: 480 VAC
• Amperage Rating: 30 A
• Number of Poles: 3
• Number of Wires: 4
• Hub Size: 1 in
• Material: Thermoplastic
• Dimensions: 8-3/4 in W x 11 in H
• Environmental Rating: Watertight
