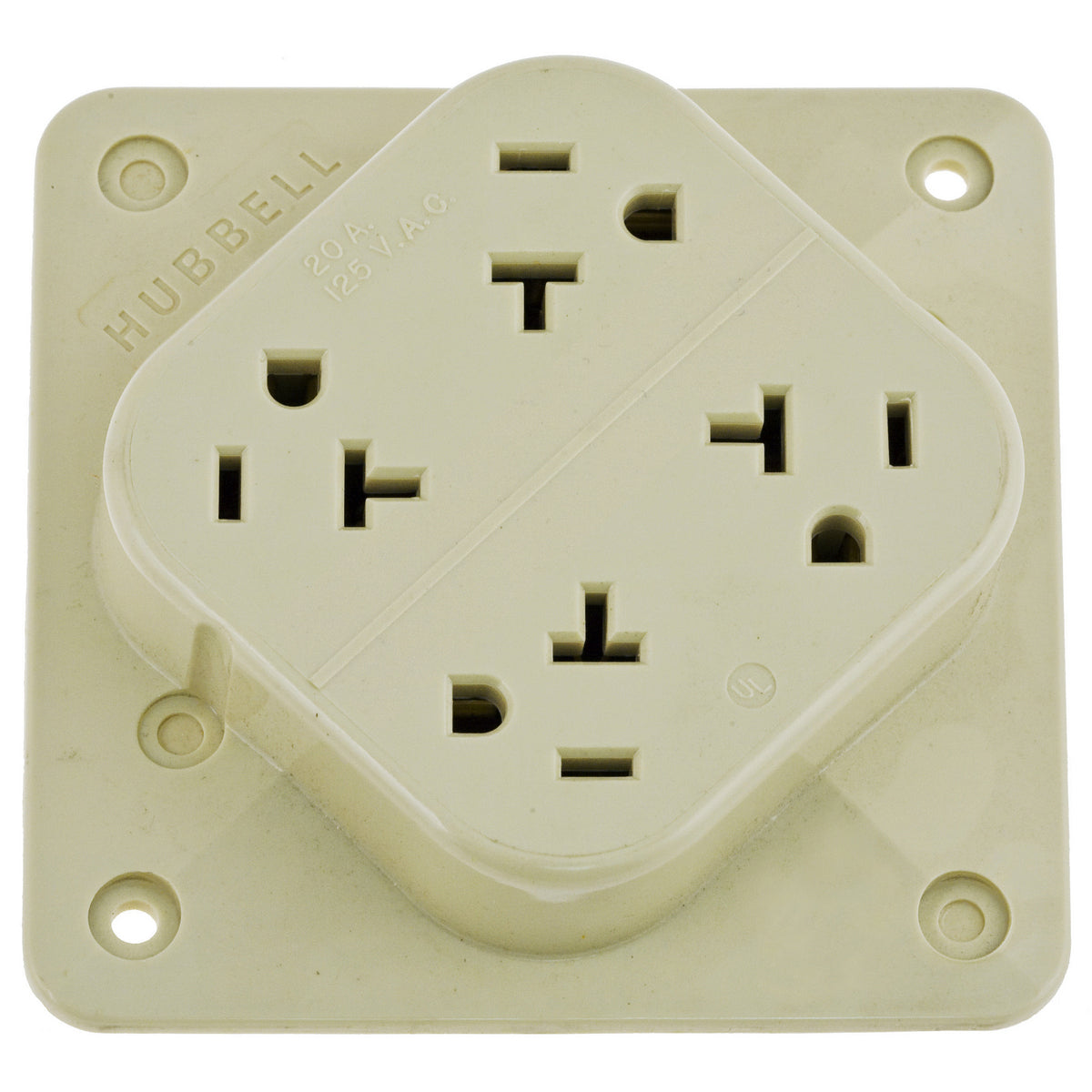

Hubbell Wiring Device-Kellems HBL420I Straight Blade Devices 20A 125V 4-Plex NEMA 5-20R

Product Description

The Hubbell Wiring Device-Kellems HBL420I is a straight blade receptacle designed for commercial and industrial applications. This 4-Plex device offers a reliable solution with four receptacles in one unit.

• Features four outlets that are energized by three conductors.
• Constructed from durable materials to withstand industrial conditions.
• Designed for easy installation with screw terminals.

Product Highlights

Ideal for industrial use, this receptacle accommodates a variety of equipment and offers a 20 Amp rating at 125 Volts.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Catalog Number: HBL420I

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 125 V
• Number of Wires: 3-Wire
• Number of Poles: 2-Pole
• Color: Ivory
• Material: Polycarbonate
• NEMA Rating: 5-20R

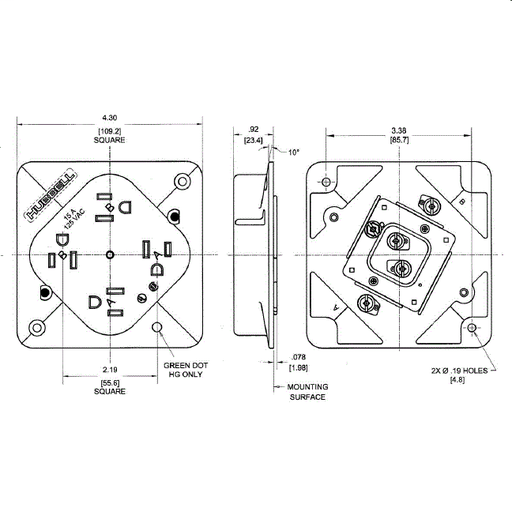

• Size: 4.30 in x 0.92 in x 4.30 in
• Mounting Type: Screw Mount
• Environmental Conditions: Indoor Dry Unless Protected
• Special Features: 4 Receptacles in one
