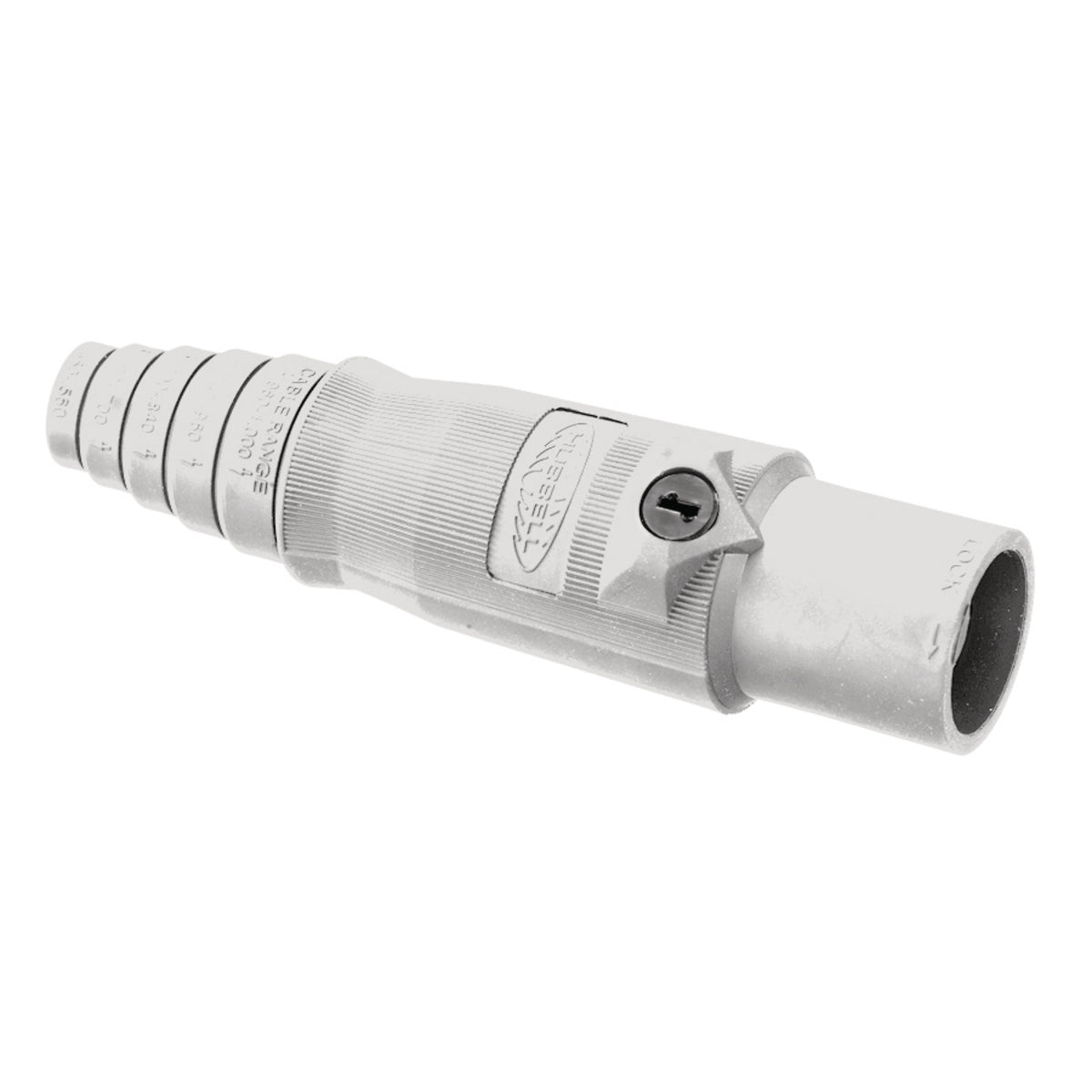

Hubbell Wiring Device - Kellems HBL400MW Heavy Duty Products Single Pole Devices 400A 600V AC/DC

Product Description

The Hubbell Wiring Device - Kellems HBL400MW is a heavy-duty industrial-grade male plug designed for high ampacity connections. With a rating of four hundred amps and six hundred volts alternating current or two hundred fifty volts direct current, this single pole plug fits various applications such as entertainment, theme parks, and movie productions that require temporary power. It features easy assembly and disassembly with no special tools needed, ensuring a quick setup.

• Rated for 400 amps and 600 volts AC / 250 volts DC.
• Constructed with a high strength non-conductive retaining screw.
• Compatible with SC/PPC type cables size 2/0 to 4/0 AWG.

Product Highlights

The Hubbell HBL400MW offers secure connections for temporary electrical power distribution in demanding environments.

Product Information

Standard Information

• Manufacturer: Hubbell Wiring Device-Kellems
• Color: White

Technical Specifications

• Catalog Number: HBL400MW
• Amperage Rating: 400
• Application: High Ampacity Connections
• Number of Poles: 1
• Connection Type: Pressure Terminal Screws
• Voltage Rating: 600 AC, 250 DC Max
• Wattage: 240000 W
• Material: Composite
• Environmental Conditions: Indoor Dry unless protected
