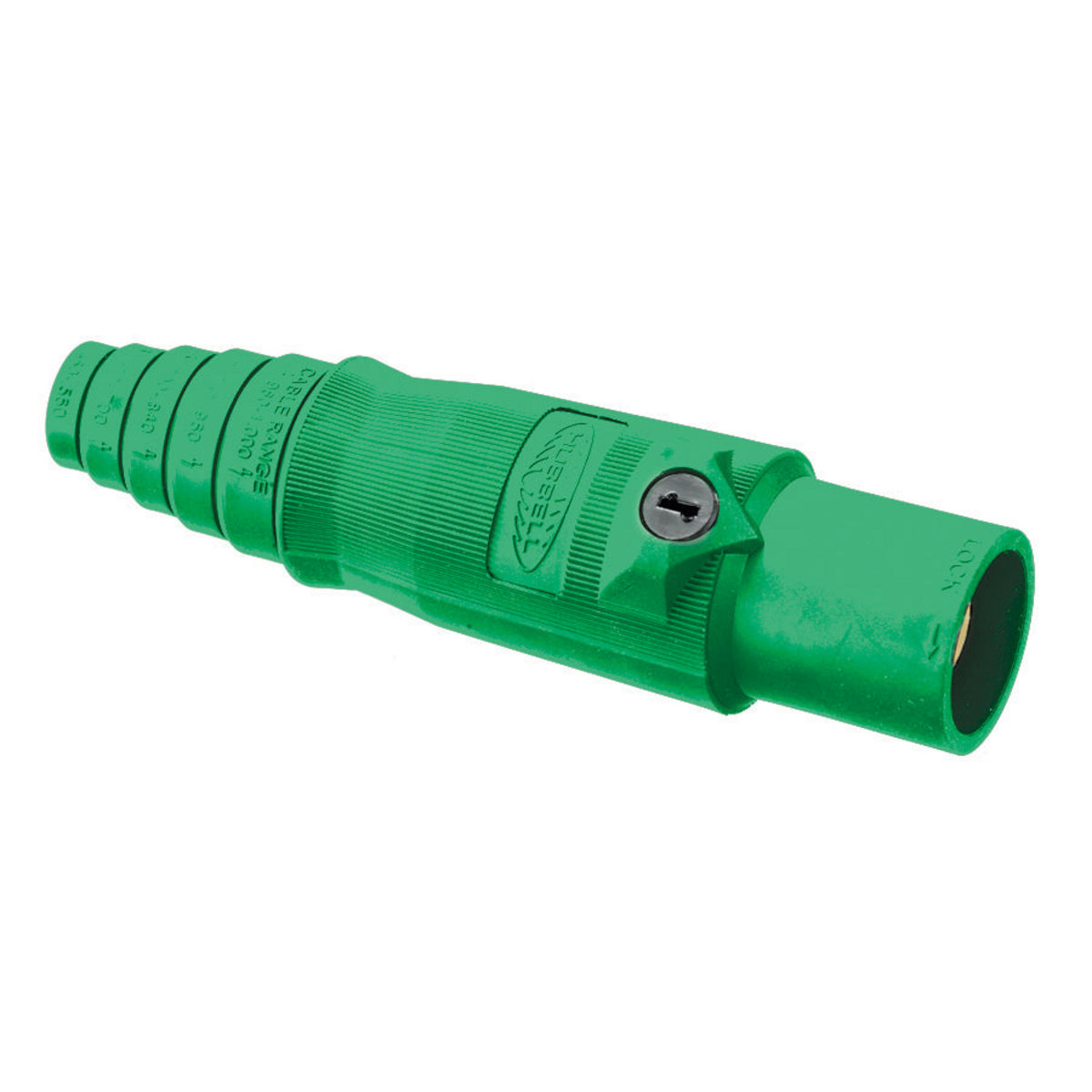

Hubbell Wiring Device-Kellems HBL400MGN Heavy Duty Male Plug 400 Amp 600 VAC 250 VDC 1-Pole Green

Product Description

The Hubbell Wiring Device-Kellems HBL400MGN is a heavy-duty male plug designed for rigorous applications. This plug operates at a voltage of six hundred volts alternating current and two hundred fifty volts direct current, with a current capacity of four hundred amps. It accommodates wire sizes from two/zero to four/zero AWG. Ideal for temporary power distribution in outdoor events, concerts, and production environments requiring high ampacity connections.

• Single pole design for easy installation
• Non-conductive retaining screw for secure contact
• Composite housing for durability

Product Highlights

This plug features a user-friendly Insulgrip style housing that provides a secure grip, even when used with gloves. It includes a large alignment arrow for easy device mating and is designed to reduce the risk of unintended disconnects.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBL400MGN

Technical Specifications

• Amperage Rating: 400 A
• Voltage Rating: 600 VAC / 250 VDC
• Wire Size: 2/0 to 4/0 AWG
• Connection Type: Pressure Terminal Screws
• Material: Composite
• Color: Green
• NEMA Rating: 3R/4X/12K
• Dimensions: 1.48 inches diameter x 6.74 inches length
• Operating Environment: Indoor dry unless otherwise protected
