Hubbell Wiring Device-Kellems HBL29W75 HWD 3-Phase Isolated Grounding Watertight Cord Mount Connector

Product Description

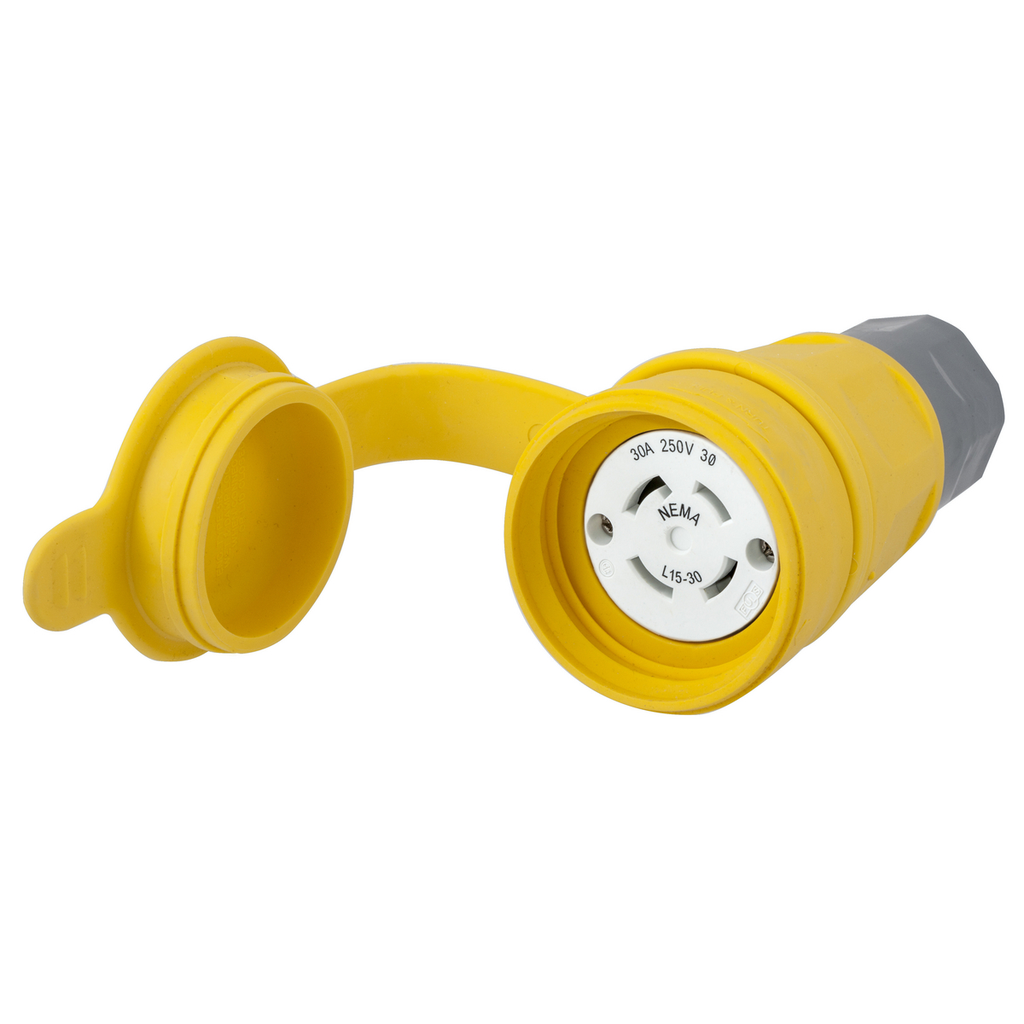

The Hubbell Wiring Device-Kellems HBL29W75 is a twist-lock female connector designed for commercial and industrial applications. This watertight cord mount connector is rated for 250 Delta VAC and 30 A, featuring three poles and four wires for robust electrical connectivity. Ideal for environments where moisture and dust are concerns, its yellow finish ensures visibility in low light conditions.

• Watertight design for reliability in harsh conditions
• Compatible with cords ranging from three-eighths to one inch in diameter
• Constructed of durable elastomer/composite materials

Product Highlights

Use the HBL29W75 where a secure and reliable connection is required in wet or dusty environments. This connector meets various safety standards and is suitable for a range of applications.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Type: Twist-Lock Connector

Technical Specifications

• MPN: HBL29W75
• Voltage Rating: 250 Delta VAC
• Amperage Rating: 30 A
• Number of Poles: 3
• Number of Wires: 4
• Temperature Rating: -40 to 60 degrees C
• Dimensions: 2.77 in Diameter x 5.67 in Length
• Cord Diameter Range: 3/8 to 1 in
