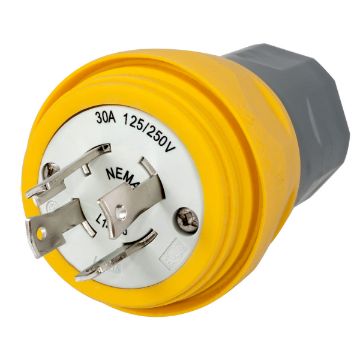

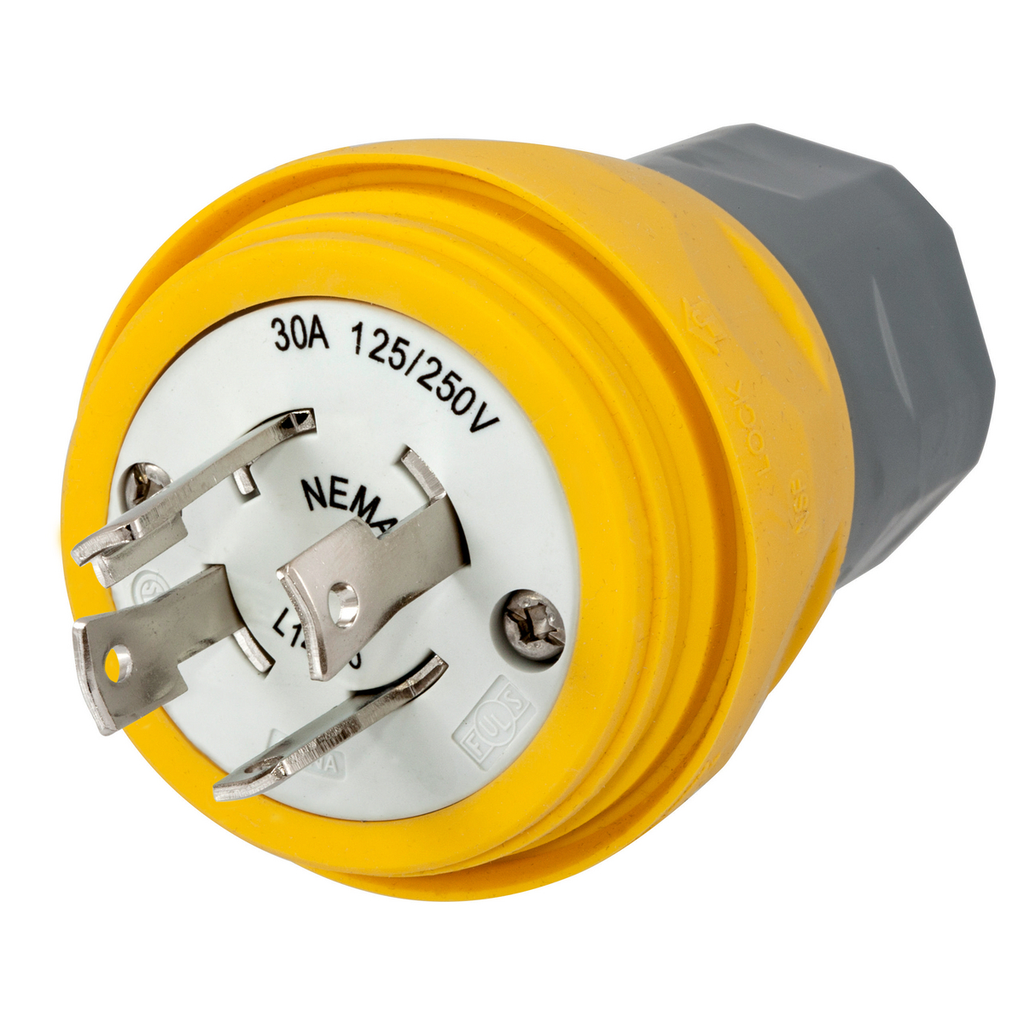

Hubbell Wiring Device-Kellems HBL28W74 1-Phase Grounding Male Standard Cord Mount Watertight Locking Plug 125/250 VAC

Product Description

The Hubbell Wiring Device-Kellems HBL28W74 is a locking plug designed for use in dry locations and power connections. This plug features a 1-phase grounding male standard cord mount design and is watertight, ensuring reliable performance in demanding conditions. It is rated for 125/250 VAC and 30 A, making it suitable for various industrial and commercial applications.

• Watertight locking plug with NEMA L14-30P rating
• Constructed for durability with elastomer and composite materials
• Temperature range from -40 to 60 degrees Celsius

Product Highlights

Ideal for industrial and commercial environments, this plug supports a cord diameter of three-eighths to one inch and provides a secure connection with screw terminal design.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Type: 1-Phase Grounding Male Standard Cord Mount Watertight

Technical Specifications

• Voltage Rating: 125/250 VAC
• Amperage Rating: 30 A
• Number of Poles: 3
• Number of Wires: 4
• NEMA Rating: L14-30P
• Material: Elastomer/Composite
• Enclosure: NEMA 4/4X/6/6P/12
• Dimensions: 2.77 x 2.77 x 3.94 in
