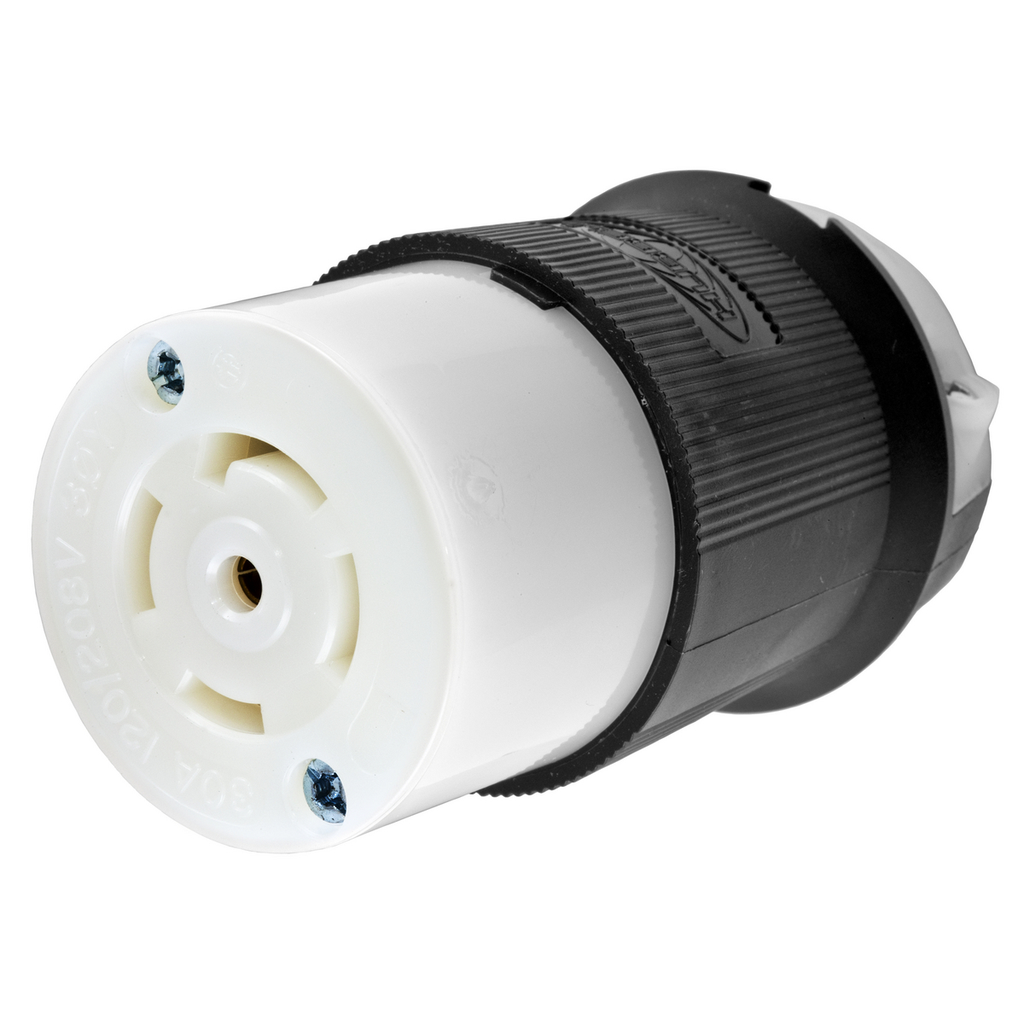

Hubbell Wiring Device-Kellems HBL2813 Insulgrip Locking Connector 120/208 VAC 30 A 4 Poles 5 Wires

Product Description

The Hubbell Wiring Device-Kellems HBL2813 is a twist-lock Insulgrip locking connector designed for 3-phase applications. This heavy-duty device operates at 120/208 VAC and has a current rating of thirty amperes. It features four poles and five wires, making it suitable for industrial-grade tasks. The connector comes with a black and white composite housing.

• Heavy-duty insulated locking connector for demanding environments.

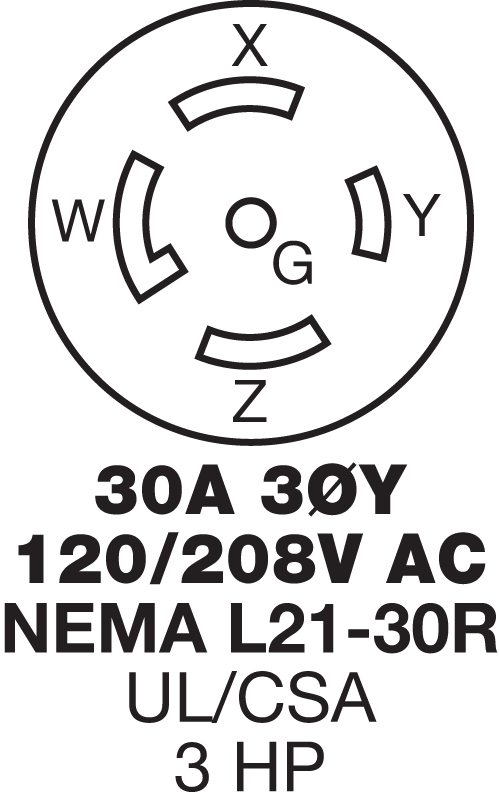

• Compatible with NEMA L21-30R configurations.
• Temperature rated for use between negative forty and seventy-five degrees Celsius.

Product Highlights

Designed for maximum security and performance, this connector provides a reliable connection under heavy load. It is ideal for industrial applications where robustness is necessary.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBL2813

Technical Specifications

• Voltage Rating: 120/208 VAC
• Amperage Rating: 30 A
• Number of Poles: 4
• Number of Wires: 5
• Color: Black/White
• Material: Composite
• Temperature Rating: -40 to 75 degrees Celsius
• Cord Diameter: 0.35 to 1.15 inches
