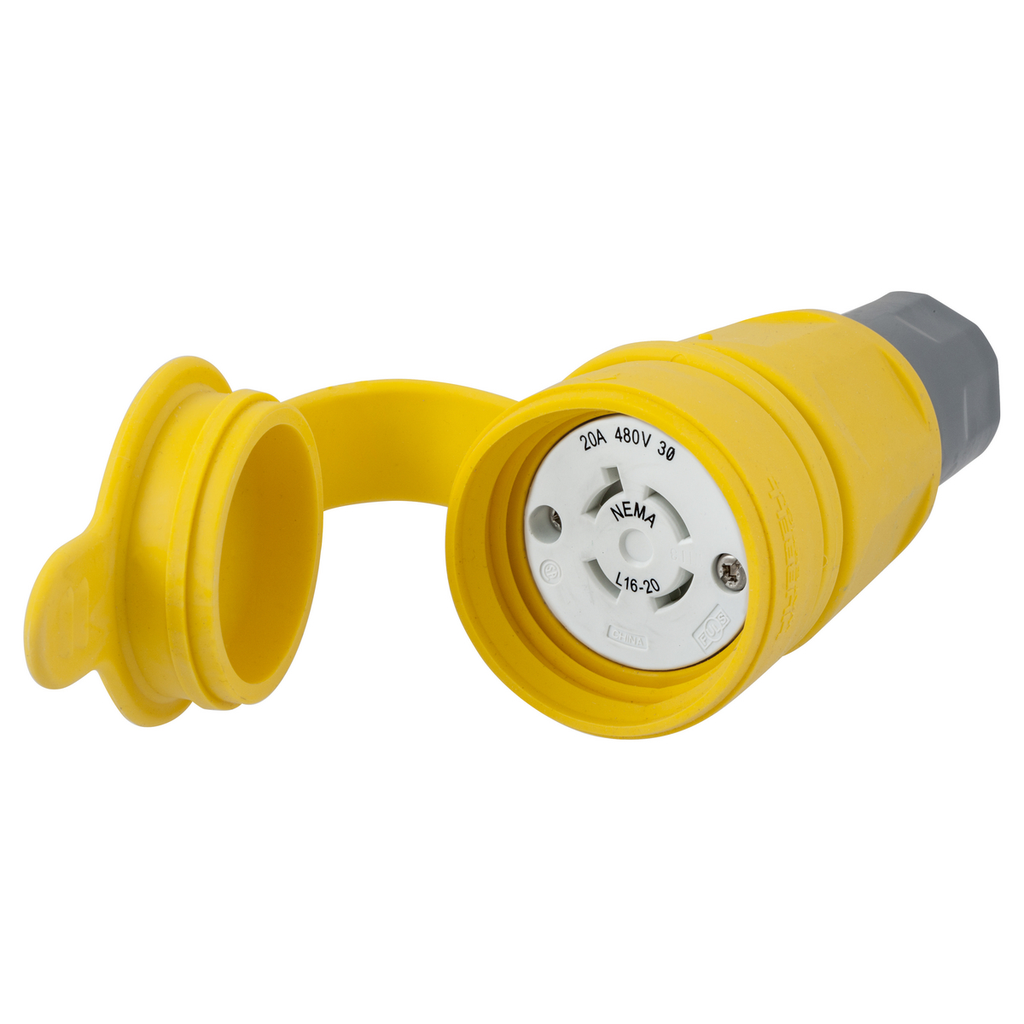

Hubbell Wiring Device-Kellems HBL27W76 HWD 20 Amp 480 Volt 3-Pole 4-Wire NEMA L16-20R Yellow Locking Connector

Product Description

The Hubbell Wiring Device-Kellems HBL27W76 is a 20 Amp watertight twist-lock female connector designed for industrial applications. It operates at 480 Delta VAC and supports three poles and four wires. This connector is suitable for use in environments where water and dust are concerns.

• 3-phase isolated grounding

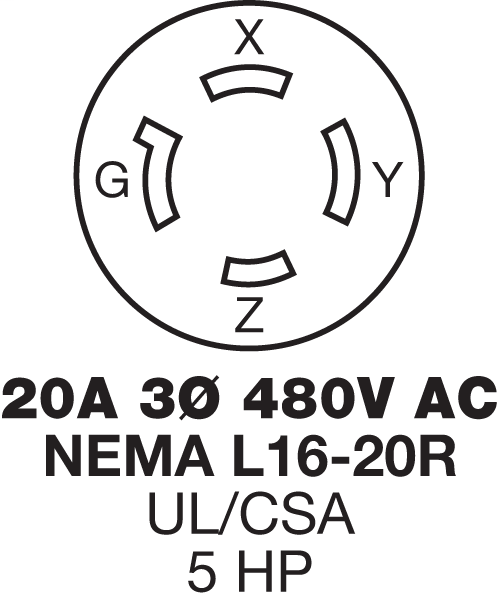

• Compatibility with NEMA L16-20R
• Operating temperature range of -40 to 60 degrees C

Product Highlights

This connector features a screw terminal connection type and is made from durable elastomer/composite materials. It is ideal for commercial and industrial grade applications.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBL27W76

Technical Specifications

• Voltage Rating: 480 Delta VAC
• Amperage Rating: 20 A
• Number of Poles: 3
• Number of Wires: 4
• Cord Diameter: 3/8 to 7/8 in

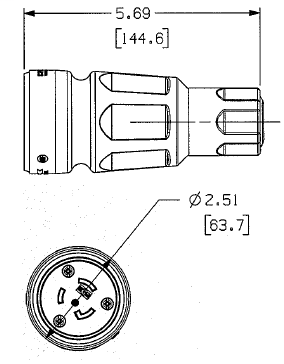

• Dimensions: 2.51 in diameter x 5.69 in length
• Environmental Protection: NEMA 4/4X/6/6P/12
• Body Material: Thermoplastic elastomer
