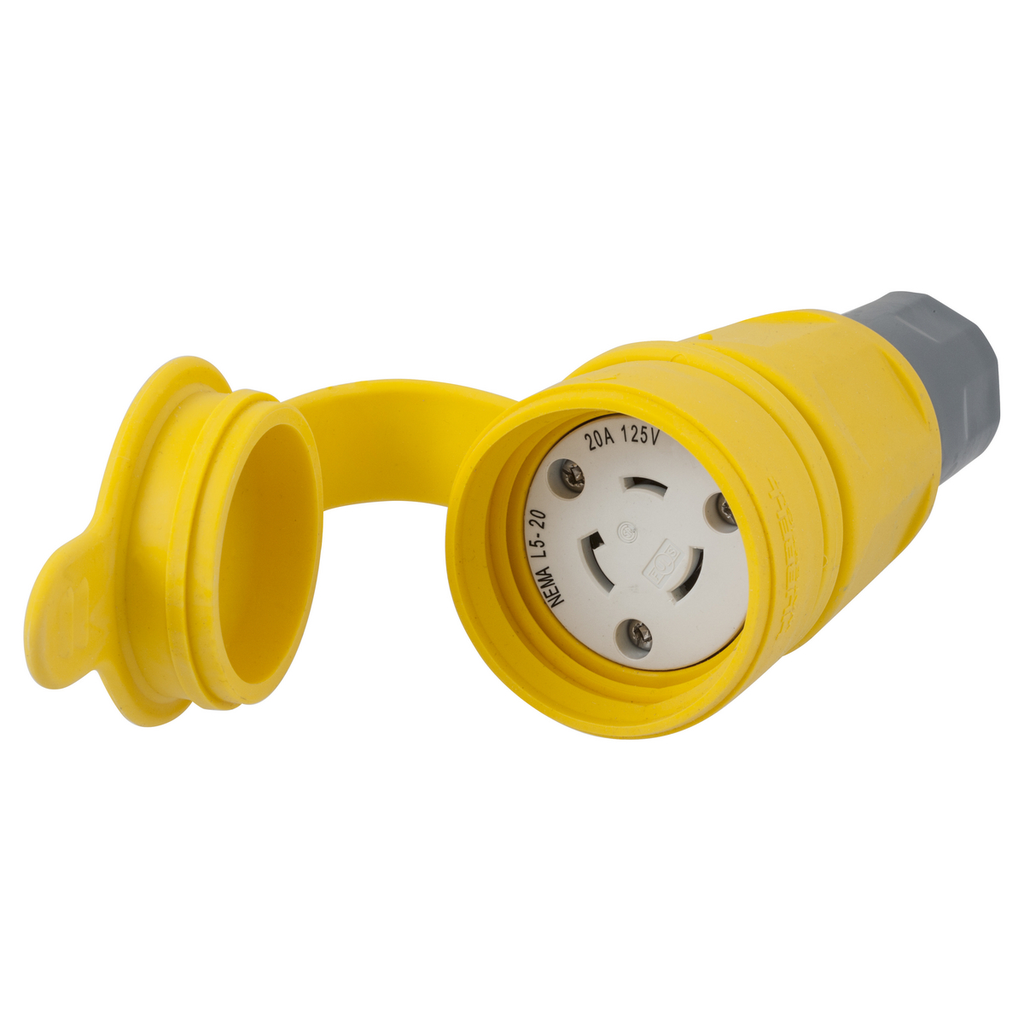

Hubbell Wiring Device-Kellems HBL27W47 HWD Grounding Connector 125 Volt 20 Amp 2-Pole 3-Wire NEMA L5-20R

Product Description

The Hubbell Wiring Device-Kellems HBL27W47 is a dust and watertight grounding isolated insulated standard cord mount female connector. It features a NEMA L5-20R rating and is suitable for use in both commercial and industrial applications.

• Made from elastomer/composite materials.
• Rated for 125 VAC and 20 A.
• Compatible with cord diameters from three-eighths to seven-eighths inches.

Product Highlights

This connector is designed for durability in harsh environments. It can operate in temperatures ranging from negative forty to seventy-five degrees Celsius.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBL27W47

Technical Specifications

• Type: Dust/Watertight Grounding Isolated Insulated Standard Cord Mount
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3

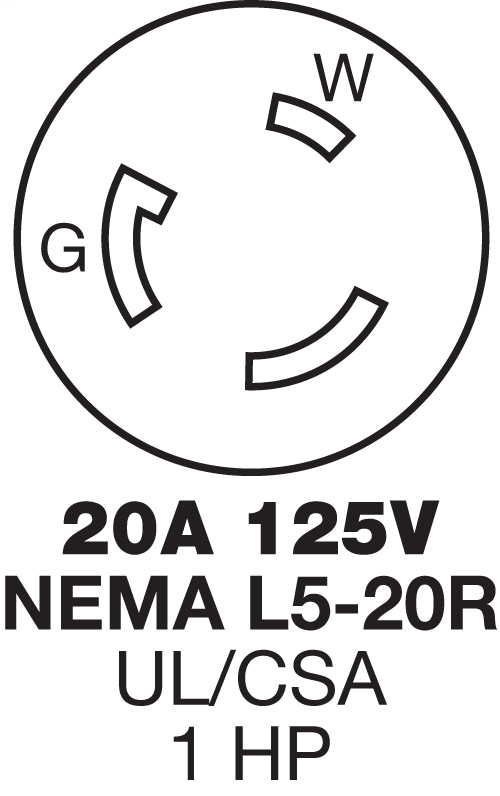

• NEMA Rating: L5-20R

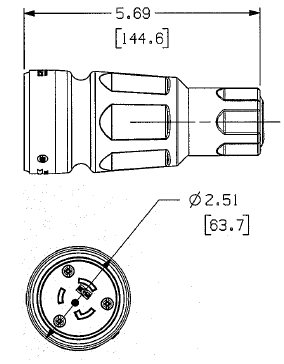

• Dimensions: 2.51 inches diameter x 5.69 inches length
• Cord Diameter: 3/8 to 7/8 inches
• Temperature Rating: -40 to 75 degrees Celsius
• Enclosure: NEMA 4/4X/6/6P/12
