Hubbell Wiring Device-Kellems HBL2723SW Heavy Duty Grounding Cord Mount Watertight Locking Connector 250 VAC 30 A L15-30R

Product Description

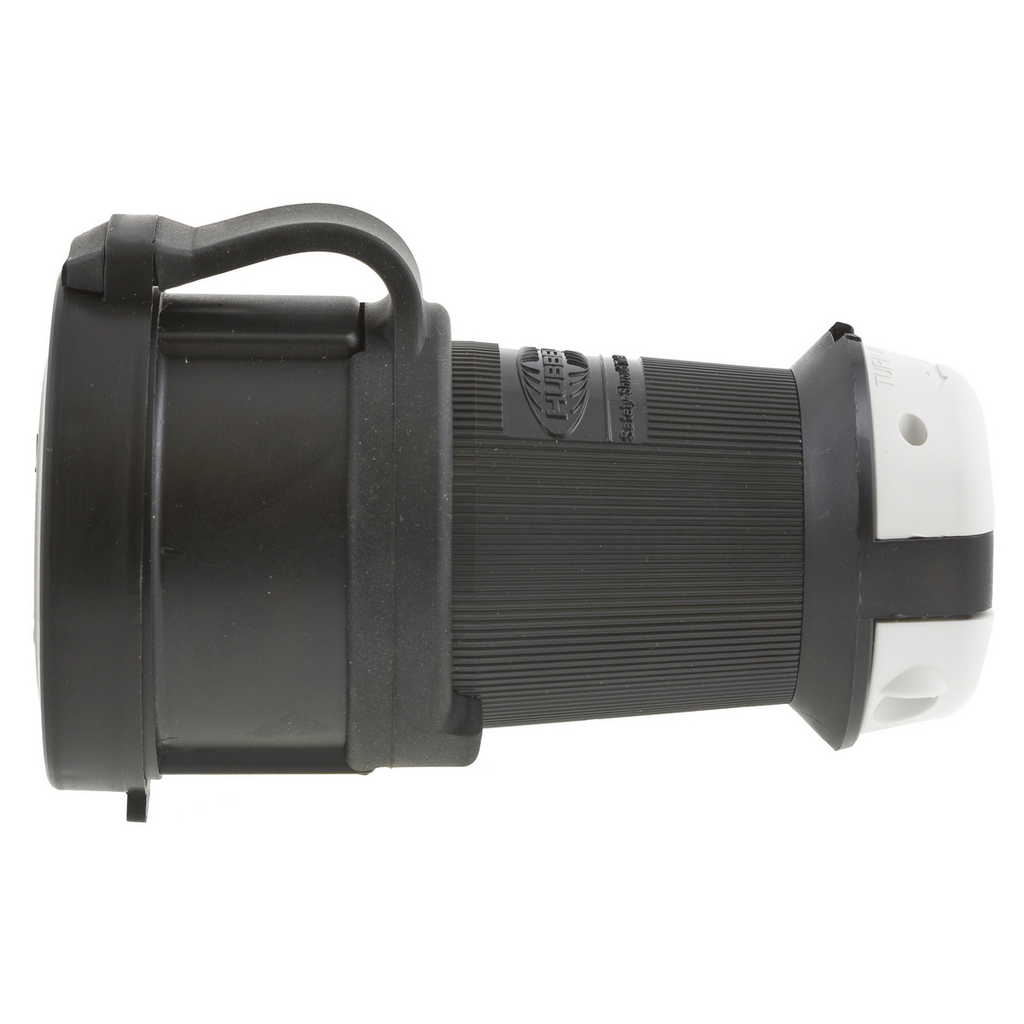

The Hubbell Wiring Device-Kellems HBL2723SW is a heavy-duty grounding cord mount watertight locking connector rated for two hundred fifty volts alternating current and thirty amps. It features three poles and four wires for robust electrical applications. This connector is designed for environments that require a secure and waterproof connection.

• UL Type 4X environmental seal protects the connection while in use.
• Impact-resistant thermoplastic housing suitable for heavy-duty industrial applications.

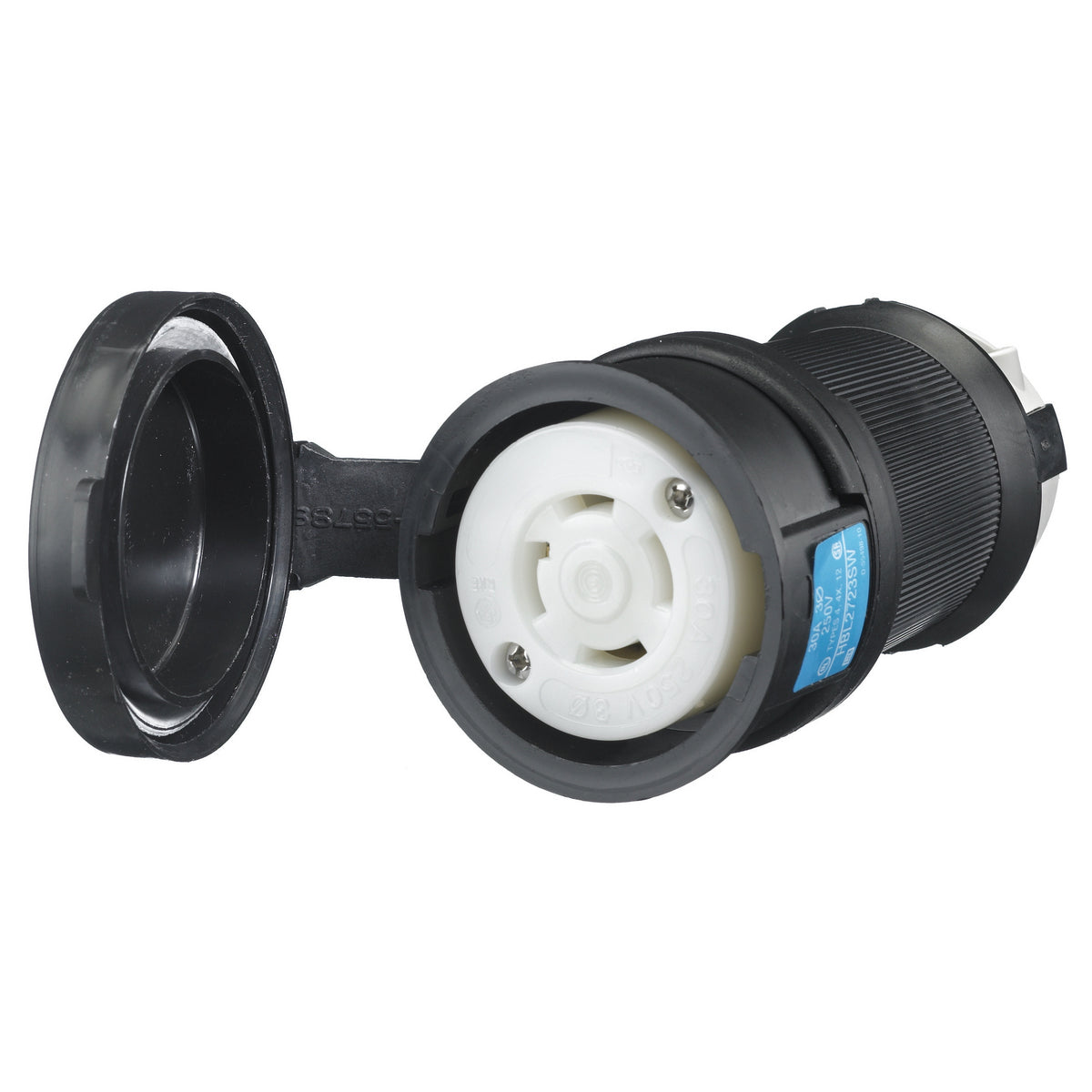

• Included closure cap for enhanced environmental sealing when not in use.

Product Highlights

Engineered for heavy-duty use with advanced sealing to resist moisture ingress, suitable for outdoor and harsh environments.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device-Kellems

Technical Specifications

• MPN: HBL2723SW
• Voltage Rating: 250 VAC
• Amperage Rating: 30 A
• Number of Poles: 3
• Number of Wires: 4
• NEMA Rating: L15-30R
• Temperature Rating: -40 to 75 degrees Celsius
• Material: Composite
• Dimensions: 2.75 inches diameter x 4.4 inches length
• Cord Diameter: 0.35 to 1.15 inches
• Environmental Conditions: Watertight
