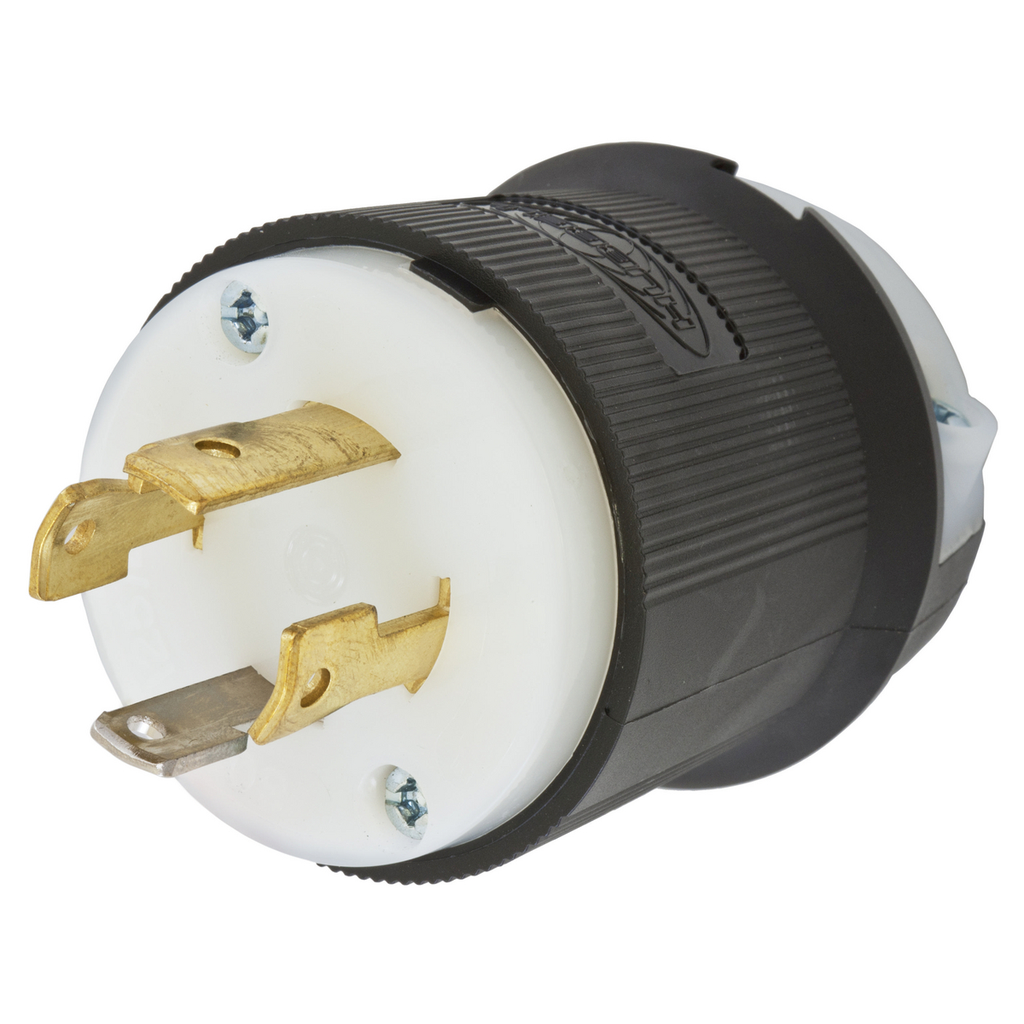

Hubbell Wiring Device-Kellems HBL2711 30A 125/250V AC Twist-Lock Insulgrip Black Nylon Plug

Product Description

The Hubbell Wiring Device-Kellems HBL2711 is a 30 amp, 125/250 volt AC twist-lock plug made from durable black nylon. It features a three-pole, four-wire design for grounding and is ideal for heavy-duty industrial applications. This product is built to withstand robust usage, ensuring reliable connections.

• Designed for extra heavy-duty industrial applications.
• Clear funnel-shaped wire entry makes termination simple.
• Integral dust shield protects the wiring chamber from contaminants.

Product Highlights

Reliable performance for industrial use with features promoting safety and ease of installation.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Catalog Number: HBL2711

Technical Specifications

• Current Rating: 30 A
• Voltage Rating: 125/250 V
• Amperage Rating: 30 A
• Wattage Rating: 7500 W
• Material: Nylon
• NEMA Rating: L14-30P
• Dimensions: 2.33 in x 2.5 in x 2.75 in
• Operating Temperature: -40 degrees C
• Environmental Conditions: Indoor dry unless protected
