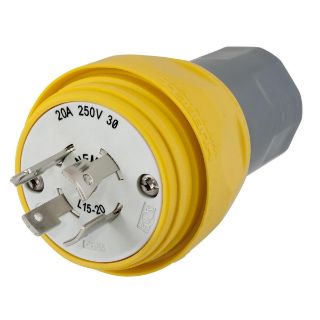

Hubbell Wiring Device-Kellems HBL26W75 3-Phase Watertight Locking Plug 250 VAC 20 A NEMA L15-20P

Product Description

The Hubbell Wiring Device-Kellems HBL26W75 is a twist-lock watertight locking plug designed for industrial and commercial use. It operates at 250 VAC and supports a maximum current of 20 A. With a construction made of thermoplastic elastomer, this plug is suitable for outdoor environments and offers a robust design.

• Rated for 250 VAC, 20 A with three poles and four wires.
• Constructed with thermoplastic elastomer for durability.
• Compatible with NEMA L15-20P configuration.

Product Highlights

This plug includes features to enhance reliability in harsh conditions, including an IP67 rating for dust and water protection, making it ideal for wet locations.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBL26W75

Technical Specifications

• Voltage Rating: 250 VAC
• Amperage Rating: 20 A
• Number of Poles: 3
• Number of Wires: 4
• Dimensions: 2.51 inches L x 2.51 inches W x 3.96 inches H
• Cord Diameter: 3/8 to 7/8 inches
• Temperature Rating: -40 to 60 degrees C
• Dielectric Strength: 2500 VAC
