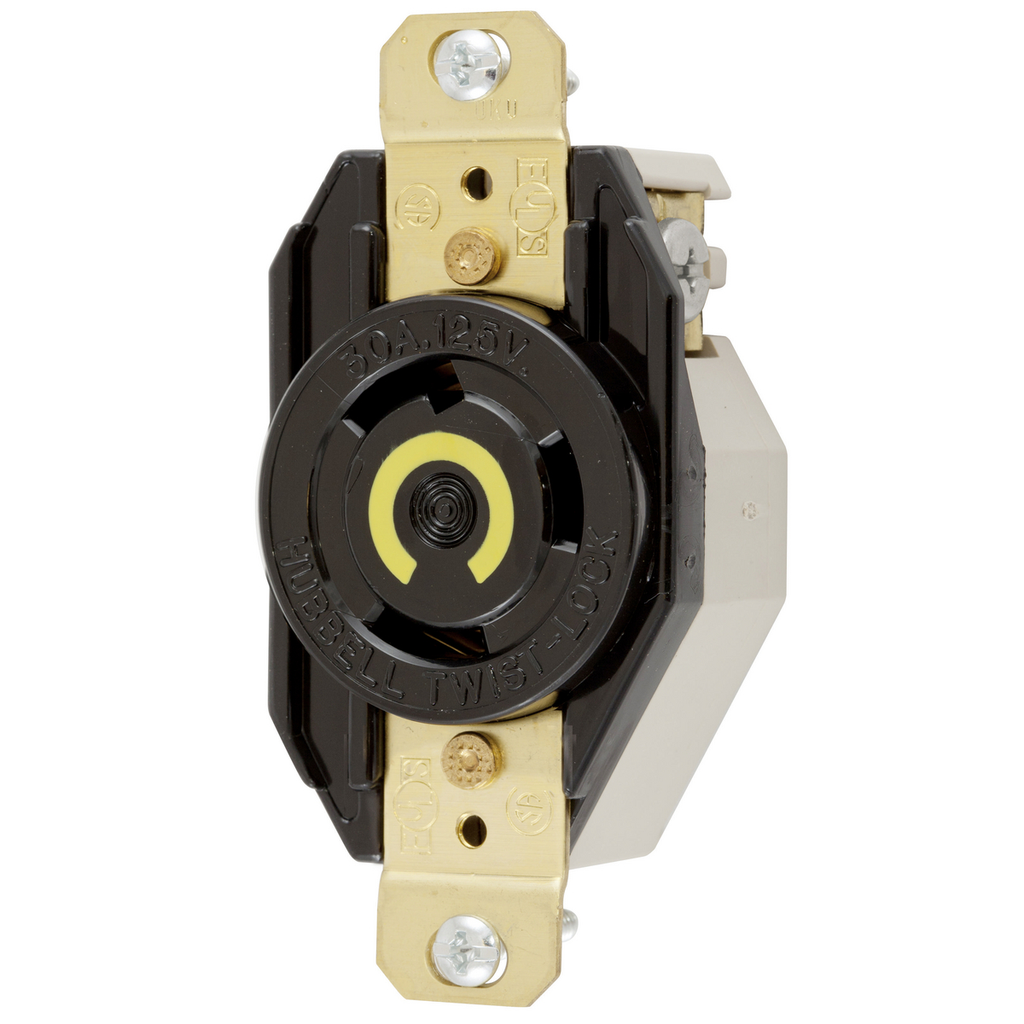

Hubbell Wiring Device-Kellems HBL2610 Twist-Lock Black Nylon Single Flush Receptacle 30A 125V L5-30R

Product Description

The Hubbell Wiring Device-Kellems HBL2610 is a twist-lock receptacle designed for heavy-duty industrial applications. This receptacle operates at thirty amps and one hundred twenty-five volts, featuring a standard L5-30R configuration. It is constructed from durable nylon, making it suitable for demanding environments.

• Wire restraint recess for both back and side wiring
• Face color coding aids in device matching
• All-brass mounting system offers corrosion resistance

Product Highlights

This device ensures secure connections and reduces the risk of terminal loosening. It is designed for indoor use and is rated for reliability in industrial settings.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBL2610

Technical Specifications

• Type: Single Flush Receptacle
• Voltage Rating: 125 Volt
• Current Rating: 30 Amp
• NEMA Rating: L5-30R
• Number of Poles: 2 Pole
• Number of Wires: 3 Wire Grounding
• Dimensions: 3.28 in x 1.90 in x 1.31 in
• Weight: 0.30 lbs
• Wire Size: 16-8 AWG
• Material: Nylon
• Operating Temperature: -40 degrees C to 75 degrees C
• Dielectric Strength: Withstands 2,000V minimum
• Certifications: CSA C22.2 No.42, UL 498
