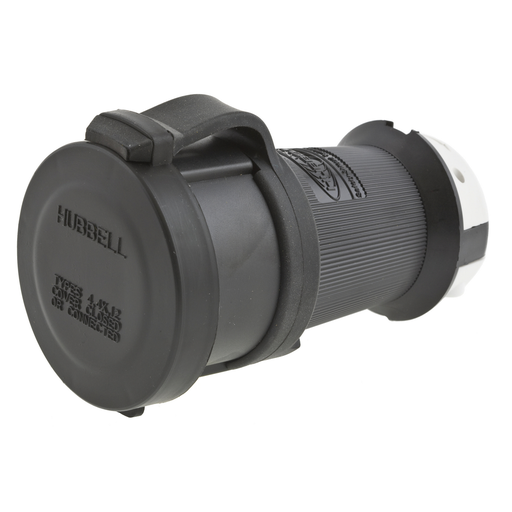

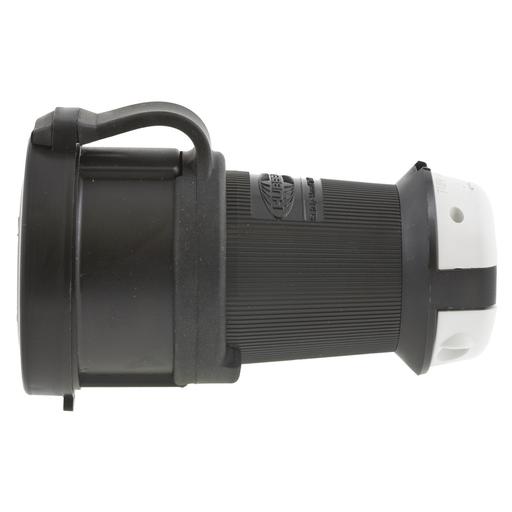

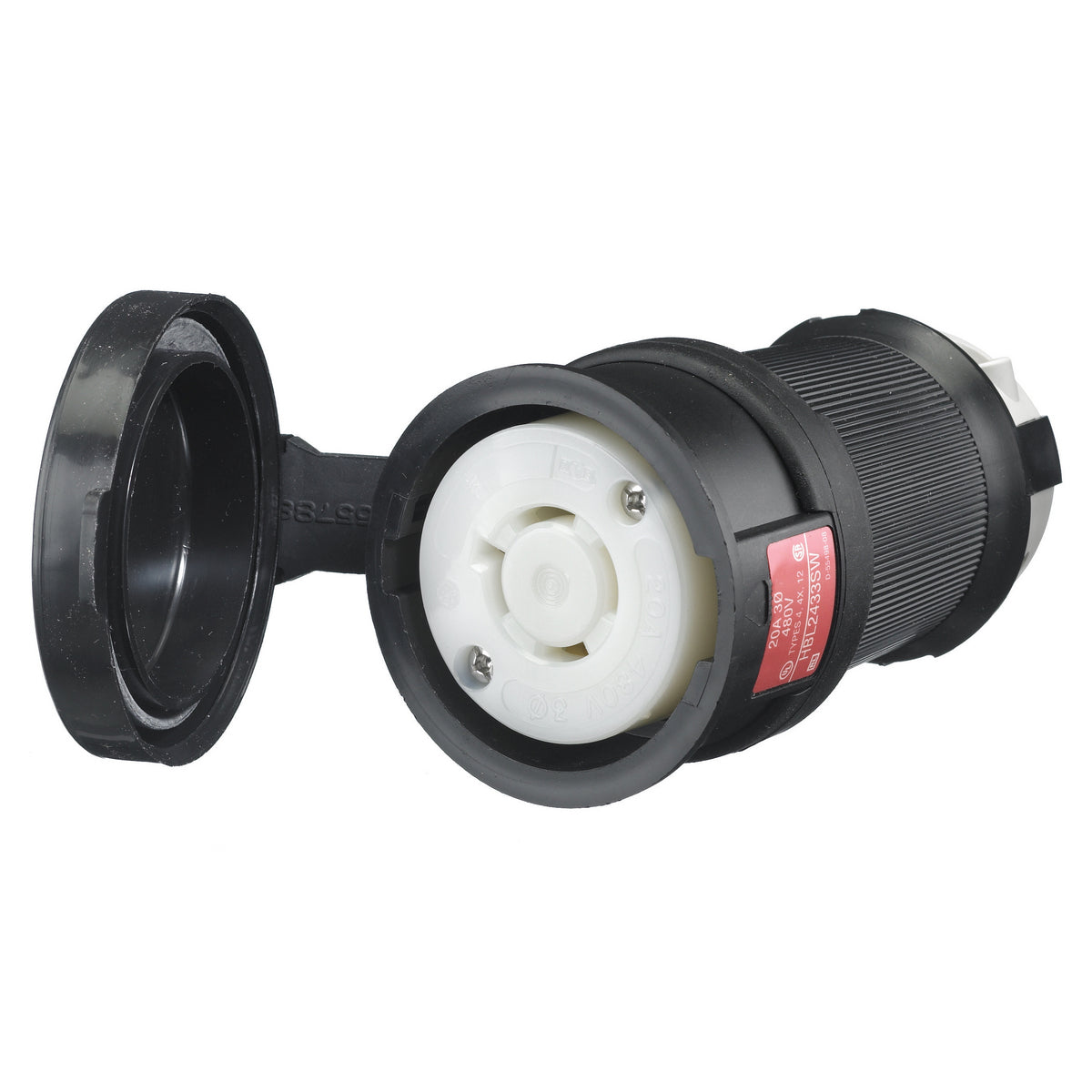

Hubbell Wiring Device-Kellems HBL2433SW 20A 3Phase 480V AC Twist-Lock Watertight Safety-Shroud

Product Description

The Hubbell Wiring Device-Kellems HBL2433SW is a Twist-Lock connector designed for heavy-duty industrial applications. This locking connector features a watertight safety shroud that ensures reliable operation in demanding environments. It is suitable for three-phase applications, rated for four wires and a voltage of four hundred eighty VAC. The connector meets NEMA L16-20R standards and is engineered to handle up to twenty amps to support various power demands.

• Watertight safety-shroud design for reliable electrical connections.
• Applications in heavy-duty industrial environments.
• Impact-resistant construction for enhanced durability.

Product Highlights

Each unit includes a pressure screw terminal connection type designed for easy installation. It protects terminations from excess strain, ensuring a secure fit. The connector operates effectively within temperature extremes ranging from minus forty to seventy-five degrees Celsius.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Type: 3-Phase Female Grounding Heavy Duty Insulated Standard Shrouded Watertight

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 480 VAC
• Number of Poles: 3
• Number of Wires: 4
• Temperature Rating: -40 to 75 degrees C
• Enclosure: IP66
• Material: Composite
• Dimensions: 2.75 inches x 2.75 inches x 4.4 inches
