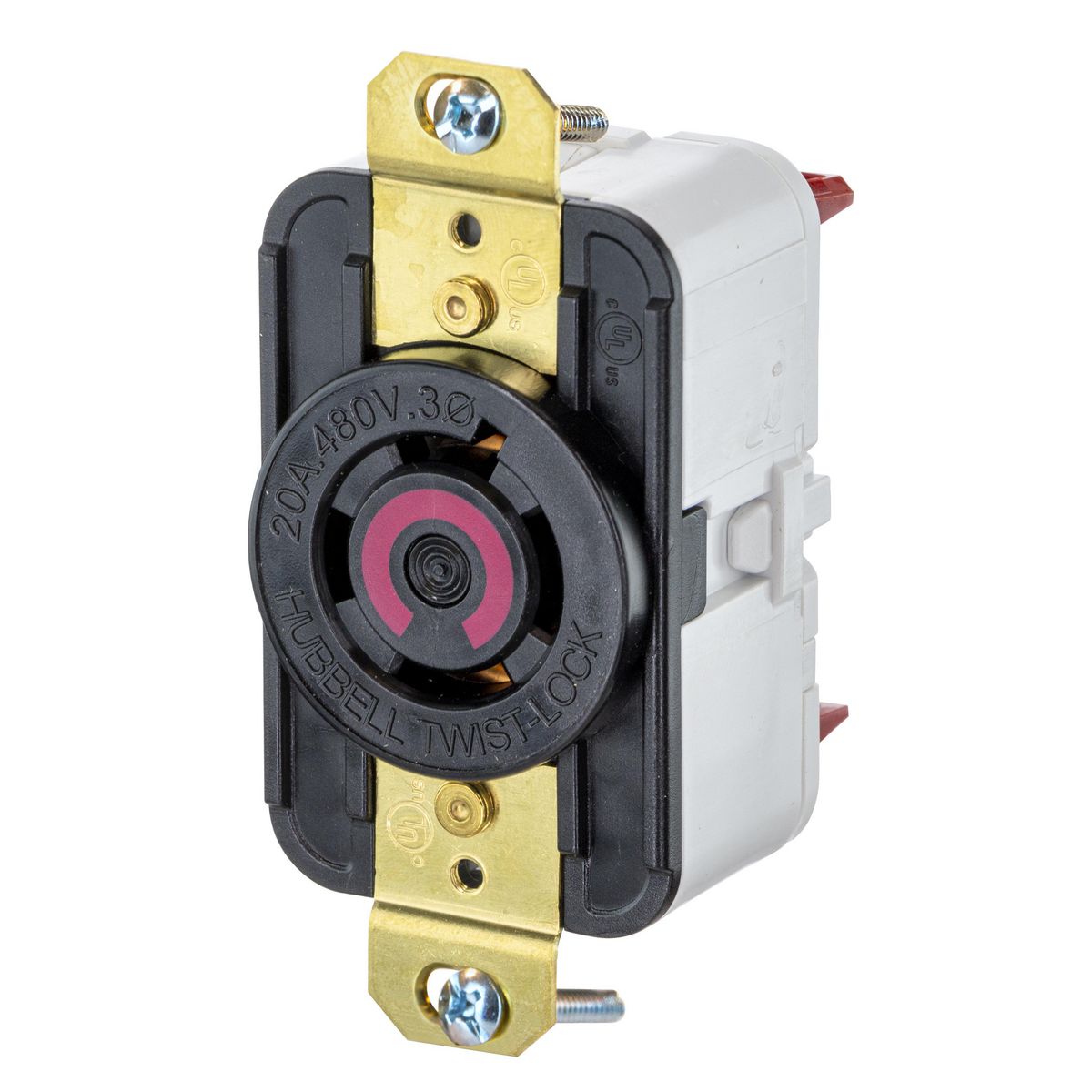

Hubbell Wiring Device-Kellems HBL2430ST HWD Twist-Lock Receptacle 3-Phase Single Flush 480 VAC 20A

Product Description

The Hubbell Wiring Device-Kellems HBL2430ST is a 3-phase single flush locking receptacle designed for reliable electrical connections. It operates at 480 VAC with a current rating of 20 A. This receptacle features a spring termination for easy installation and secure connections.

• 3-pole, 4-wire configuration
• NEMA L16-20R rating
• Temperature rating from -40 to 75 degrees Celsius

Product Highlights

This receptacle is built with a durable nylon enclosure rated IP20. It is suitable for various applications in commercial and industrial environments.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device-Kellems

Technical Specifications

• MPN: HBL2430ST
• Voltage Rating: 480 VAC
• Amperage Rating: 20 A
• Number of Poles: 3
• Number of Wires: 4
• Dimensions: 3.28 inches L x 1.7 inches W x 1.468 inches H
• Material: Nylon
• NEMA Rating: NEMA L16-20R
• Terminal Type: Back/Side Wire
• Country of Origin: CN
• Standards: CSA C22.2 File No. 0.17, CSA C22.2 File No. 42, UL 498, UL 94
