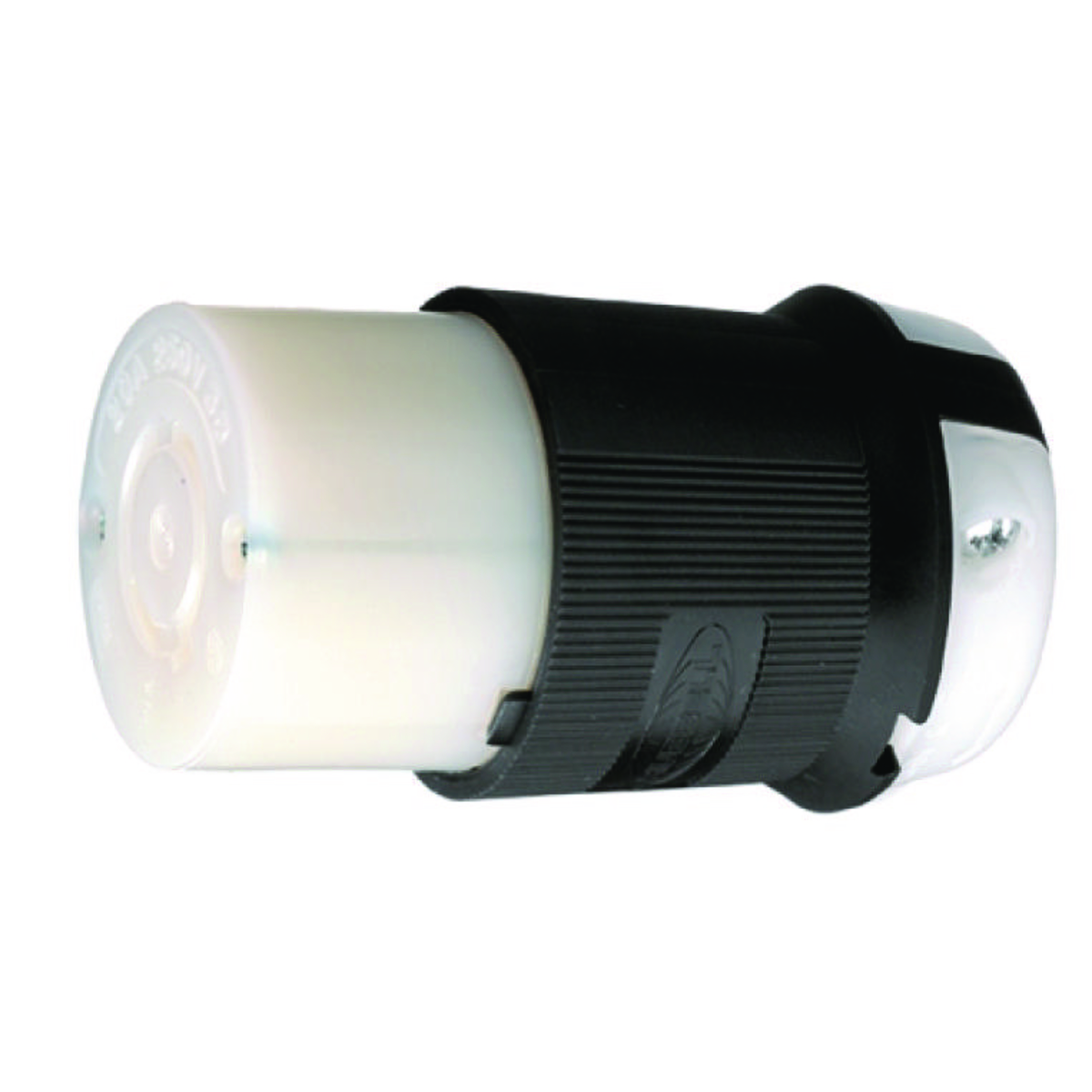

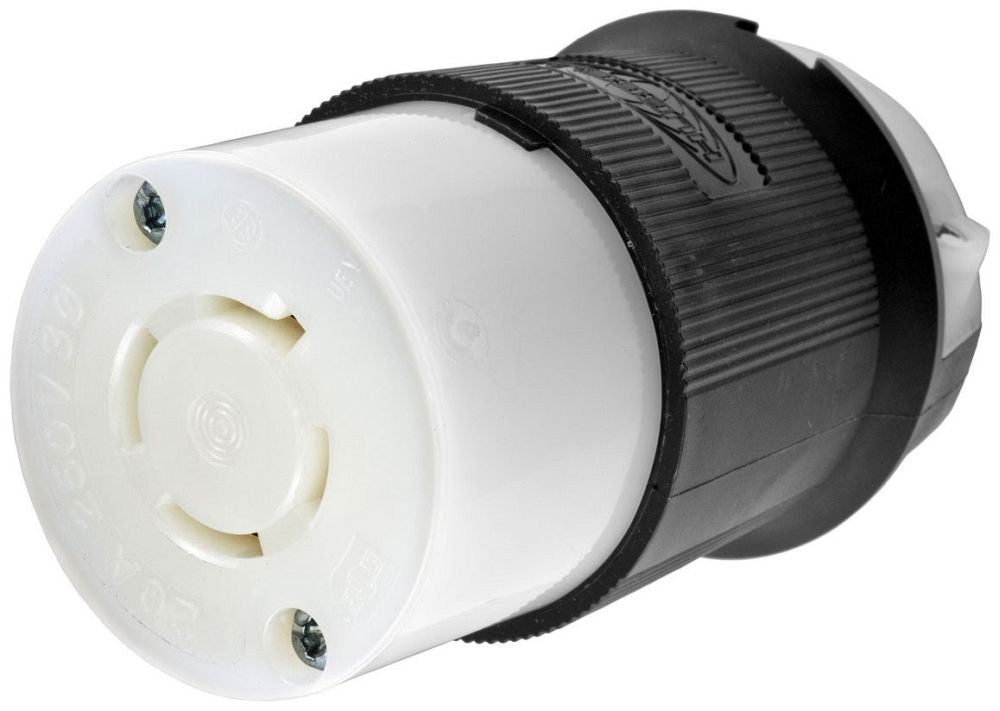

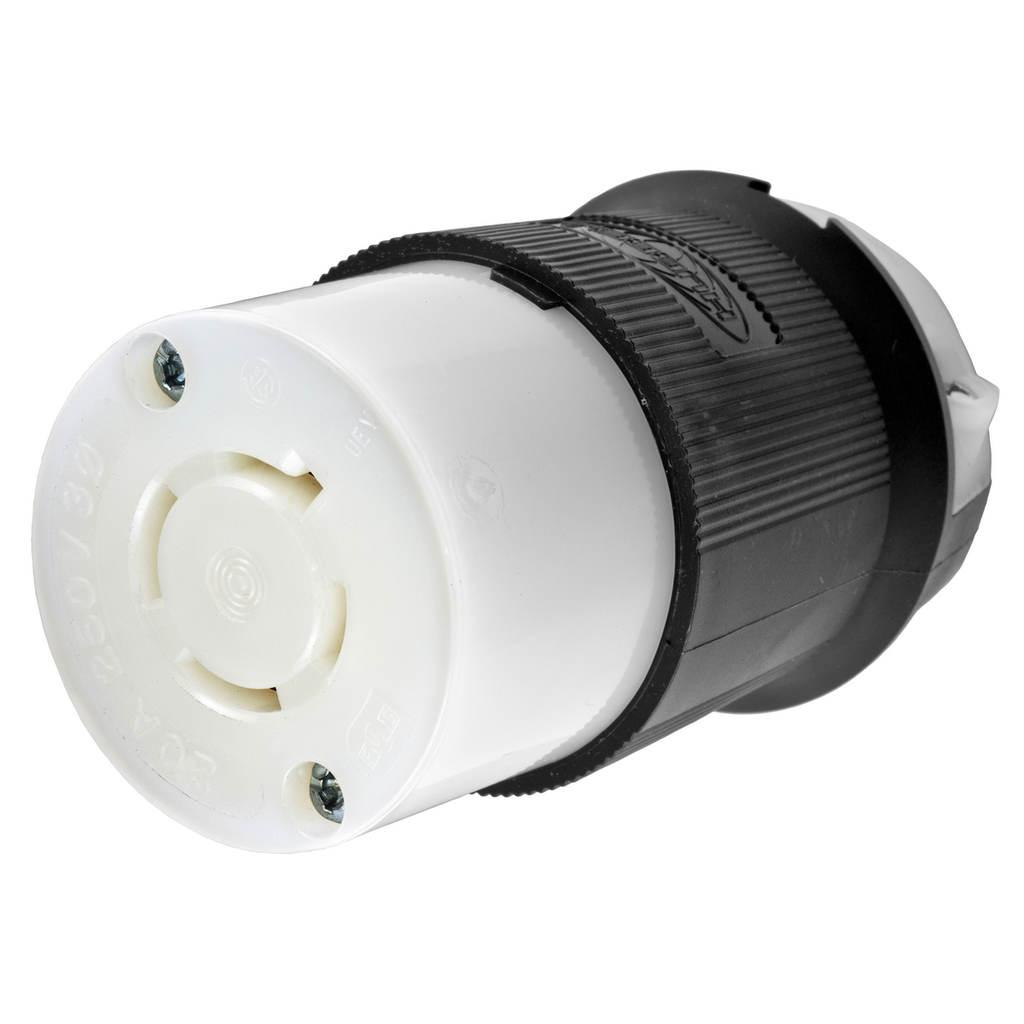

Hubbell Wiring Device-Kellems HBL2423 20A 3Ph 250V AC Twist-Lock INSULGRIP Black Nylon Connector Body

Product Description

The Hubbell Wiring Device-Kellems HBL2423 is a 20 amp, three-phase, 250 volt AC twist-lock Insulgrip connector body. It features a female design that complies with NEMA L15-20R standards. This connector is suitable for heavy duty industrial applications and is designed for use with four wire grounding systems.

• Compatible with wire sizes from 16 to 8 AWG.
• Integrates a superior cord grip design to prevent excess strain on connections.
• Includes an integral dust shield for protection against dust and contaminants.

Product Highlights

This product delivers reliability in demanding environments. Its standard construction meets industry regulations to ensure safe electrical connections.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Catalog Number: HBL2423

Technical Specifications

• Color: Black and White
• Current Rating: 20 Amp
• Voltage Rating: 250 Volt
• Number of Poles: 3 (Three-Pole)
• Number of Wires: 4 (Four-Wire)
• Material: Composite
• Weight: 0.40 lb
• Height: 3.86 inches
• Width: 2.4 inches
• Length: 2.33 inches
• Temperature Rating: -25 to 75 degrees C with impact
• NEMA Rating: L15-20R
