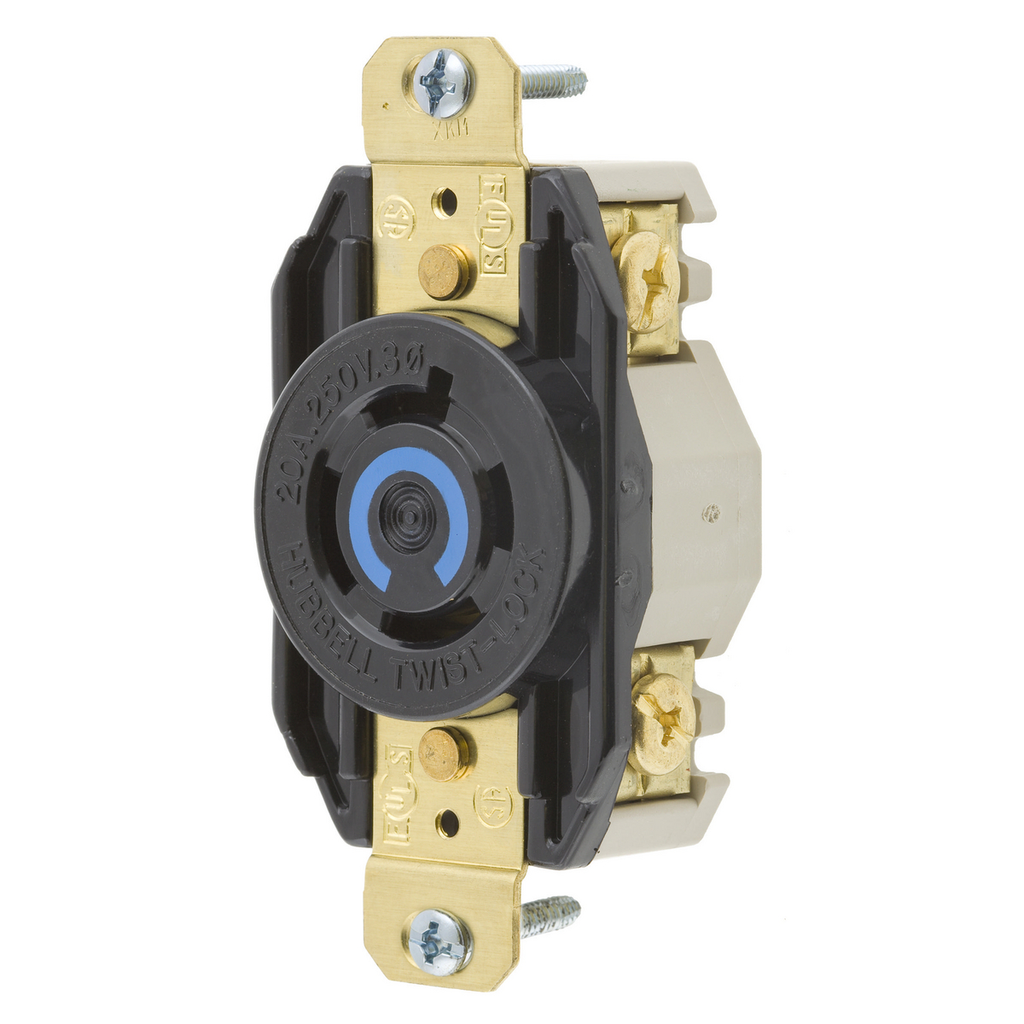

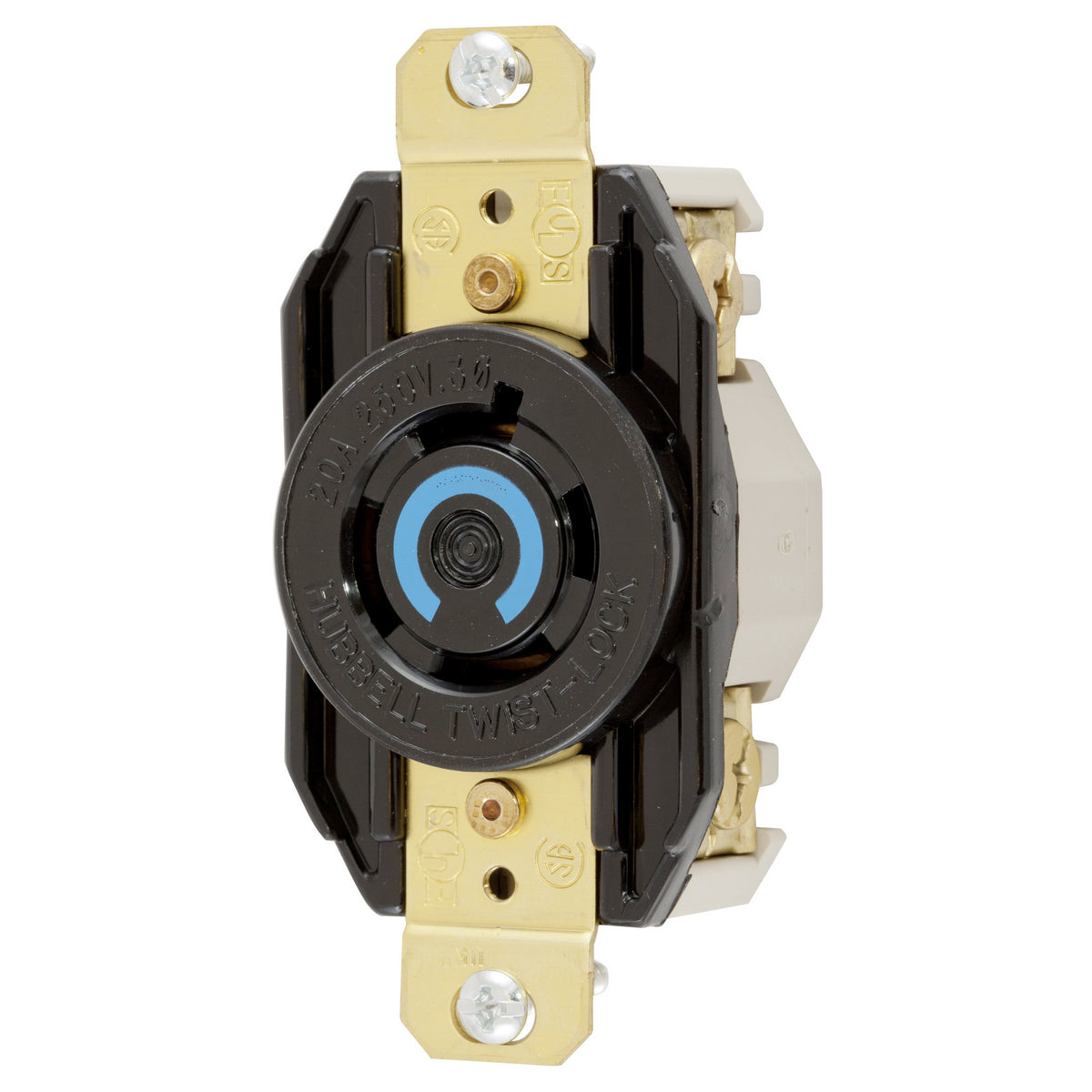

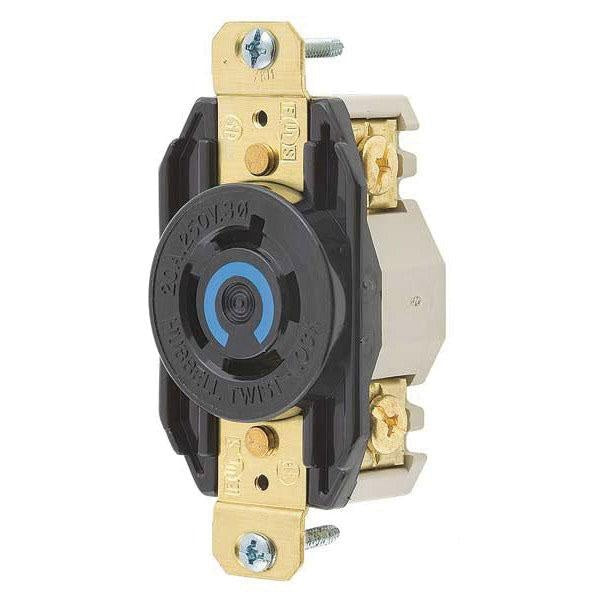

Hubbell Wiring Device-Kellems HBL2420 Flush Mount Single Receptacle 20A 3Ph 250V AC NEMA L15-20R

Product Description

The Hubbell Wiring Device-Kellems HBL2420 is a locking twist-lock receptacle designed for industrial and heavy-duty applications. This device supports a current rating of twenty amps and a voltage of two hundred fifty volts AC. It features a three-pole, four-wire design with grounding, complying with the NEMA L15-20R standard. The receptacle is suitable for flush mounting and includes screw terminal connections for easy installation. Constructed with a nylon face and a thermoplastic body, it ensures durability and resistance to corrosion.

• Constructed with a thermoplastic base for durability.
• Compatible with wire sizes of sixteen to eight AWG.
• Meets UL 498 and CSA C22.2 No.42 standards.

Product Highlights

This receptacle is ideal for heavy-duty industrial use, providing a reliable connection while withstanding extreme environmental conditions.

Product Information

Standard Information

• Brand: Hubbell Wiring Device
• Type: Single Flush Receptacle

Technical Specifications

• MPN: HBL2420
• Current Rating: 20 Amp
• Voltage Rating: 250 Volt AC
• Wattage: 5000 Watt
• Material: Nylon Face
• Mounting Type: Flush

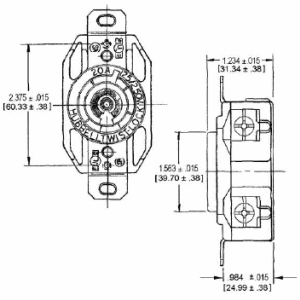

• Dimensions: 3.28 in (Length) x 1.7 in (Width) x 1.23 in (Height)
• Environmental Conditions: Indoor Dry Unless Protected by Additional Means
