Hubbell Wiring Device-Kellems HBL2413 Female Heavy Duty Insulated Grounding Connector 125/250 VAC 20 A NEMA L14-20R

Product Description

The Hubbell Wiring Device-Kellems HBL2413 is a heavy-duty insulated grounding connector. It operates at a voltage of 125/250 VAC and has a current rating of 20 Amps. This locking connector is designed for secure connections in industrial settings. It features three poles and four wires, meeting the NEMA L14-20R standards, making it suitable for various applications.

• Heavy-duty insulated grounding design
• Meets NEMA L14-20R standards
• Operates in a temperature range from -40 to 75 degrees Celsius

Product Highlights

This connector is designed for demanding environments, offering reliable connections and robust performance.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Type: Female Heavy Duty Insulated Grounding Standard

Technical Specifications

• MPN: HBL2413
• Current Rating: 20 A
• Voltage Rating: 125/250 VAC
• Number of Wires: 4
• Number of Poles: 3

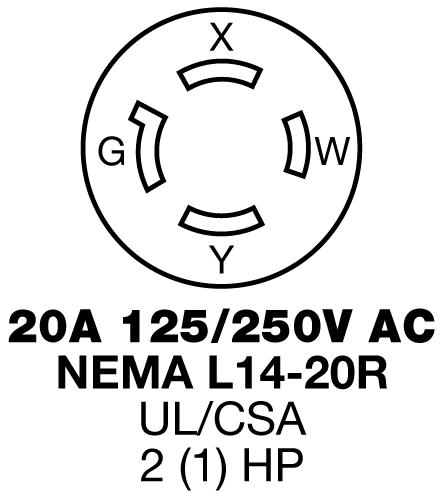

• NEMA Rating: L14-20R

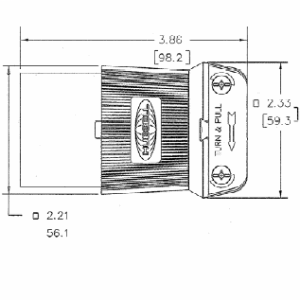

• Dimensions: 2.3 in Diameter x 3.86 in Length
• Cord Diameter: 0.35 to 1.15 in
