Hubbell Wiring Device-Kellems HBL2410ST HWD 20A 125/250V AC 3 Pole 4 Wires Replacement MPN

Product Description

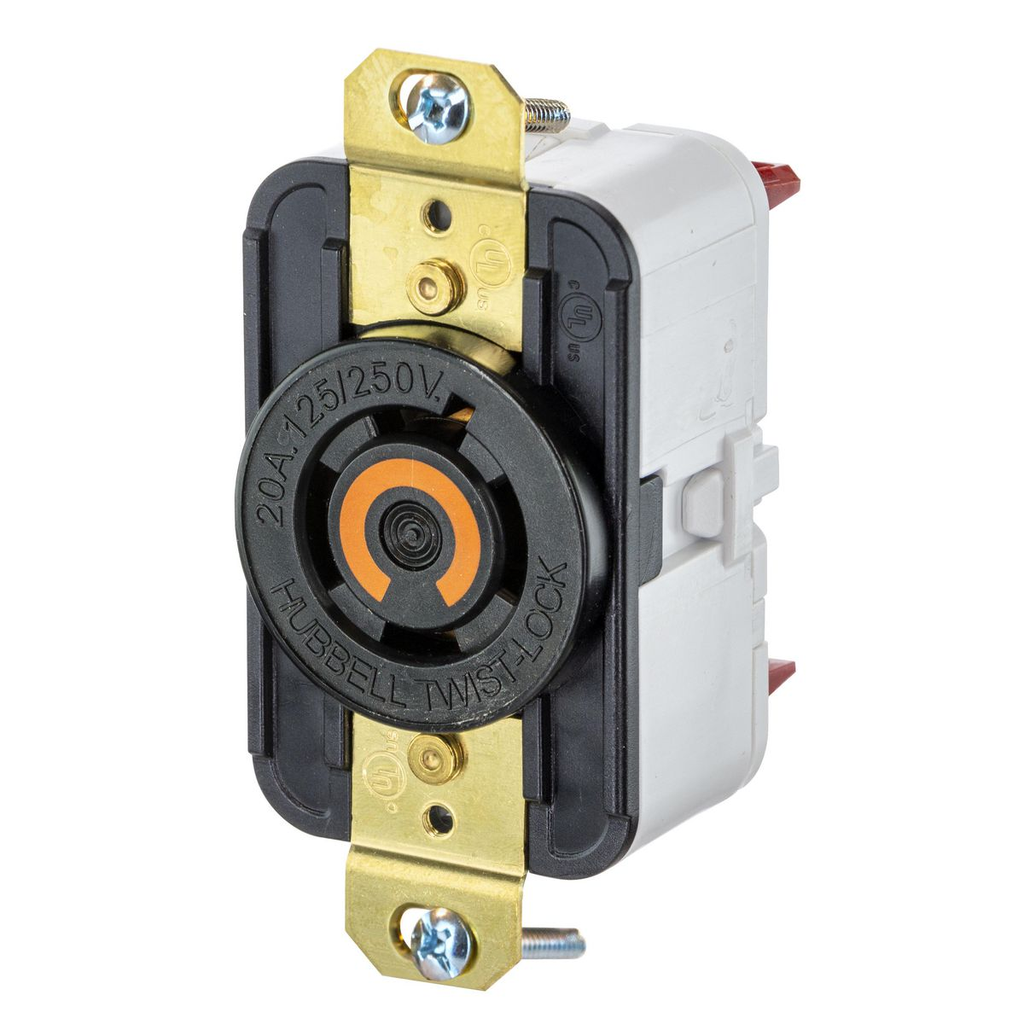

The Hubbell Wiring Device-Kellems HBL2410ST is a twist-lock single flush locking receptacle suitable for 125/250 VAC and rated for 20 A. It features a three-pole, four-wire configuration and is designed for secure connections in various applications.

• Spring termination eliminates the need for tools during installation.
• Constructed with durable nylon for reliability.
• Provides IP20 rated protection in diverse environments.

Product Highlights

This receptacle supports a temperature range of minus forty to seventy-five degrees Celsius and is suitable for use in demanding conditions.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device-Kellems

Technical Specifications

• Voltage Rating: 125/250 VAC
• Amperage Rating: 20 A
• Number of Poles: 3
• Number of Wires: 4
• NEMA Rating: L14-20R
• Temperature Rating: -40 to 75 deg C
• Material: Nylon
• Enclosure: IP20
• Dimensions: 3.28 in L x 1.7 in W x 1.468 in H
