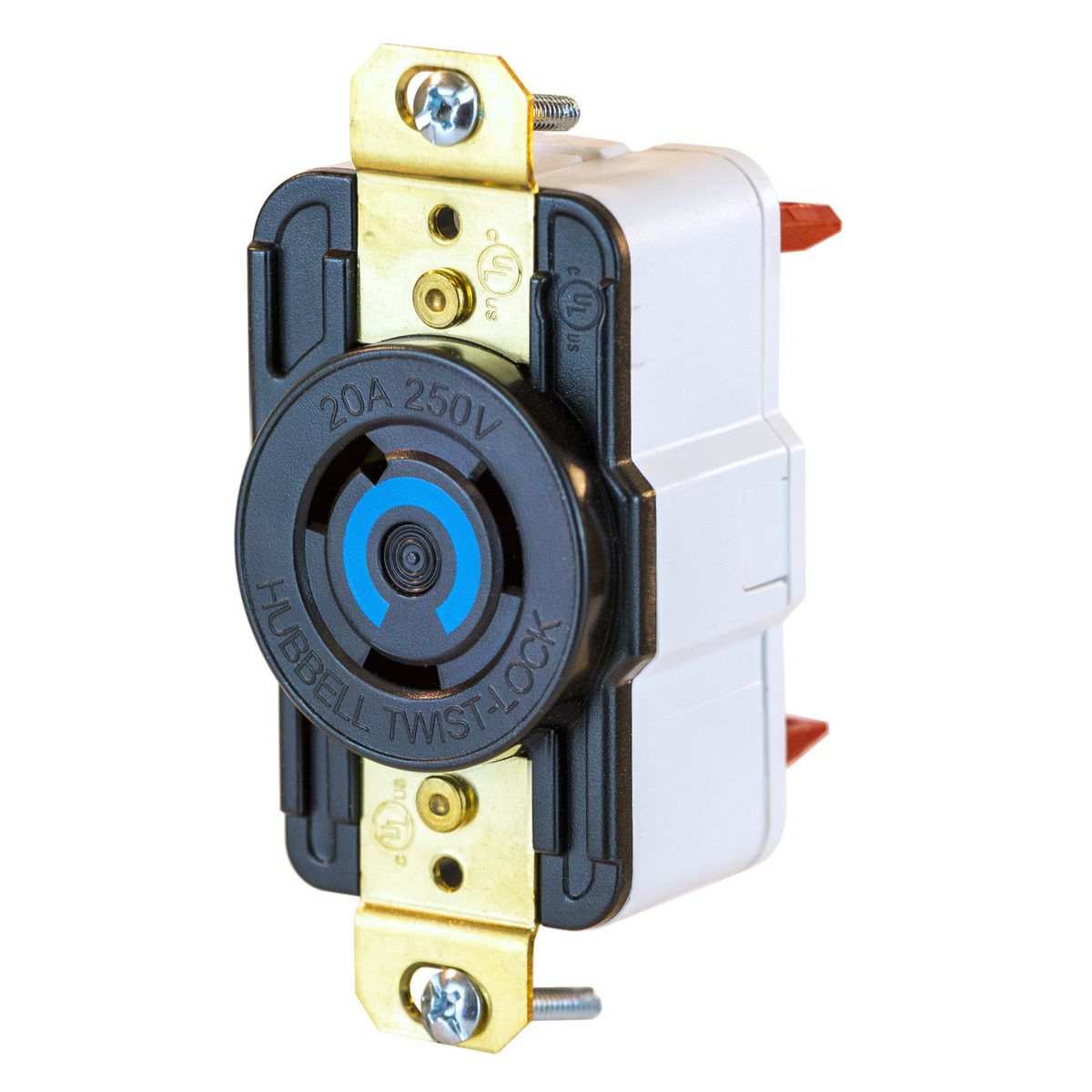

Hubbell Wiring Device-Kellems HBL2320ST HWD Twist-Lock Receptacle 20A 250V

Product Description

The Hubbell Wiring Device-Kellems HBL2320ST is a twist-lock receptacle designed for reliable electrical connections. It operates at 250 volts with a current rating of 20 amps. This model features a grounding single flush design, ensuring safety and efficiency in its applications.

• High impact, abuse-resistant nylon face
• Spring termination for fast and secure connections
• NEMA L6-20R rated for versatility

Product Highlights

This receptacle is ideal for heavy-duty industrial applications, providing a secure and reliable connection in demanding environments.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBL2320ST

Technical Specifications

• Voltage Rating: 250 V
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Dimensions: 1.7 in W x 1.468 in D x 2.77 in H
• Temperature Rating: -40 to 75 deg C
• Material: Nylon
• NEMA Rating: L6-20R
• Environmental Conditions: Indoor Dry
