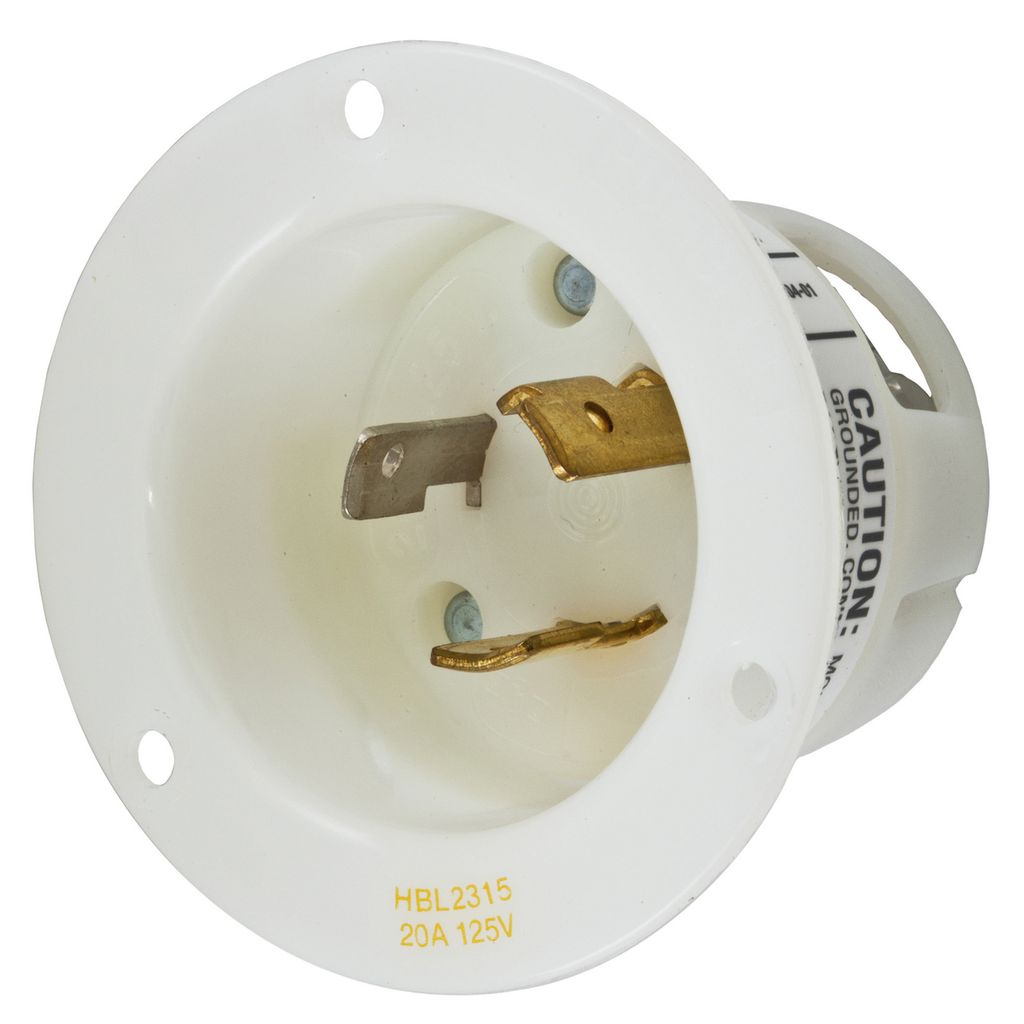

Hubbell Wiring Device-Kellems HBL2315 HWD 1-Phase Extra Heavy Duty Grounding Screw Mount Locking Flanged Inlet

Product Description

The Hubbell Wiring Device-Kellems HBL2315 is a 1-Phase extra heavy duty grounding screw mount locking flanged inlet. This product is rated for 125 VAC and 20 A, featuring two poles and three wires. The design incorporates a nylon body that offers impact resistance and chemical protection, making it suitable for demanding environments.

• Durable nylon construction provides impact and chemical resistance.
• Screw terminal connection ensures secure wiring.
• Compatible with NEMA L5-20P standards for reliable performance.

Product Highlights

This locking flanged inlet is designed for industrial applications, ensuring safe and efficient electrical connections under extra heavy duty conditions.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Type: 1-Phase Extra Heavy Duty Grounding Screw Mount

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Horsepower: 1 hp
• Number of Poles: 2
• Number of Wires: 3

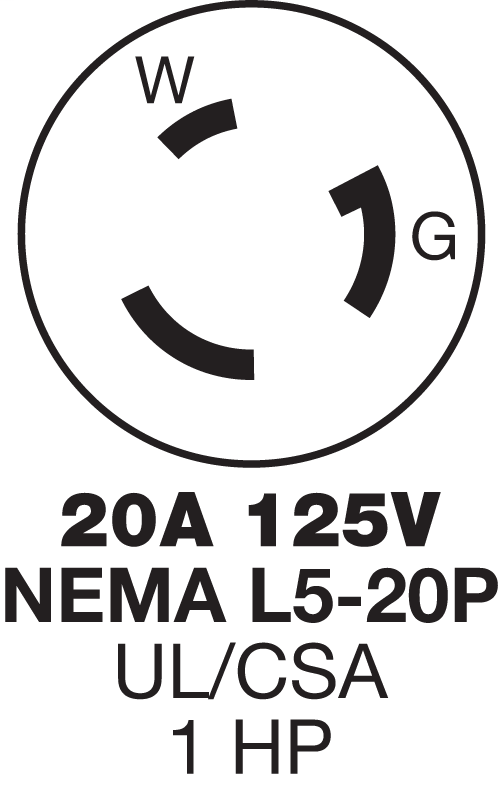

• NEMA Rating: L5-20P
• Material: Nylon
• Enclosure: NEMA 4/4X/12/IP44

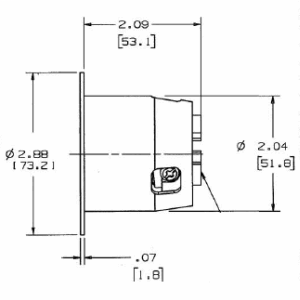

• Dimensions: 2.88 x 2.88 x 2.09 inches
• Temperature Rating: -40 to 75 degrees C
