Hubbell Wiring Device-Kellems HBL21414B HWD Grounding Heavy Duty Cord Mount Locking Connector 600 VAC/250 VDC 20/30 A

Product Description

The Hubbell Wiring Device-Kellems HBL21414B is a grounding heavy-duty cord mount locking connector designed for industrial applications. It operates at a voltage rating of six hundred volts alternating current and two hundred fifty volts direct current. This connector supports an amperage rating of twenty to thirty amps, making it suitable for a wide range of electrical setups.

• Designed for three poles and three wires
• Temperature rated from minus forty to seventy-five degrees Celsius
• Durable nylon material with an IP30 enclosure

Product Highlights

The HBL21414B offers reliable connection and safety for heavy-duty applications. It features pressure screw terminals for securing connections effectively.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Type: Grounding Heavy Duty Cord Mount

Technical Specifications

• Voltage Rating: 600 VAC/250 VDC
• Amperage Rating: 20/30 A
• Number of Poles: 3
• Number of Wires: 3
• Material: Nylon
• Enclosure: IP30

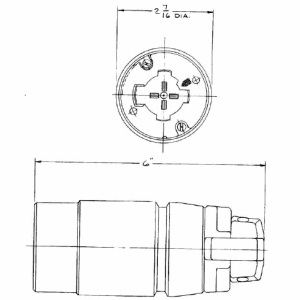

• Overall Dimensions: 6 x 2.44 x 2.44 in
• Cord Diameter: 0.63 to 1.2 in
• Temperature Rating: -40 to 75 degrees Celsius
