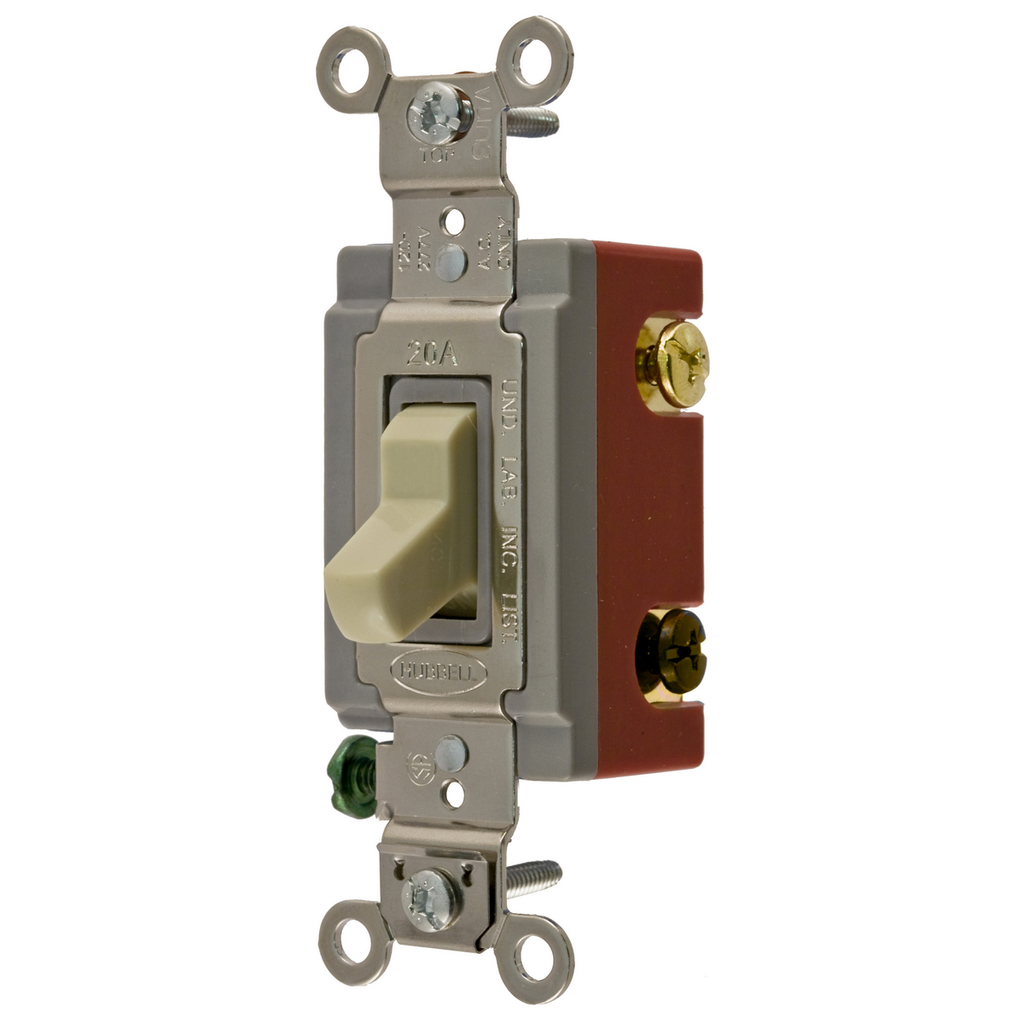

Hubbell Wiring Device-Kellems HBL1224I 4-Way Extra Heavy Duty General Purpose Standard Toggle Switch 20 A 120 to 277 VAC

Product Description

The Hubbell Wiring Device-Kellems HBL1224I is a 4-way extra heavy-duty toggle switch designed for general-purpose applications. It operates at a voltage of one hundred twenty to two hundred seventy-seven VAC and has a current rating of twenty amps. This switch is suitable for various industrial environments.

• Rated for 20 amps and 5540 watts
• Features threaded mounting and back/side wire terminal connection
• Operates over a temperature range of -40 to 75 degrees Celsius

Product Highlights

This toggle switch is ideal for industrial and general-purpose use. It ensures reliable performance through fifty thousand operating cycles.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBL1224I

Technical Specifications

• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Power Rating: 5540 W
• Dimensions: 4.06 in H x 1.31 in W x 2.93 in D
• Contact Configuration: 2-Position
• Number of Poles: 2
• Material: Thermoset
• Environmental Conditions: -40 to 75 degrees Celsius
