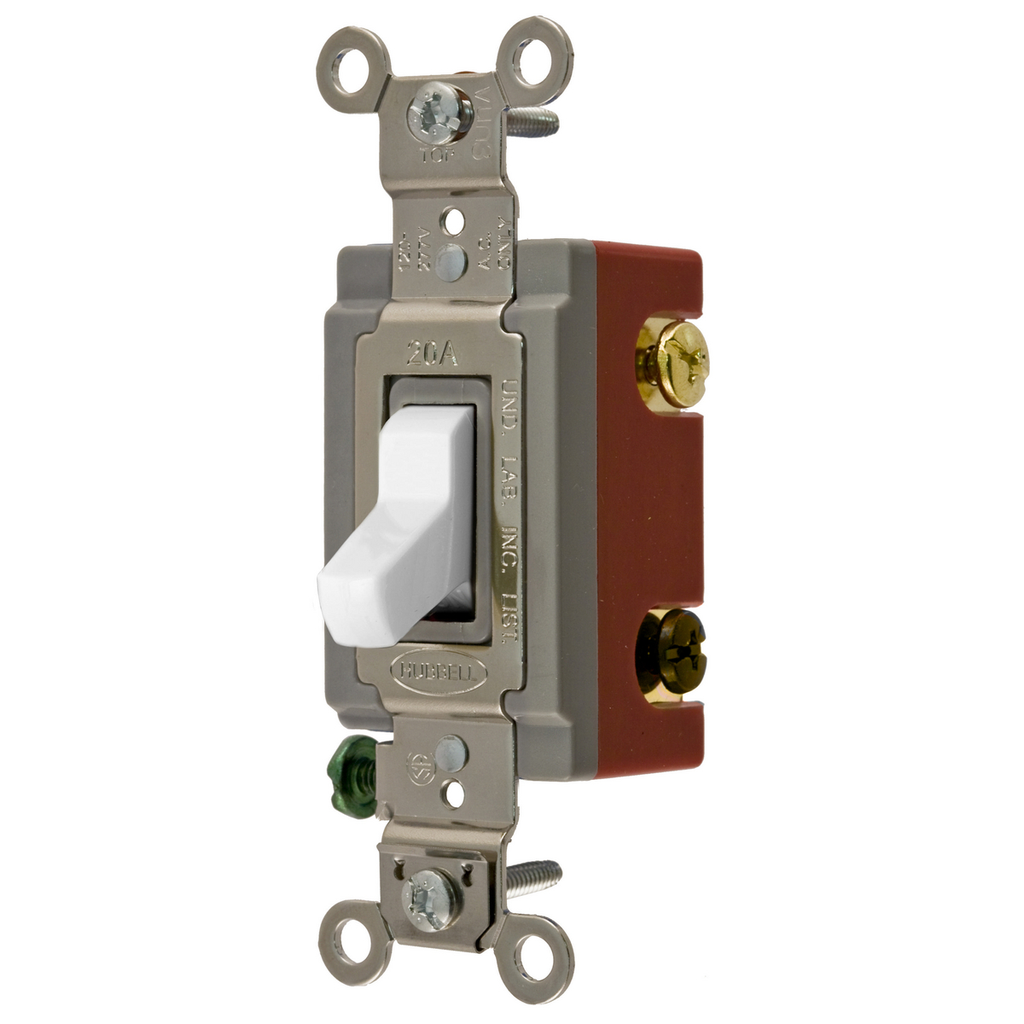

Hubbell Wiring Device-Kellems HBL1223W HWD 20A 120 to 277 VAC 3-Way Extra Heavy Duty General Purpose Toggle Switch

Product Description

The Hubbell Wiring Device-Kellems HBL1223W is a three-way extra heavy-duty general-purpose toggle switch. It operates at a voltage range of 120 to 277 VAC and has a maximum current of 20 A. This model is designed for industrial applications and meets high durability standards.

• 3-Way toggle switch configuration
• Back and side wired for flexible installation
• Operates in temperatures from -40 to 75 degrees Celsius

Product Highlights

Reliable performance for industrial and general-purpose applications.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device-Kellems

Technical Specifications

• Type: 3-Way Extra Heavy Duty General Purpose Standard
• Power Rating: 5540 W
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Operating Cycles: 50000 cycles
• Dimensions: 4.06 in H x 1.31 in W x 1.87 in D
• Contact Configuration: 2-Position
• Environmental Conditions: -40 to 75 degrees C
• Material: Thermoset
• Mounting: Threaded
