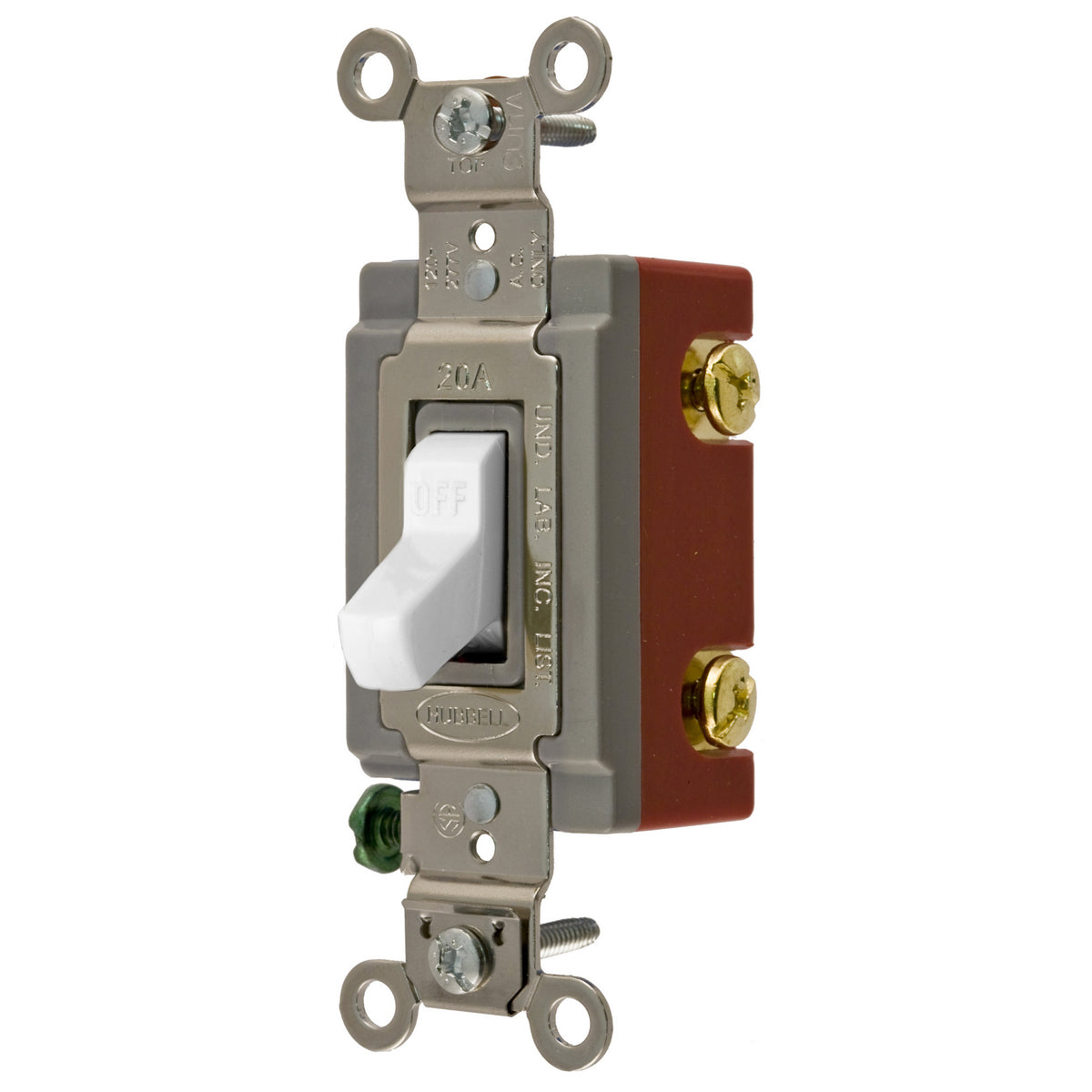

Hubbell Wiring Device-Kellems HBL1222W Toggle Switch 20A 120/277 VAC

Product Description

The Hubbell Wiring Device-Kellems HBL1222W is a toggle switch designed to handle high power demands. This 2-position extra heavy duty industrial grade switch operates at a voltage rating of 120 to 277 VAC and an amperage rating of 20 A. It is suited for general-purpose applications in industrial settings.

• Durable nylon toggle and thermoset body
• Supports back and side wiring connections
• Rated for 50,000 operating cycles

Product Highlights

This switch is ideal for various industrial applications, providing reliable performance with its robust construction. It meets UL standards and is CSA certified, ensuring safety and durability.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Catalog Number: HBL1222W

Technical Specifications

• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Power Rating: 5540 W
• Number of Poles: 2
• Contact Configuration: Two Position
• Operating Cycles: 50000
• Environmental Conditions: -40 to 75 degrees C
• Dimensions: 4.06 inches H x 1.31 inches W x 1.87 inches D
