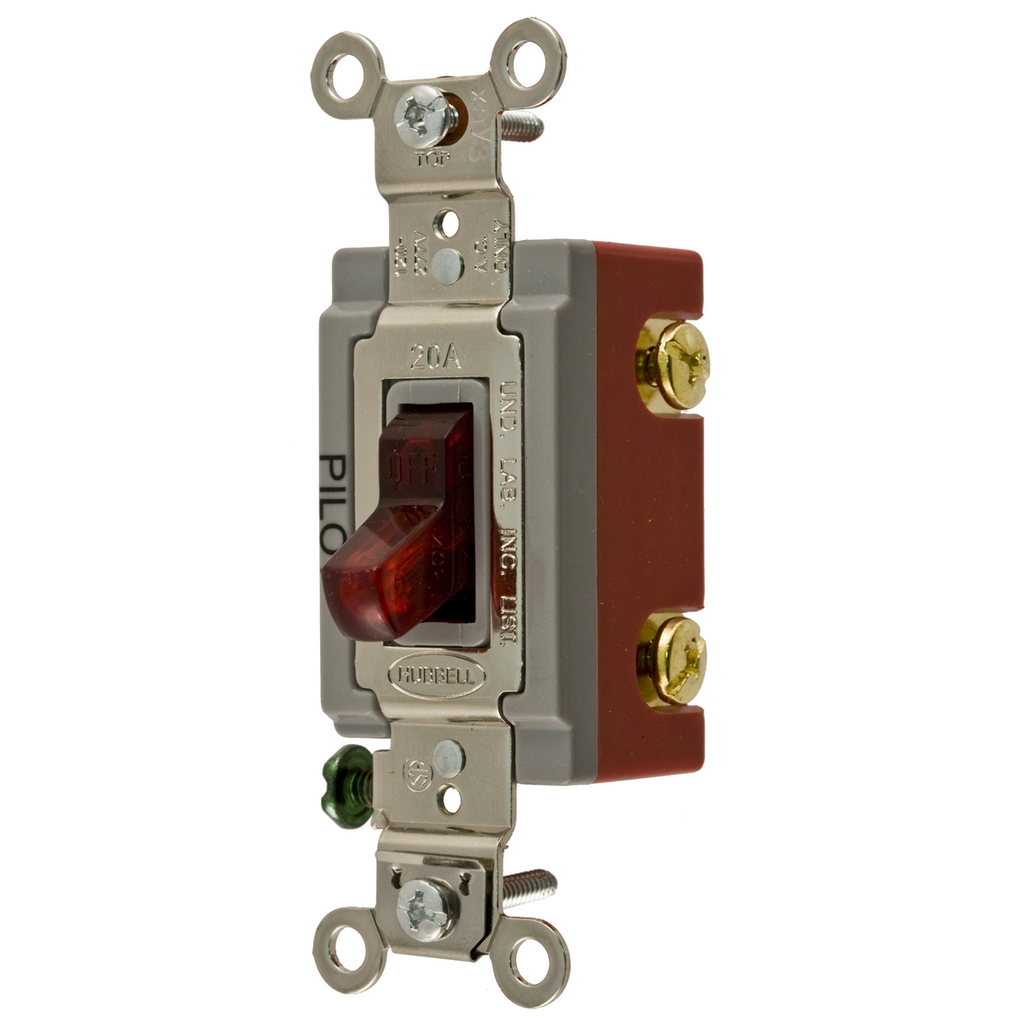

Hubbell Wiring Device-Kellems HBL1222PL HWD Extra Heavy Duty General Purpose Pilot Light Standard Toggle Switch 120 to 277VAC 2-Pole

Product Description

The Hubbell Wiring Device-Kellems HBL1222PL is a pilot light toggle switch designed for heavy-duty applications. This switch operates at a voltage range of 120 to 277 VAC and has a power rating of 20 Amps with a maximum capacity of 5540 Watts. It features a two-position contact configuration and is built to withstand up to 50000 operating cycles.

• Durable thermoset material for long-lasting use.
• Threaded mounting and back/side wire terminals facilitate easy installation.
• Red toggle actuator for clear visibility.

Product Highlights

This toggle switch is suitable for industrial applications and is certified for safety with standards like CSA and UL. The switch is designed for indoor dry environments and operates effectively under various conditions ranging from negative forty to seventy-five degrees Celsius.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBL1222PL

Technical Specifications

• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Power Rating: 2 hp, 5540 W
• Number of Poles: 2
• Operating Cycles: 50000
• Environmental Conditions: -40 to 75 deg C
• Dimensions: 4.06 in H x 1.31 in W x 1.86 in D
• Actuator Type: Toggle
