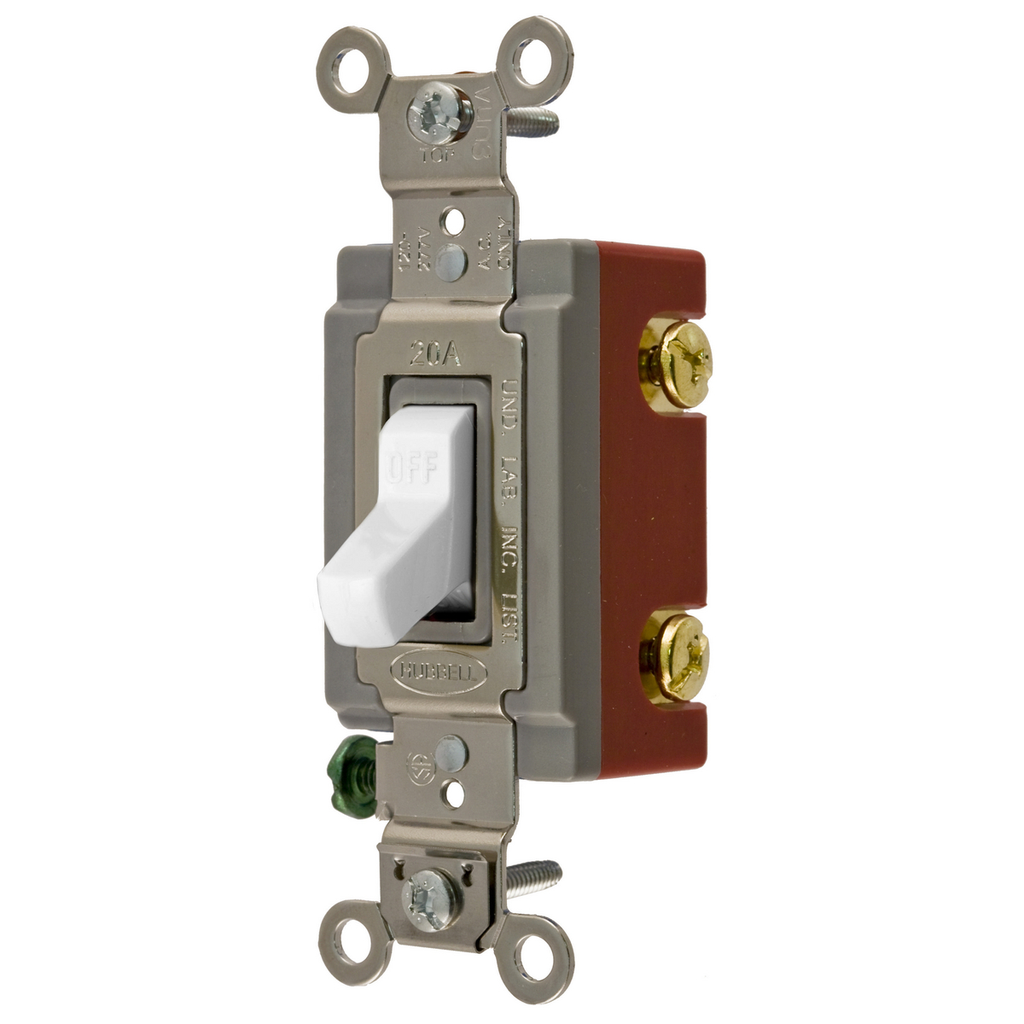

Hubbell Wiring Device-Kellems HBL1221W Extra Heavy Duty General Purpose Standard Toggle Switch 20 A 120 to 277 VAC

Product Description

The Hubbell Wiring Device-Kellems HBL1221W is a toggle switch designed for extra heavy duty applications. Capable of handling voltages from 120 to 277 VAC and up to 20 amps, this switch is built for industrial and general purpose use.

• Durable thermoset housing
• Back and side wire terminal options
• 50000 operating cycles for extended reliability

Product Highlights

This switch is suitable for various environments and can withstand temperatures ranging from minus forty to seventy-five degrees Celsius. Its large brass binding head screws ensure secure and easy wiring for both solid and stranded copper wires.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBL1221W

Technical Specifications

• Power Rating: 5540 W
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Contact Configuration: 2-Position
• Dimensions: 4.06 inches H x 1.31 inches W x 1.87 inches D
• Operating Cycles: 50000 cycles
• Color: White
• Material: Thermoset
• Mounting Type: Threaded
