Product Description

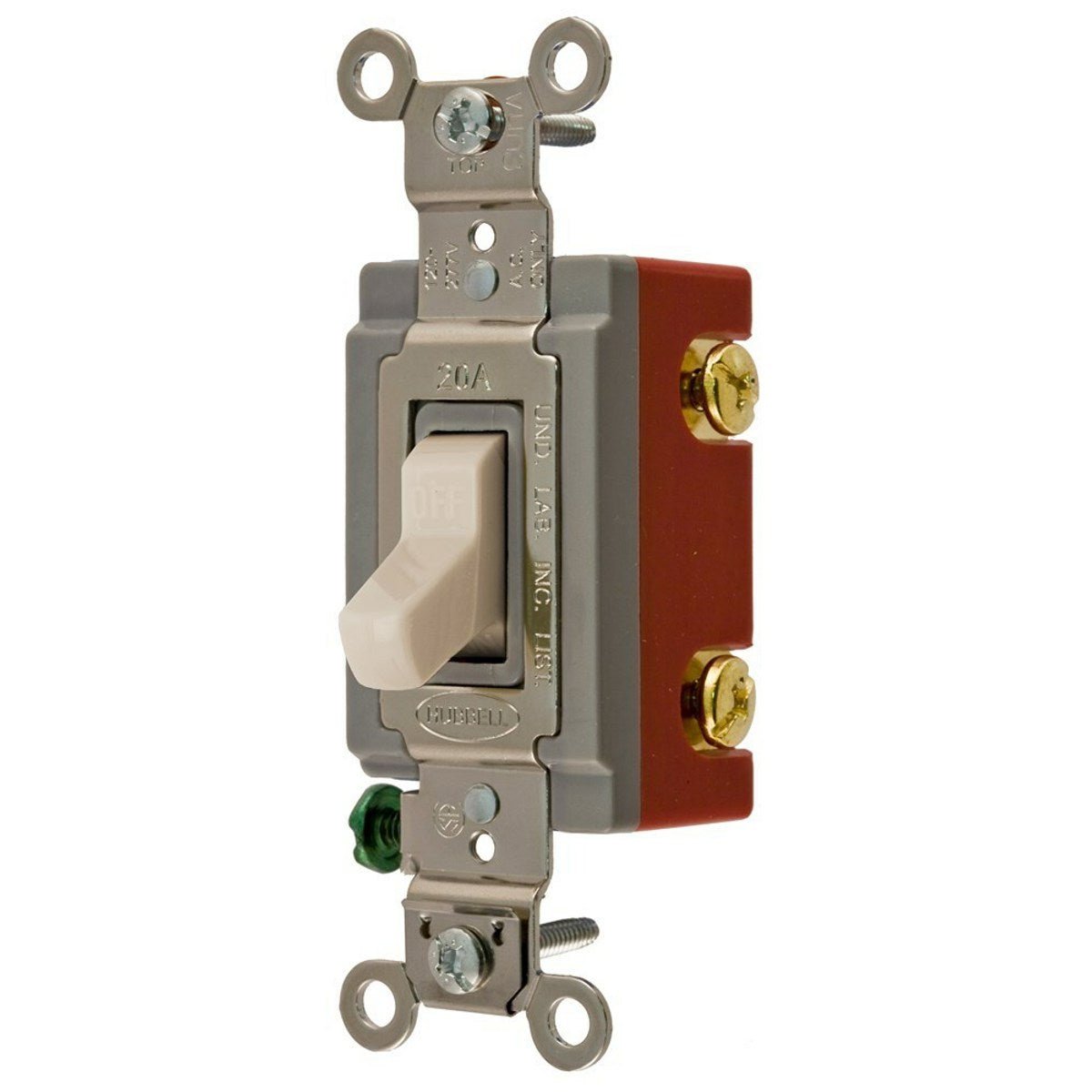

The Hubbell Wiring Device - Kellems HBL1221LA is a heavy-duty toggle switch designed for industrial applications. This switch operates on a voltage range of one hundred twenty to two hundred seventy-seven volts AC and has a current rating of twenty amps. It is suitable for back and side wiring, making it flexible for various installation situations.
- Amperage rating of twenty amps
- Standard product with UL listing
- Fits in standard toggle switch boxes and compatible with many switch configurations
Product Highlights
The HBL1221LA is ideal for controlling lighting and other electrical devices in industrial settings.
Product Information
Standard Information
-
Brand: Hubbell Wiring Device - Kellems
-
Category: Wiring Devices and Accessories
Technical Specifications
-
Catalog Number: HBL1221LA
-
Manufacturer: Hubbell Wiring Device-Kellems
-
UPC: 783585189086
-
Amperage Rating: 20A
-
Voltage Rating: 120-277V AC
-
Number of Poles: 1
-
Operating Cycles: 50,000
-
Operating Temperature: Maximum 75 Degrees C, Minimum -40 Degrees C
-
Size: 4.06 inches x 1.31 inches x 1.87 inches
-
Country of Origin: China
-
Environmental Conditions: Indoor dry unless protected by additional means
