Product Description
The Hubbell Wiring Device-Kellems HBL1221I is an extra heavy-duty general-purpose toggle switch designed for industrial applications. It operates at a voltage range of 120 to 277 VAC and can handle up to twenty amperes of current, providing a power rating of five thousand five hundred forty watts. This switch features a two-position contact configuration and is suitable for various general-purpose applications.
- Rated for 20 A and 5540 W power
- Operating temperature range of -40 to 75 degrees Celsius
- Back and side wired for easy installations
Product Highlights
The HBL1221I toggle switch is built for durability and reliability in demanding settings, making it ideal for industrial and general-purpose applications.
Product Information
Standard Information
-
Brand: Hubbell Wiring Device-Kellems
-
Manufacturer: Hubbell Wiring Device
Technical Specifications
-
Power Rating: 5540 W
-
Voltage Rating: 120 to 277 VAC
-
Amperage Rating: 20 A
-
Number of Poles: 1
-
Operating Cycles: 50000 cycles
-
Material: Thermoset
-

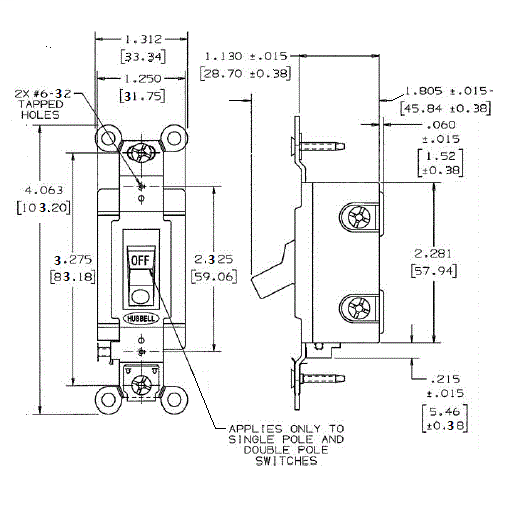

Dimensions: 4.06 inches H x 1.31 inches W x 2.93 inches D
-
Environmental Conditions: -40 to 75 degrees Celsius
-
Contact Configuration: 2-Position
