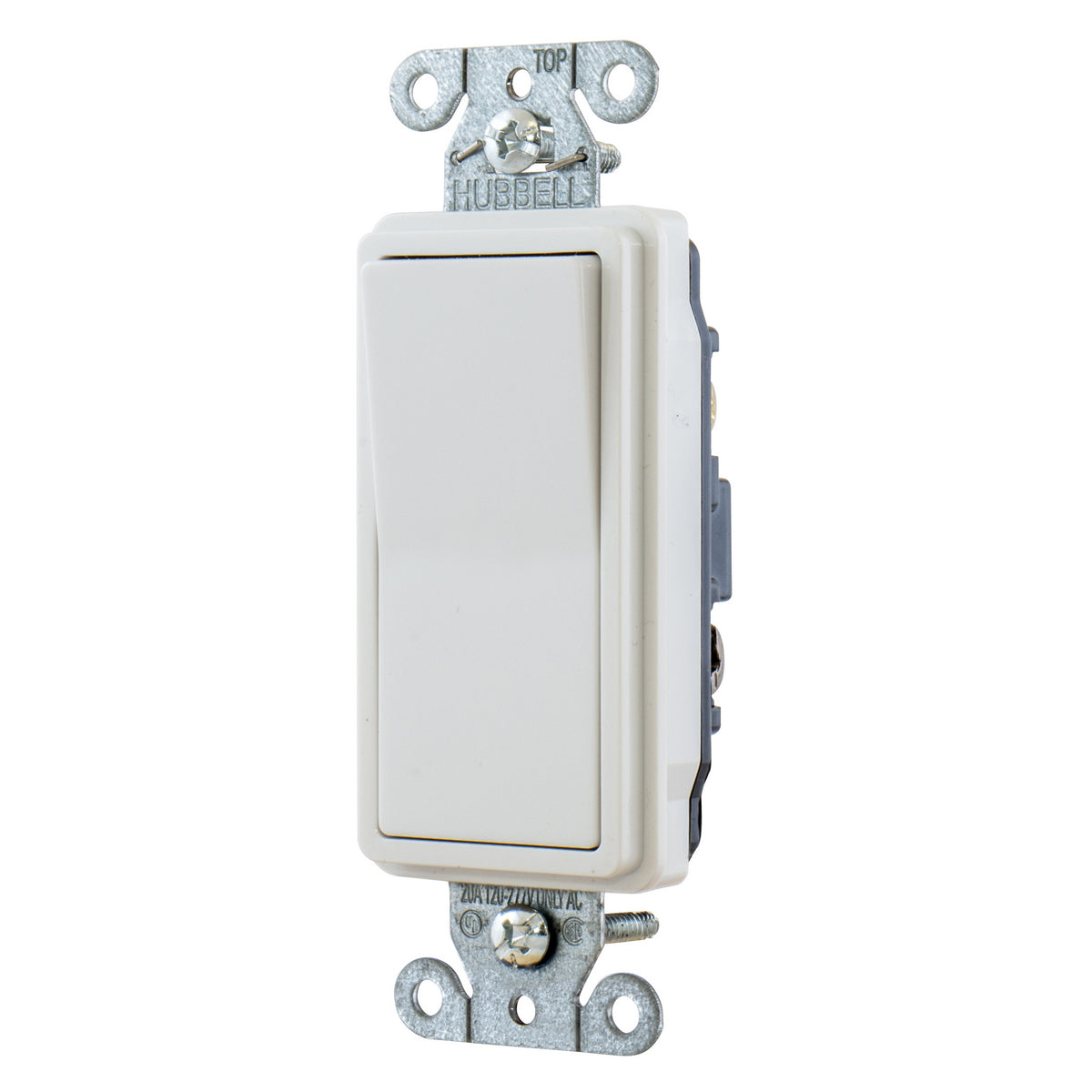

Hubbell Wiring Device-Kellems DS320W AC Switch 120 to 277 VAC 20 A 5540 W

Product Description

The Hubbell Wiring Device-Kellems DS320W is a standard general purpose AC switch. It operates within a voltage range of 120 to 277 VAC and is rated for 20 Amperes. This device is ideal for commercial heavy duty applications where reliability and ease of installation are important.

• Voltage Rating: 120 to 277 VAC
• Power Rating: 5540 Watts
• Operating Cycles: 50000

Product Highlights

The DS320W provides a rugged and chemical resistant nylon toggle, available in various colors suitable for different environments such as office spaces and retail areas.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Part Number: DS320W

Technical Specifications

• Contact Rating: 20 A at 120/277 VAC
• Configuration: 2 Position
• Number of Poles: 1
• Material: Thermoplastic
• Dimensions: 3.91 x 1.41 x 1.01 inches
• Environmental Conditions: -40 to 75 degrees C
