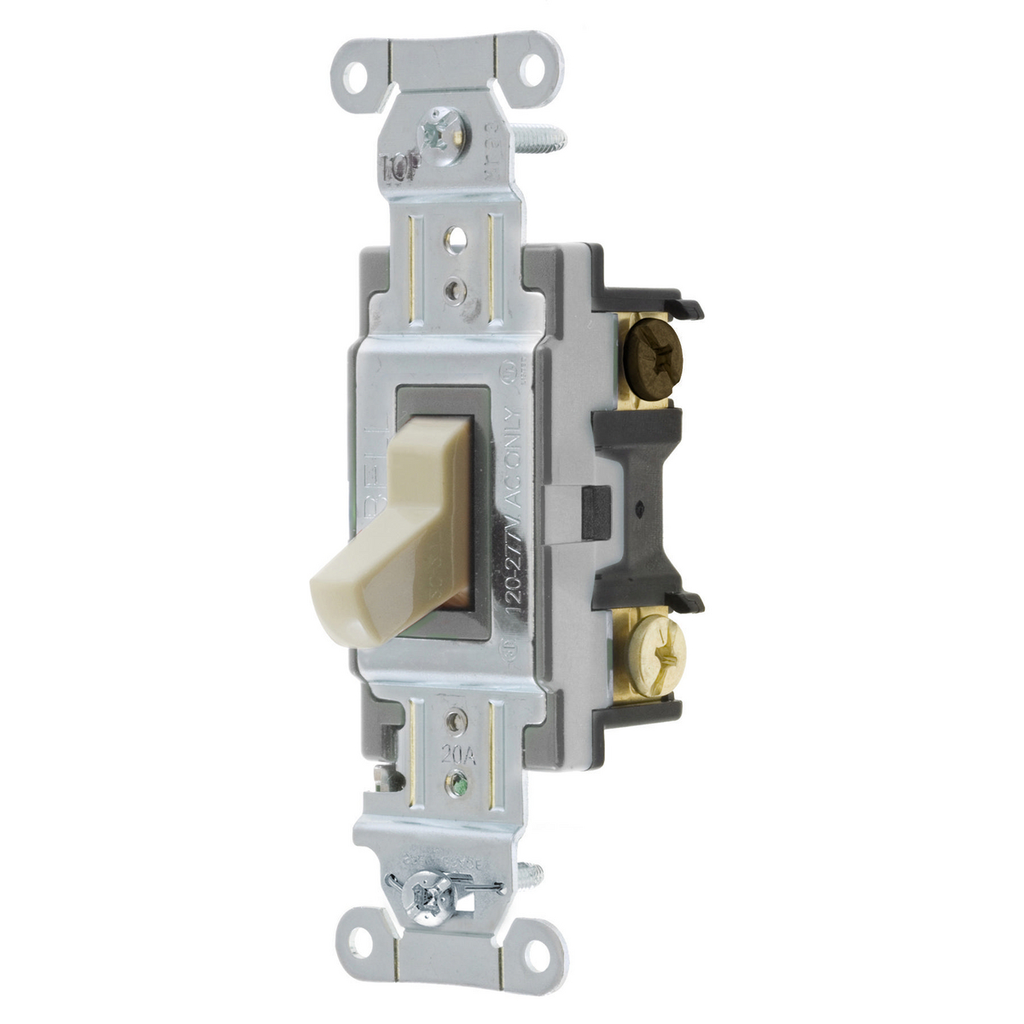

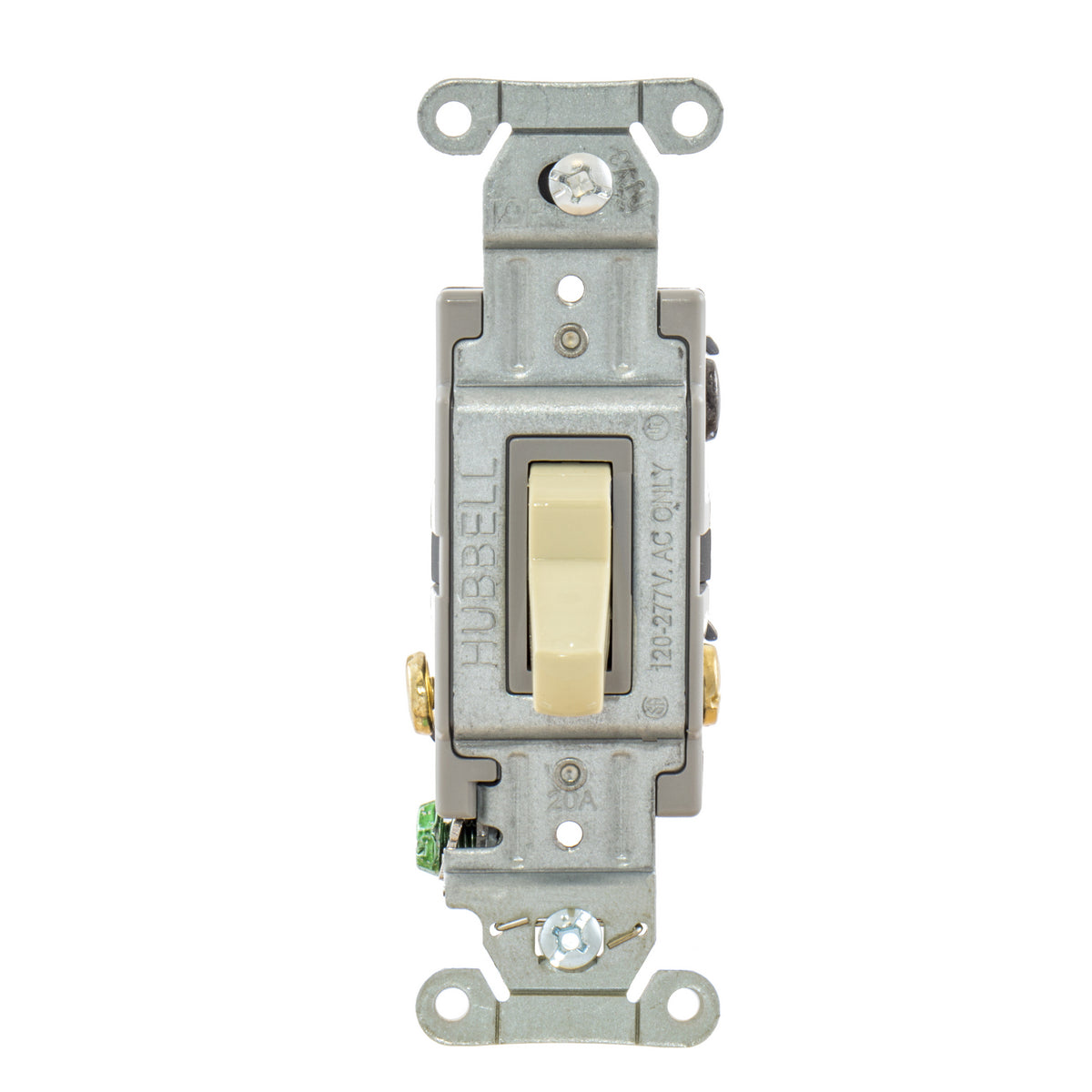

Hubbell Wiring Device-Kellems CSB320I 20 Amp 120/277 VAC 3-Way Ivory Toggle Switch

Product Description

The Hubbell CSB320I is a toggle switch designed for commercial applications. This 20 amp switch is rated for both 120 and 277 volts, making it versatile for various electrical needs. It features a three-way setup allowing for control from multiple locations. The toggle switch is available in ivory color, making it suitable for different interior designs.

• Switch type: 3-way
• Amperage rating: 20 Amps
• Voltage compatibility: 120-277 Volts

Product Highlights

This switch is back and side wired for ease of installation and supports wire sizes from 14 to 10 AWG.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Catalog Number: CSB320I
• Application: Commercial Spec Grade

Technical Specifications

• Weight: 0.15 lb
• Dimensions: 4.18 in x 1.49 in x 1.83 in
• Material: Nylon
• Number of Poles: 1 Pole
• Operating Temperature: -40 degrees C
• Environmental Conditions: Indoor Dry unless protected by additional means
• Contact Rating: Per UL 20
• Operating Cycles: 50000
